ABS Control Module

INSPECTION

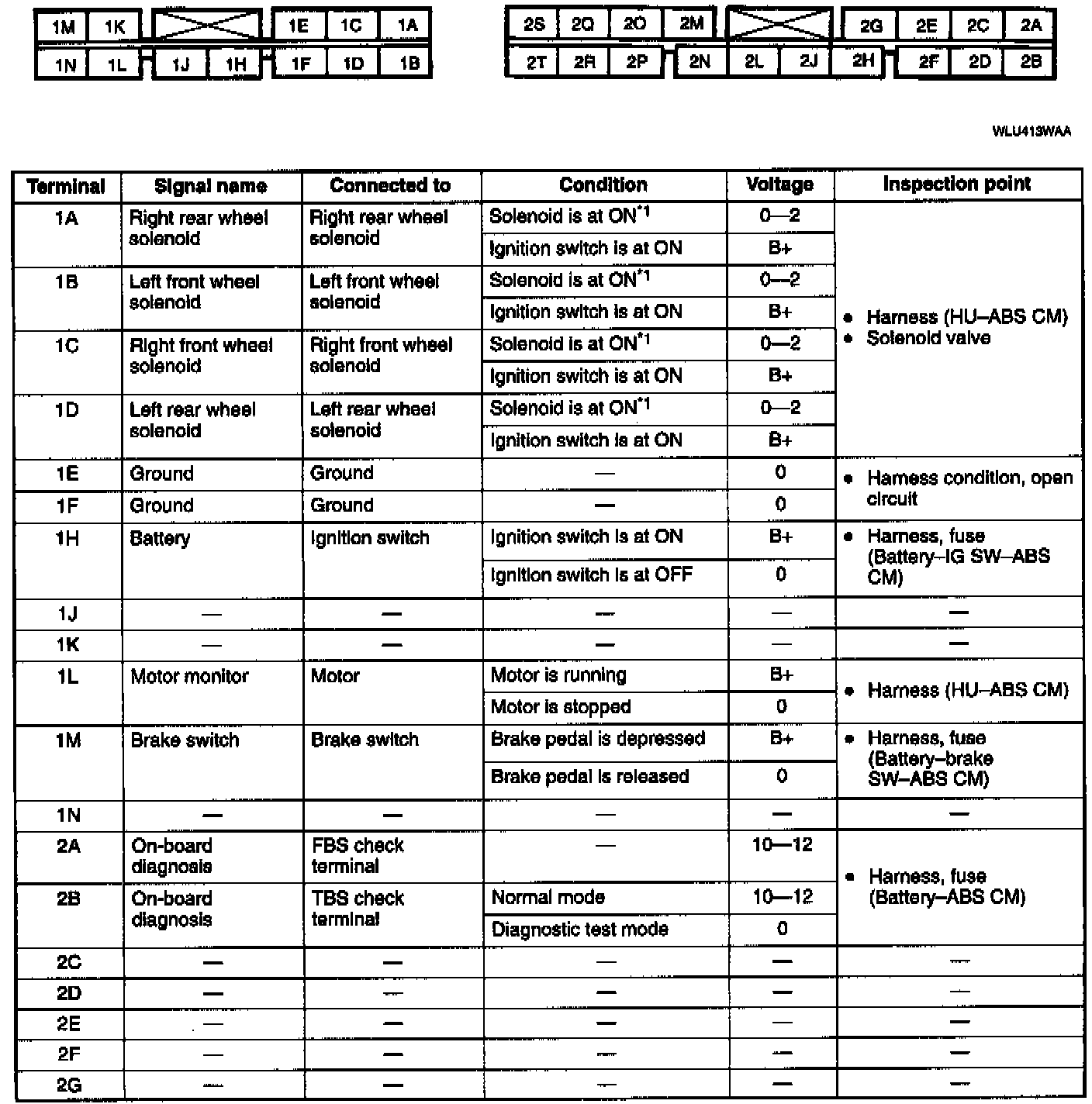

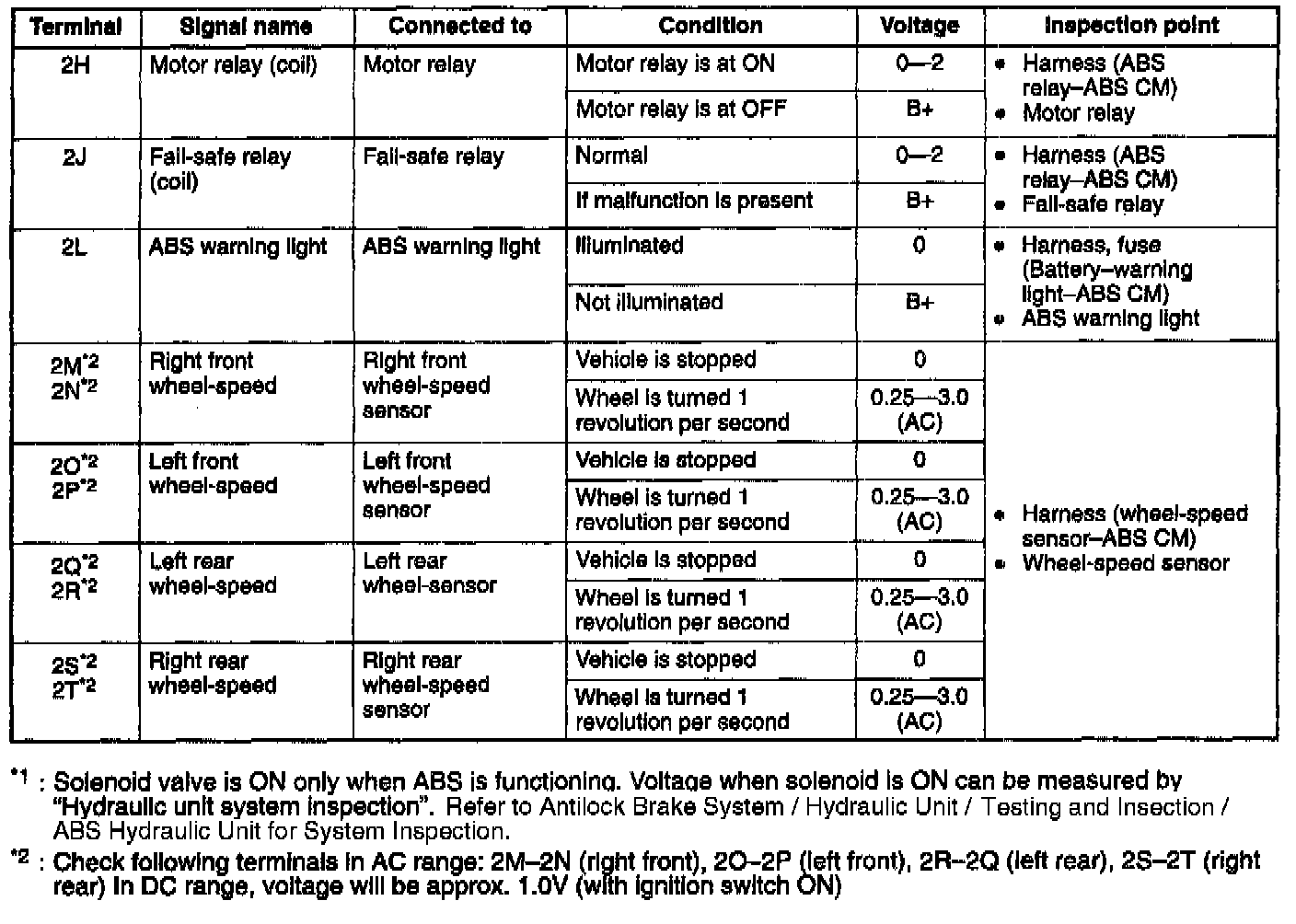

Terminal Voltage Chart (Reference Value)
^ (Ignition switch is at ON, and connector is connected unless indicated otherwise)

NOTE:
^ For vehicles with TCS refer to Traction Control System / Traction Control Module / Testing and Inspection / ABS/TCS Control Module Inspection.
