Spark Plug: Testing and Inspection

PURPOSE
By checking condition of the spark plugs, judgement whether problem is related to a specific cylinder or all cylinders is possible.

PROCEDURE
1. Remove the spark plug.
2. Check condition of the spark plug.




3. Go to appropriate troubleshooting chart refering to the list.

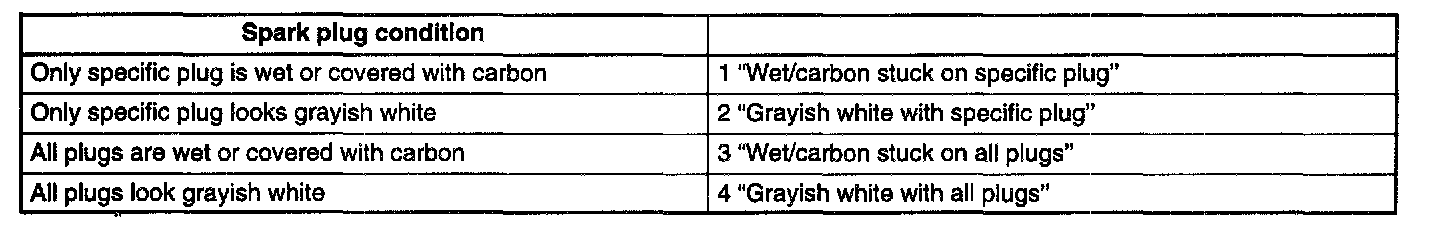

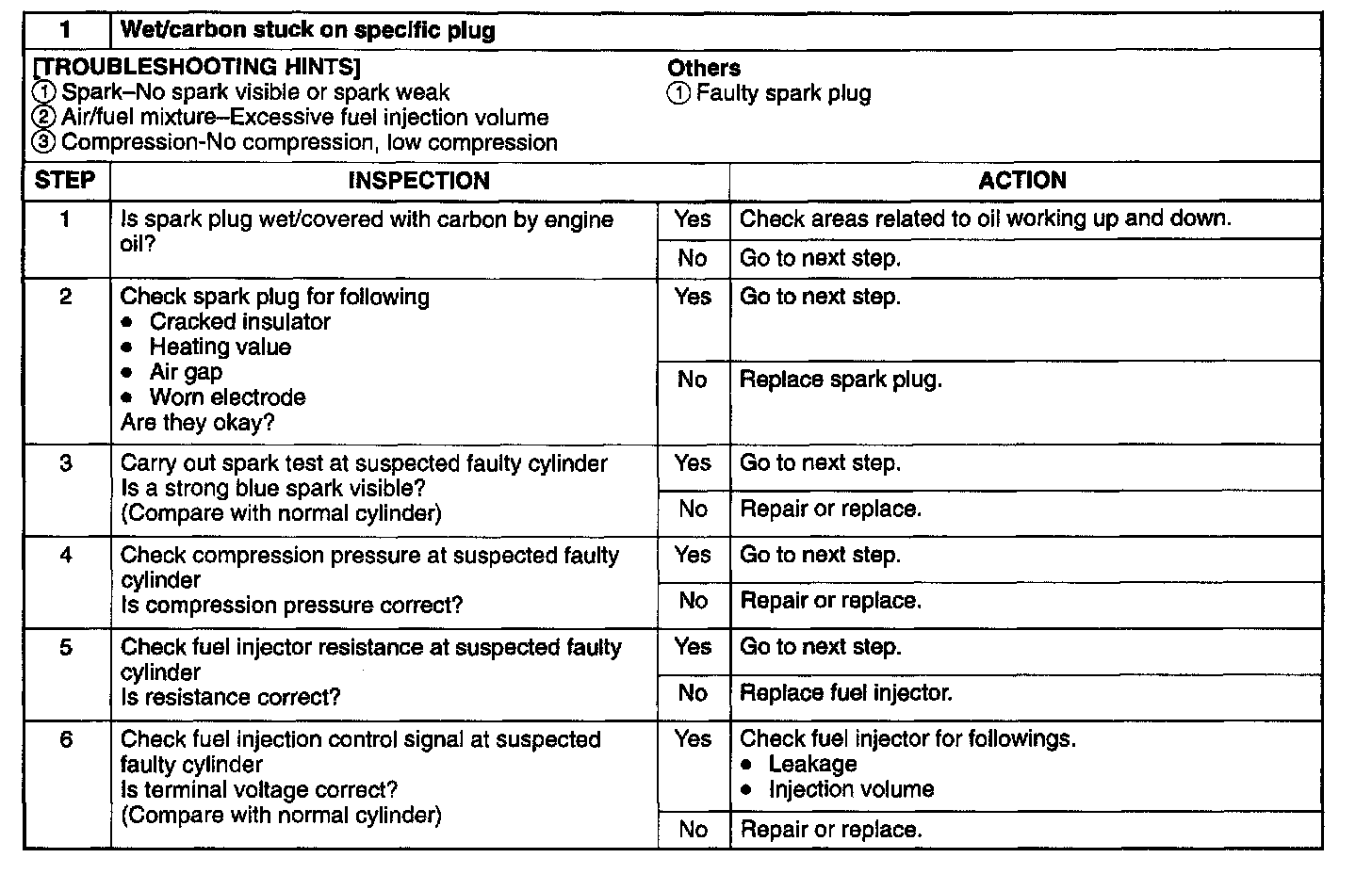

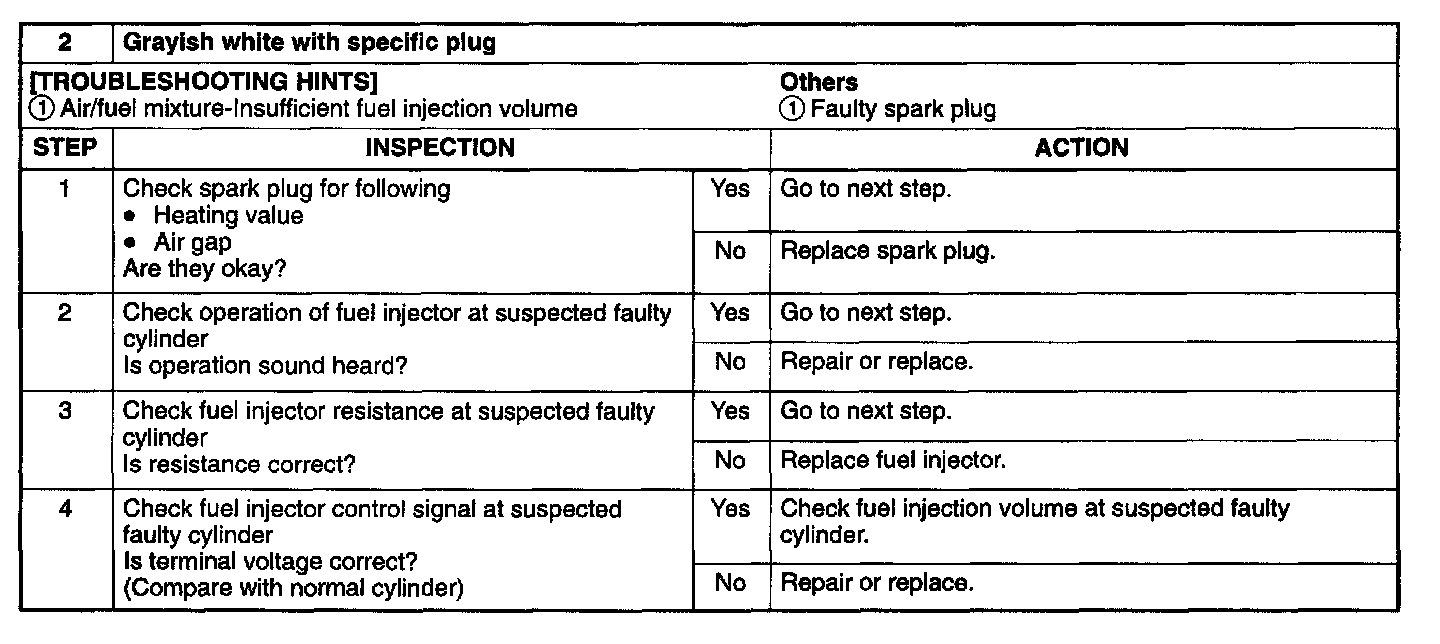

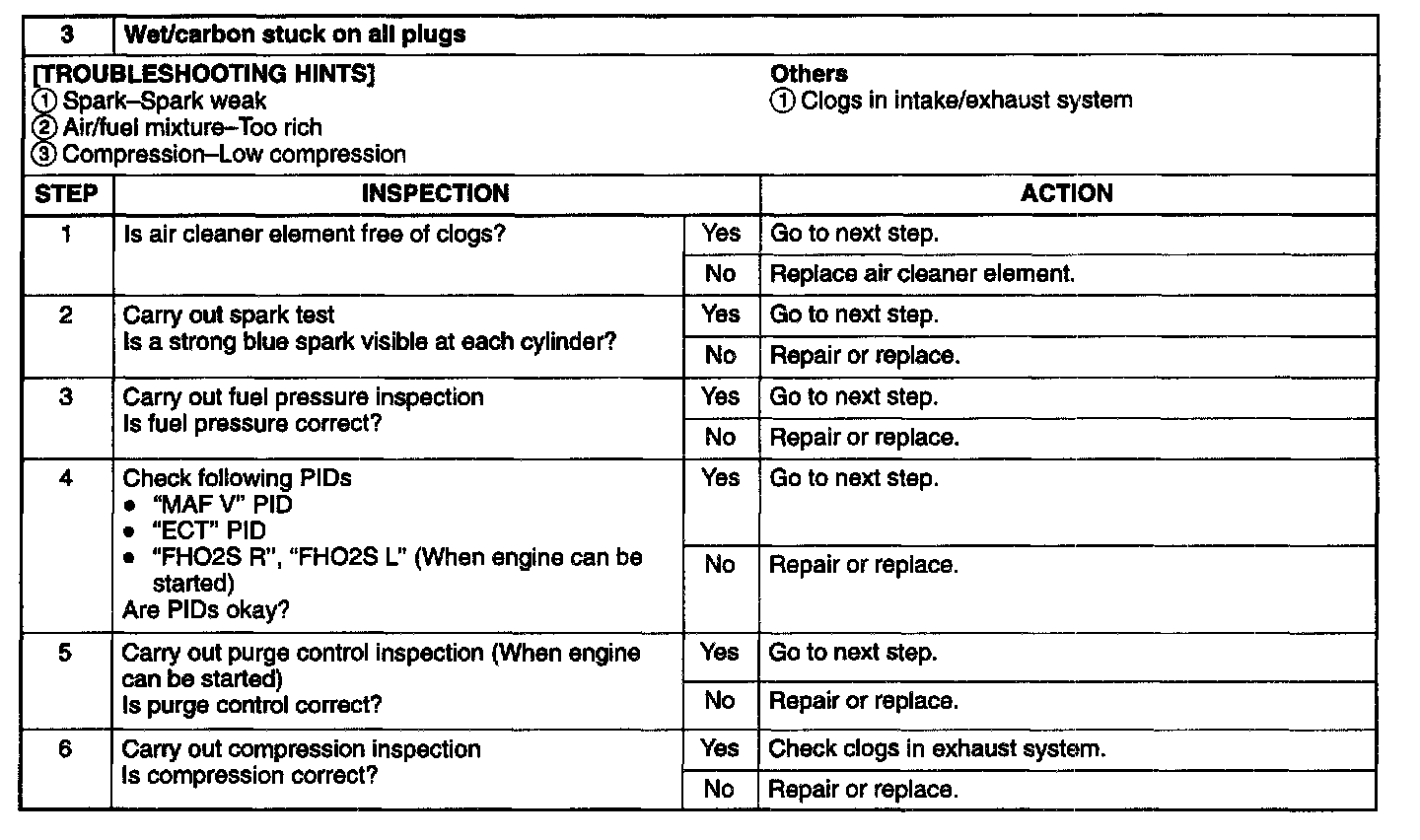

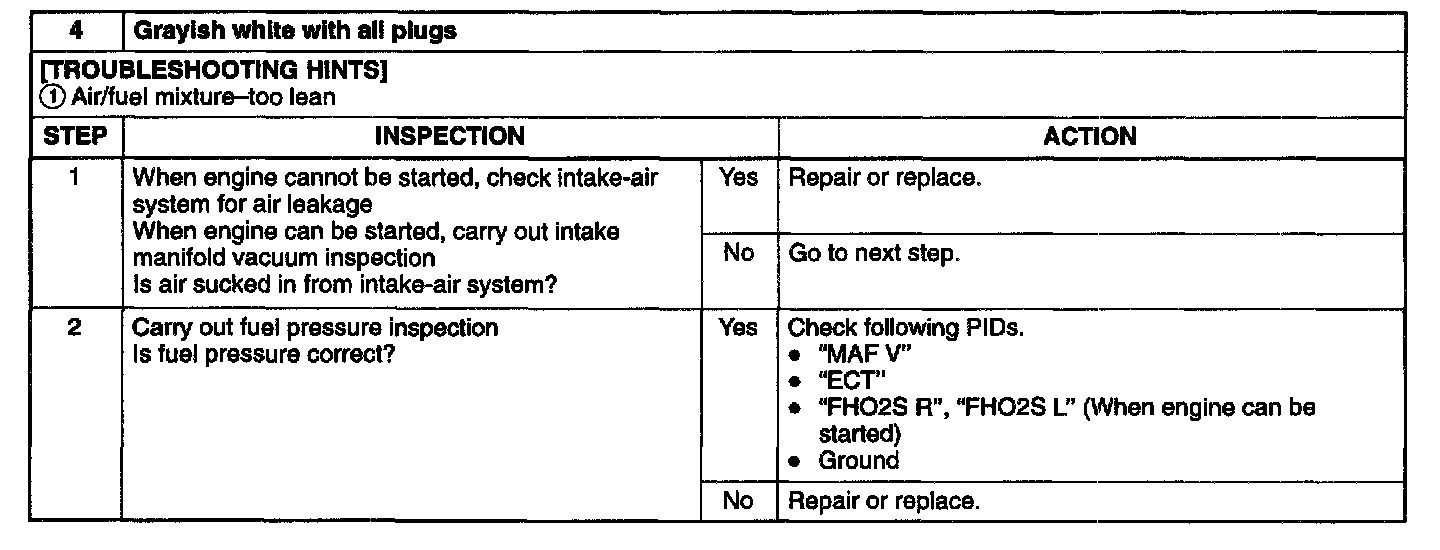

TROUBLESHOOTING CHARTS
