System Diagram

Alignment Marks:

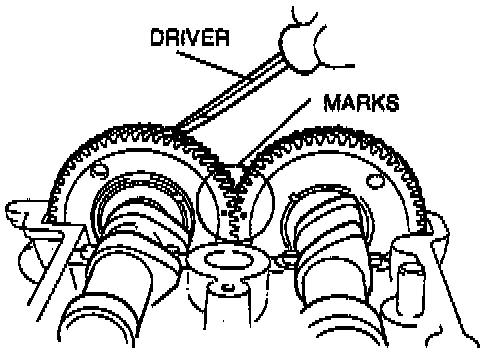

Install the camshafts so that the intake camshaft gear mark and exhaust camshaft gear mark align.

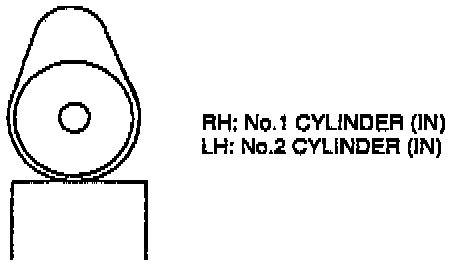

Adjust the friction gear position with a screwdriver so that the tappets are not lifted by the cam lobes.(Intake side cam lobes of the No.1 cylinder (RH) and No.2 cylinder (LH) face straight up.)
