Engine Control System, EC-at Control System
Engine Control System, EC-at Control System

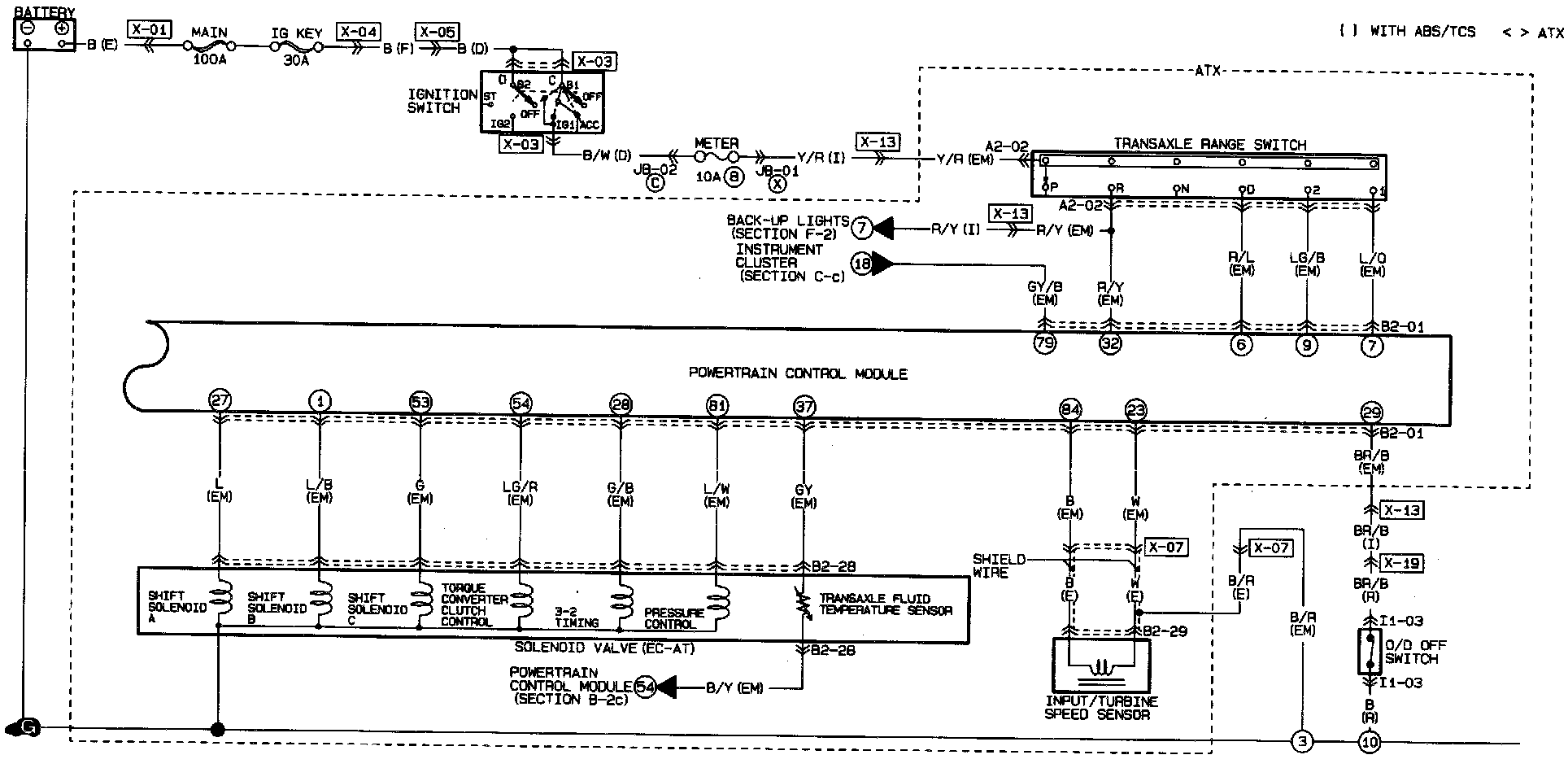

Engine Control System (KL), EC-AT Control System (KL):
