Home >> Mazda >> 1998 >> 626 DX L4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> I-4B

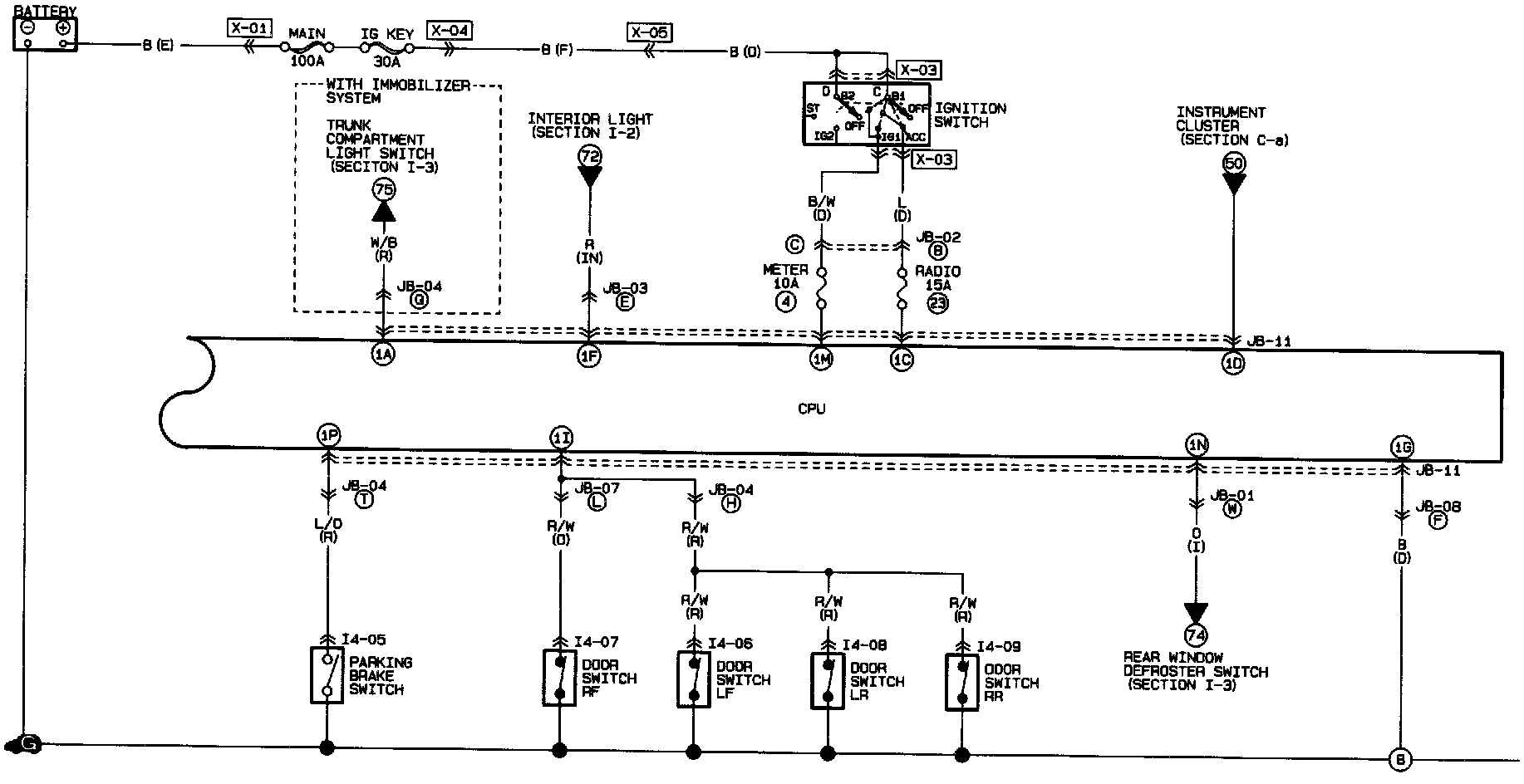

I-4B

Central Processing Unit (CPU):
