Control Assembly: Service and Repair

Removal / Installation
1. Remove the column cover and meter hood.
2. Remove the hazard warning switch.

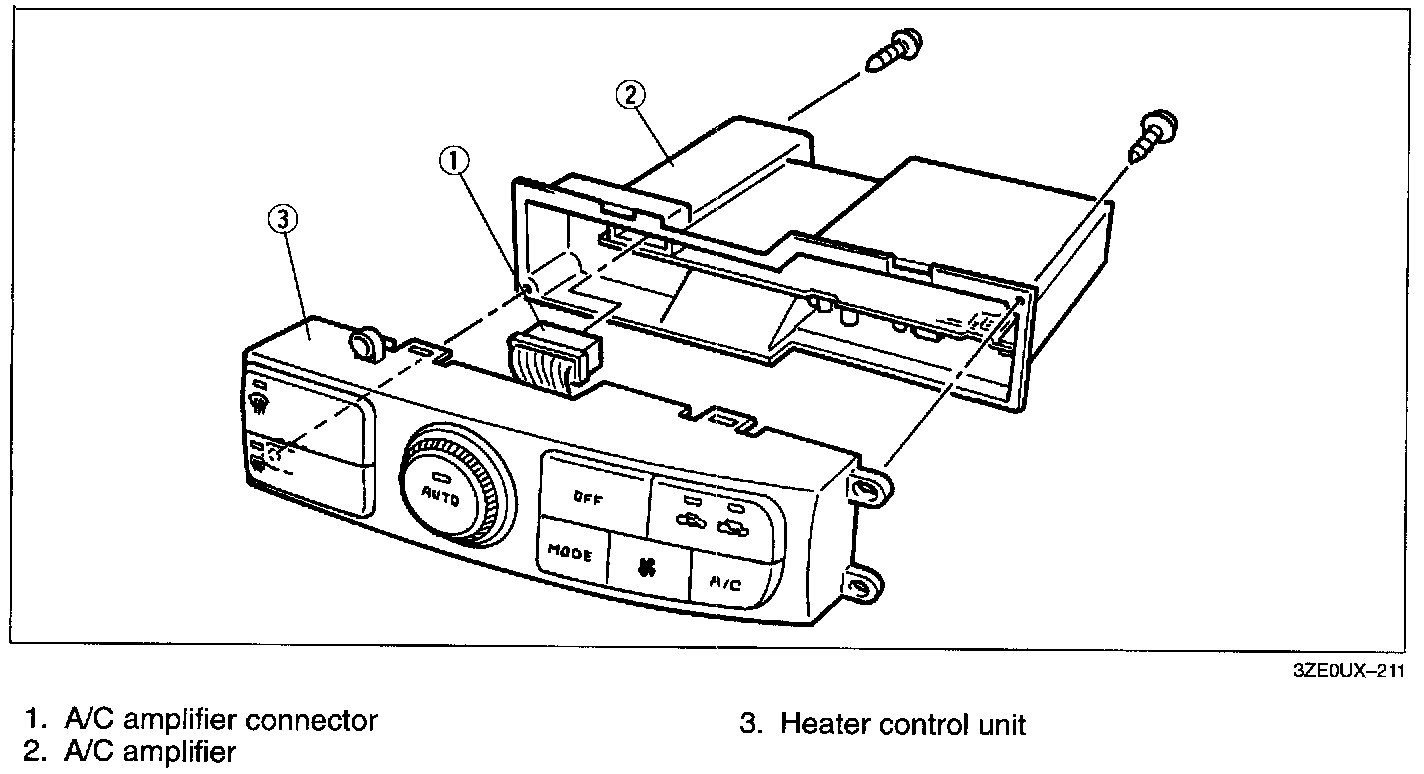

3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.




Disassembly / Assembly
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
