Home >> Mazda >> 1997 >> Millenia V6-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module

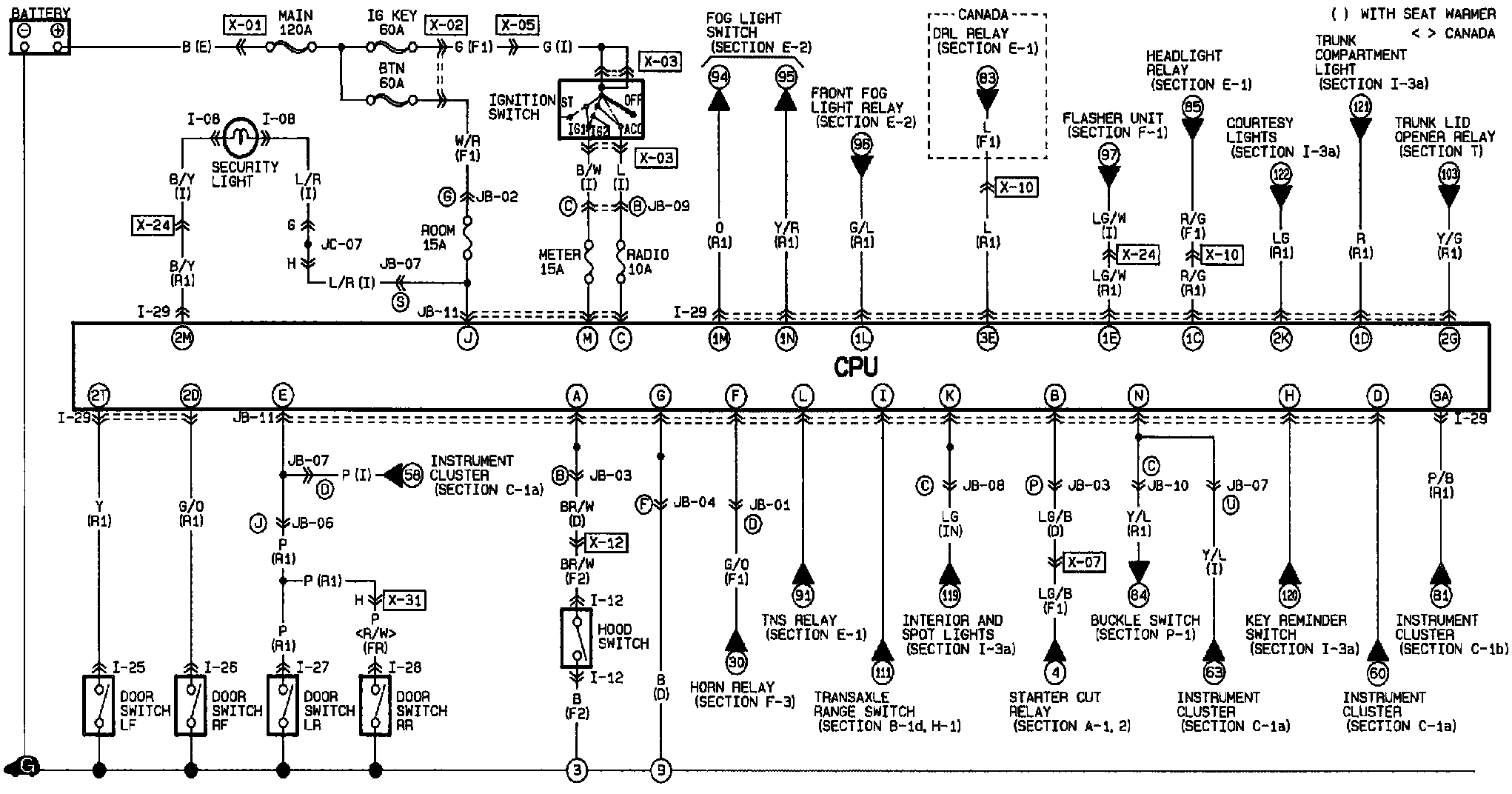

Central Control Module

CPU, Theft-Deterrent System:
