Ignition Switch: Testing and Inspection

Inspection
1. Remove the column cover.
2. Disconnect the ignition switch connector.

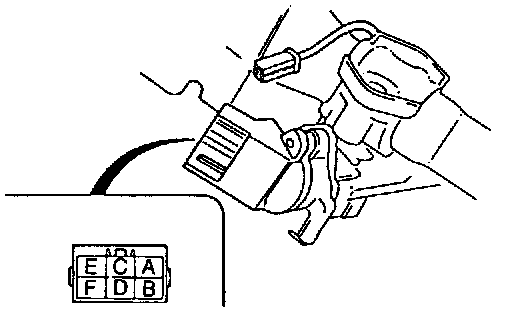

Terminal Identification:

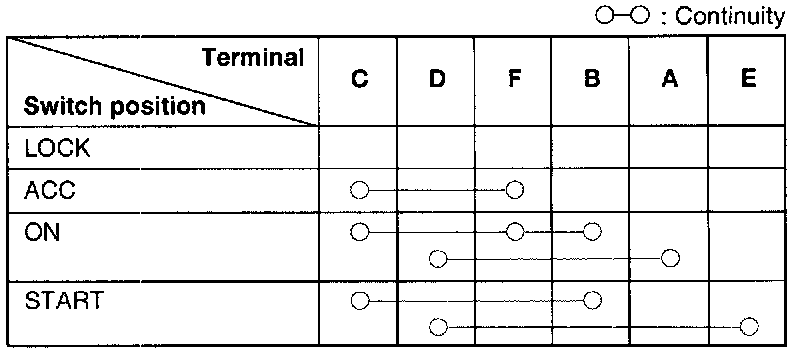

Reference:

3. Check for continuity between the terminals of the ignition switch.
4. If not as specified, replace the ignition switch.
