Home >> Mazda >> 1997 >> MX-6 L4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Interior Lighting Module

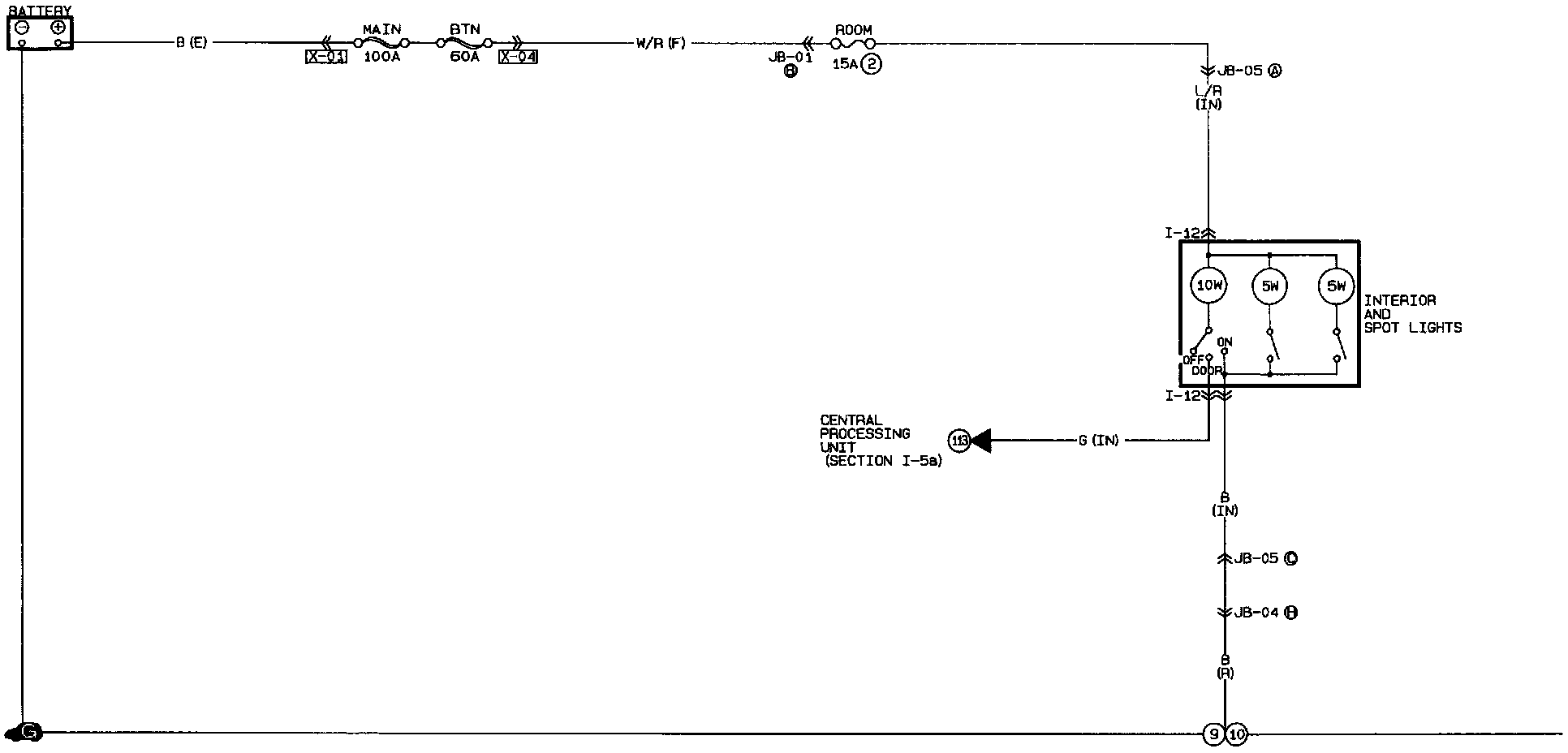

Interior Lighting Module

Courtesy Lights, Interior Lights, Spot Lights:
