Home >> Mazda >> 1997 >> MX-6 L4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module

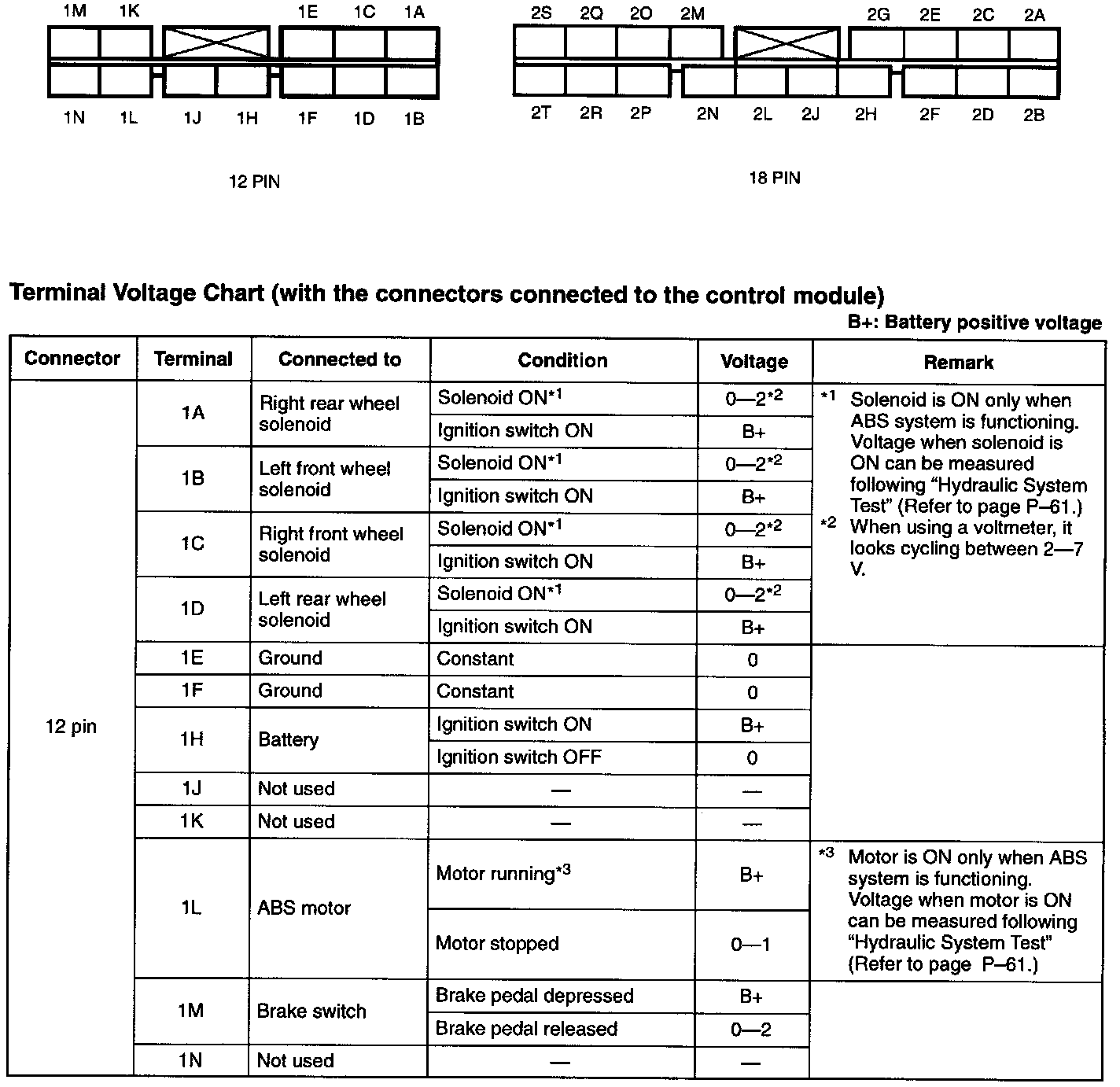

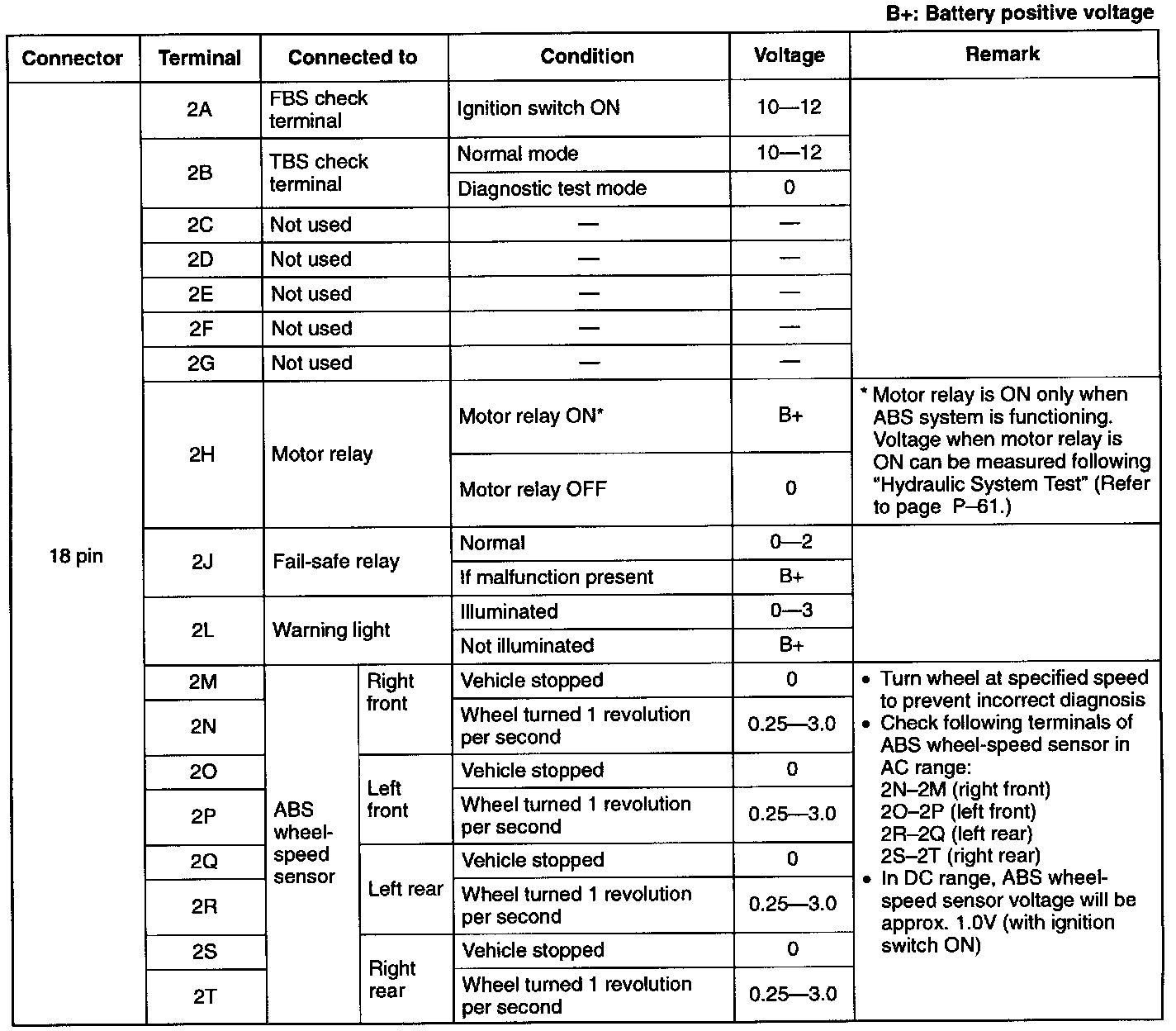

Electronic Brake Control Module
