Cruise Control Servo: Testing and Inspection
Inspection
1. Disconnect the cruise actuator connector.

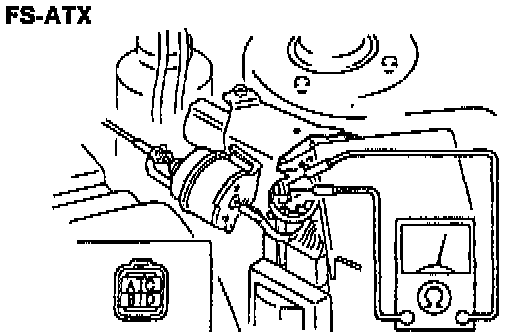

Ohmmeter Connection:

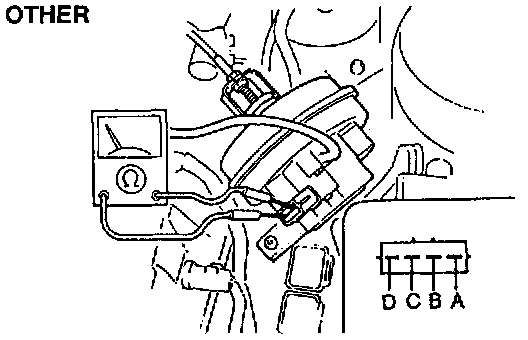

Ohmmeter Connection:

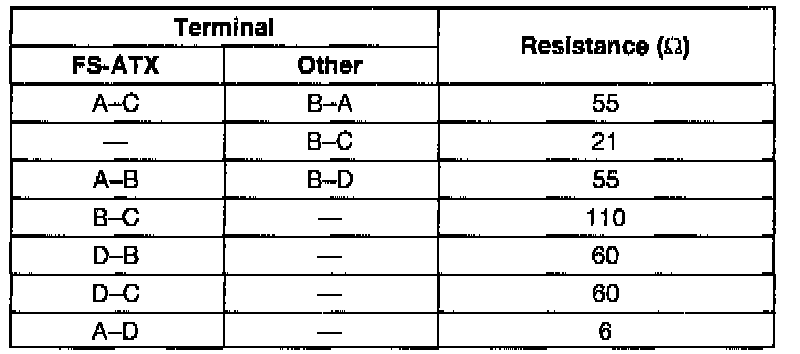

Reference:
2. Measure the cruise actuator resistance.
3. If not as specified, replace the cruise actuator.
Inspection
1. Disconnect the cruise actuator connector.
2. Measure the cruise actuator resistance.
3. If not as specified, replace the cruise actuator.
