Home >> Mazda >> 1997 >> MPV ES 4WD V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> System Diagram >> Front

Front

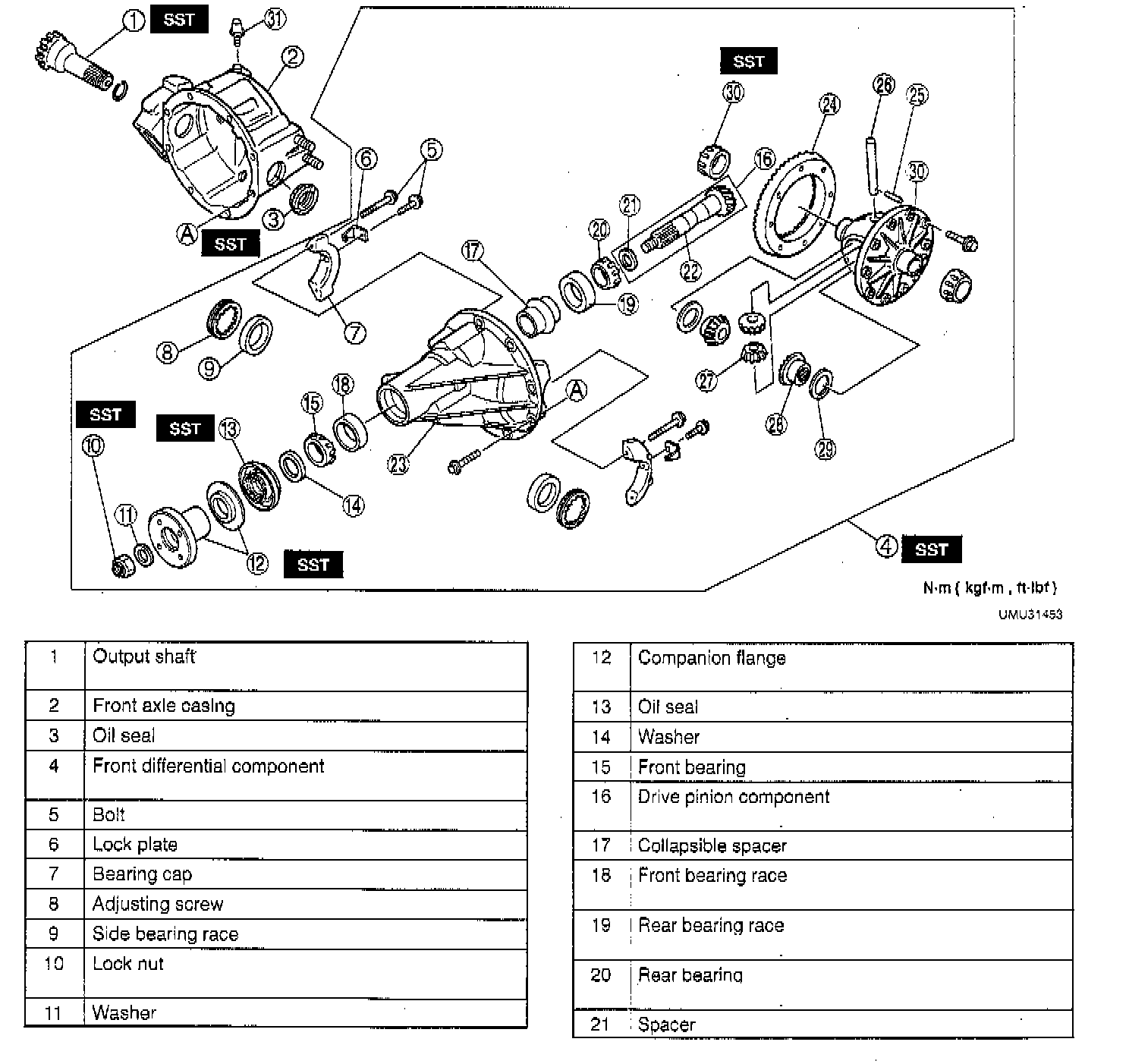

Part 1 Of 2:

Part 2 Of 2:
