Engine Control Module

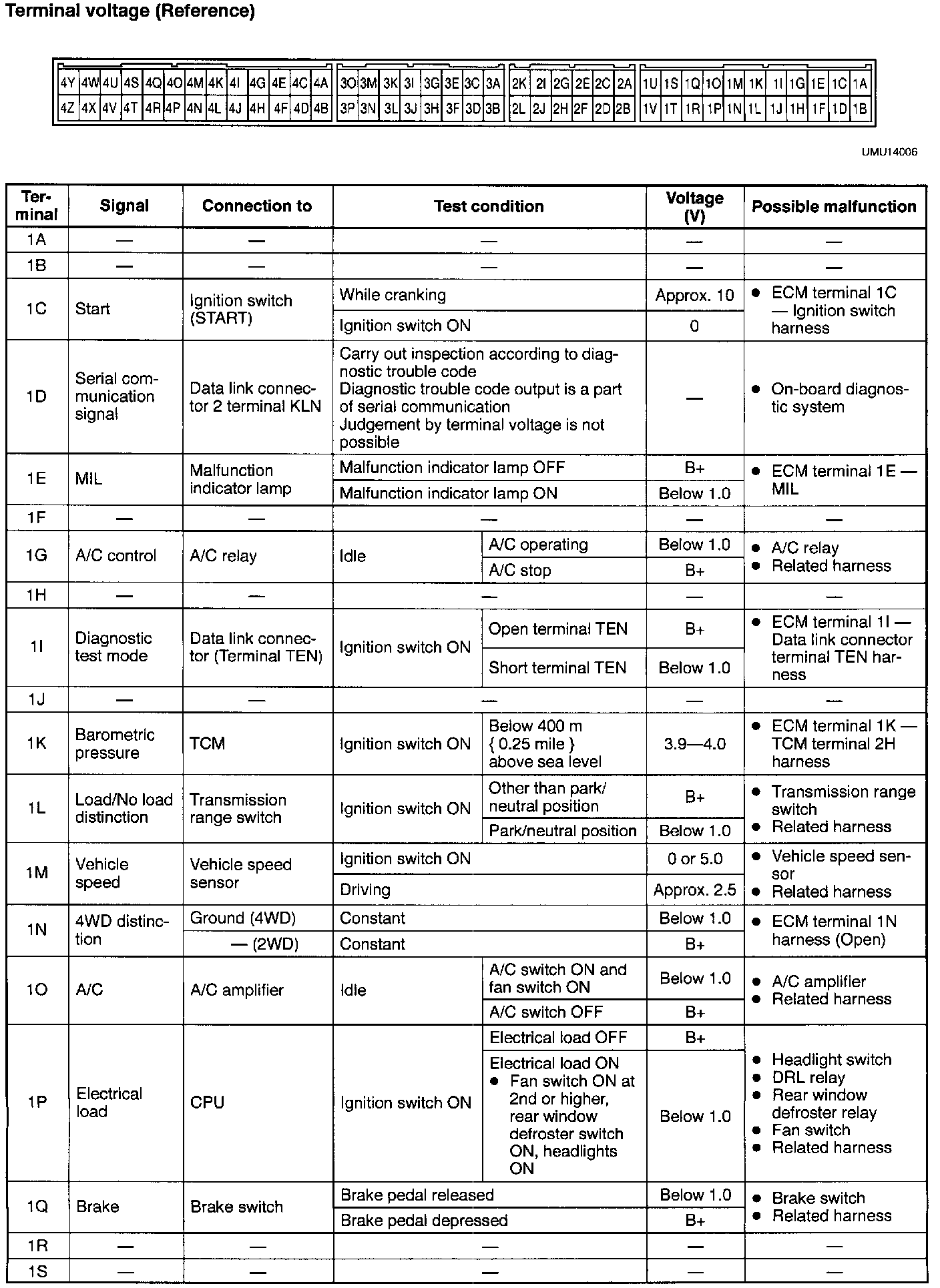

PCM Terminal Voltage Reference Chart Part 1 Of 4:




Part 1 of 4

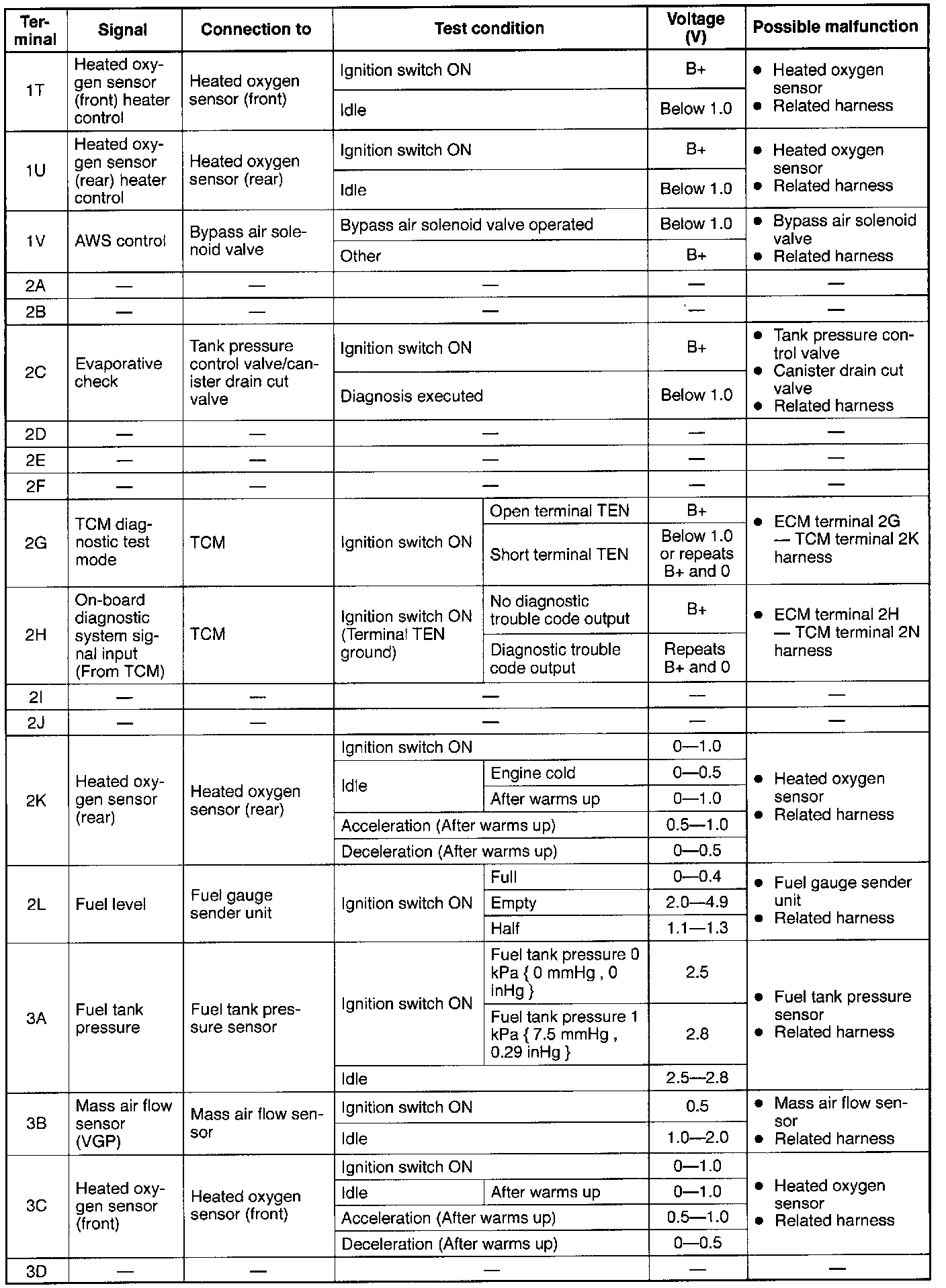

PCM Terminal Voltage Reference Chart Part 2 Of 4:




Part 2 of 4

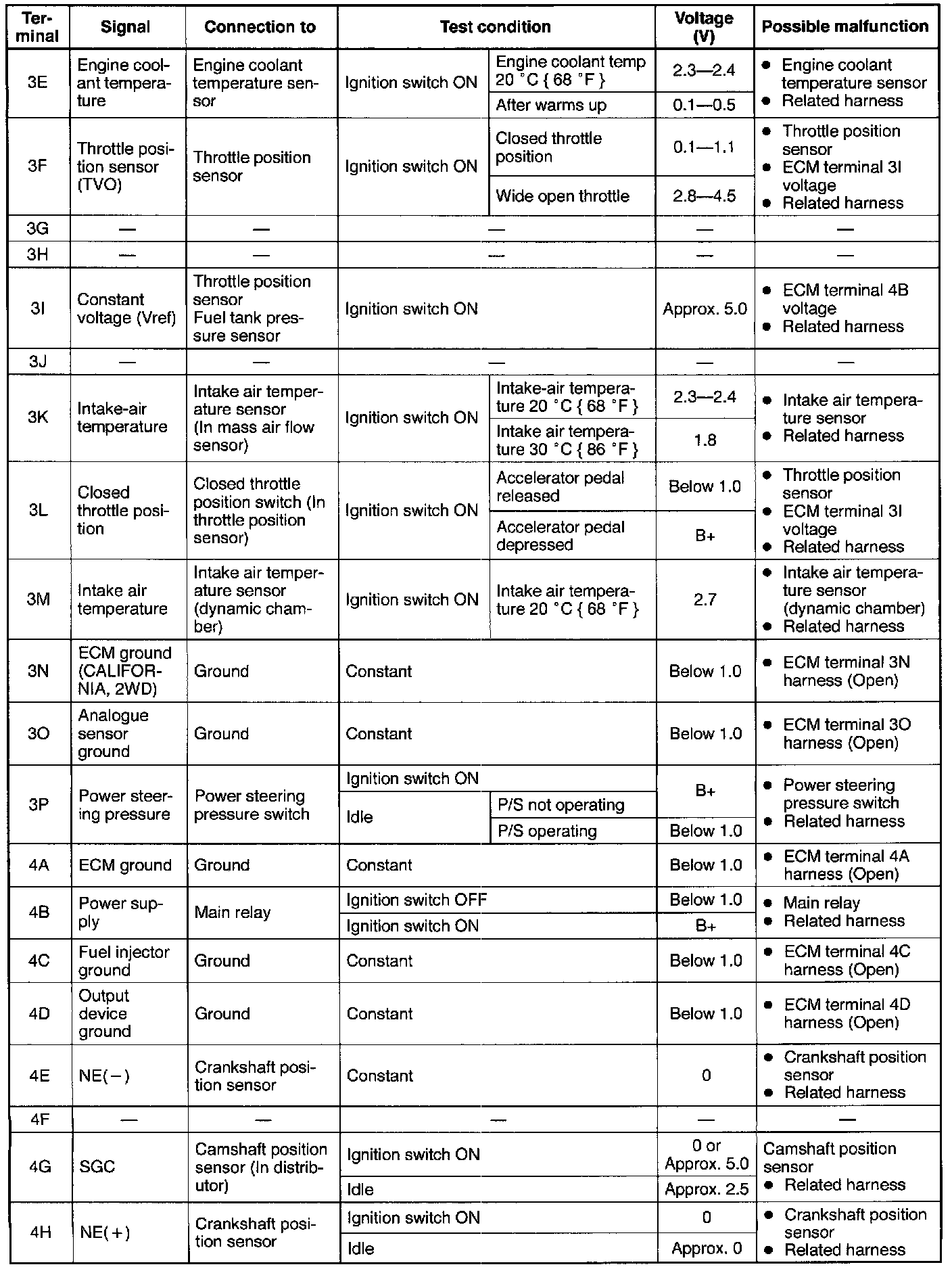

PCM Terminal Voltage Reference Chart Part 3 Of 4:




Part 3 of 4

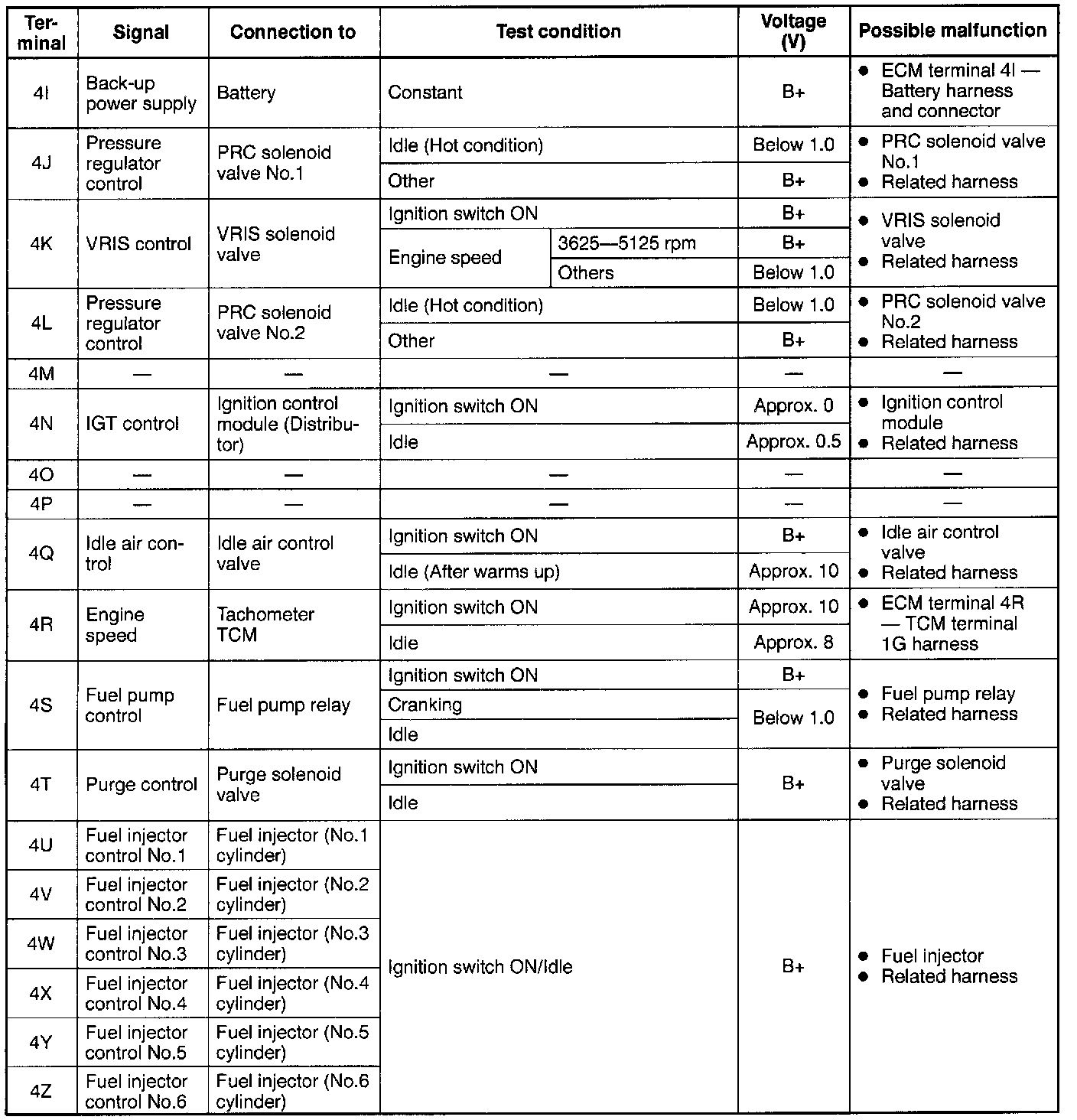

PCM Terminal Voltage Reference Chart Part 4 Of 4:




Part 4 of 4
