Disassembly and Assembly

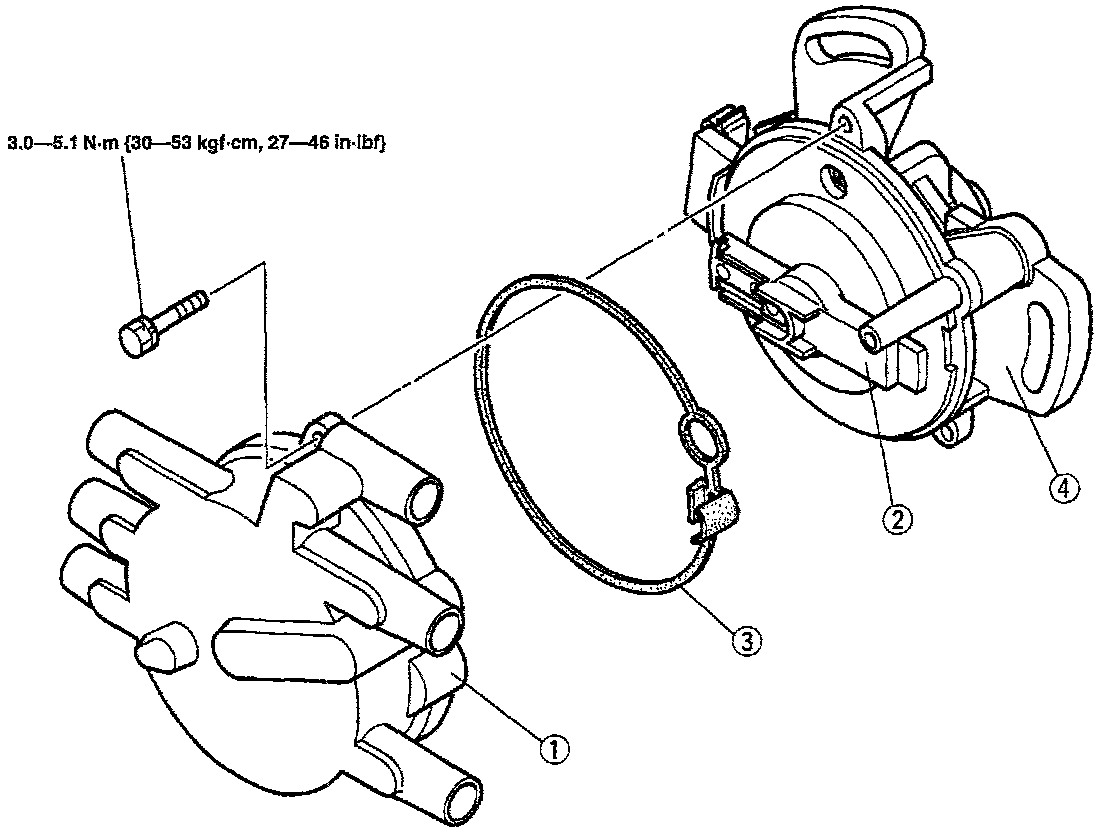

DISASSEMBLY / ASSEMBLY
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.

Distributor KL:




1. Cap
2. Rotor
3. Packing
4. Distributor

NOTE: (Incorporates camshaft position sensor, ignition control module, and ignition coil).
