LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
1997
>>
626 ES V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Emission Control Systems
Emission Control Systems
Emission Control Systems (Rear):

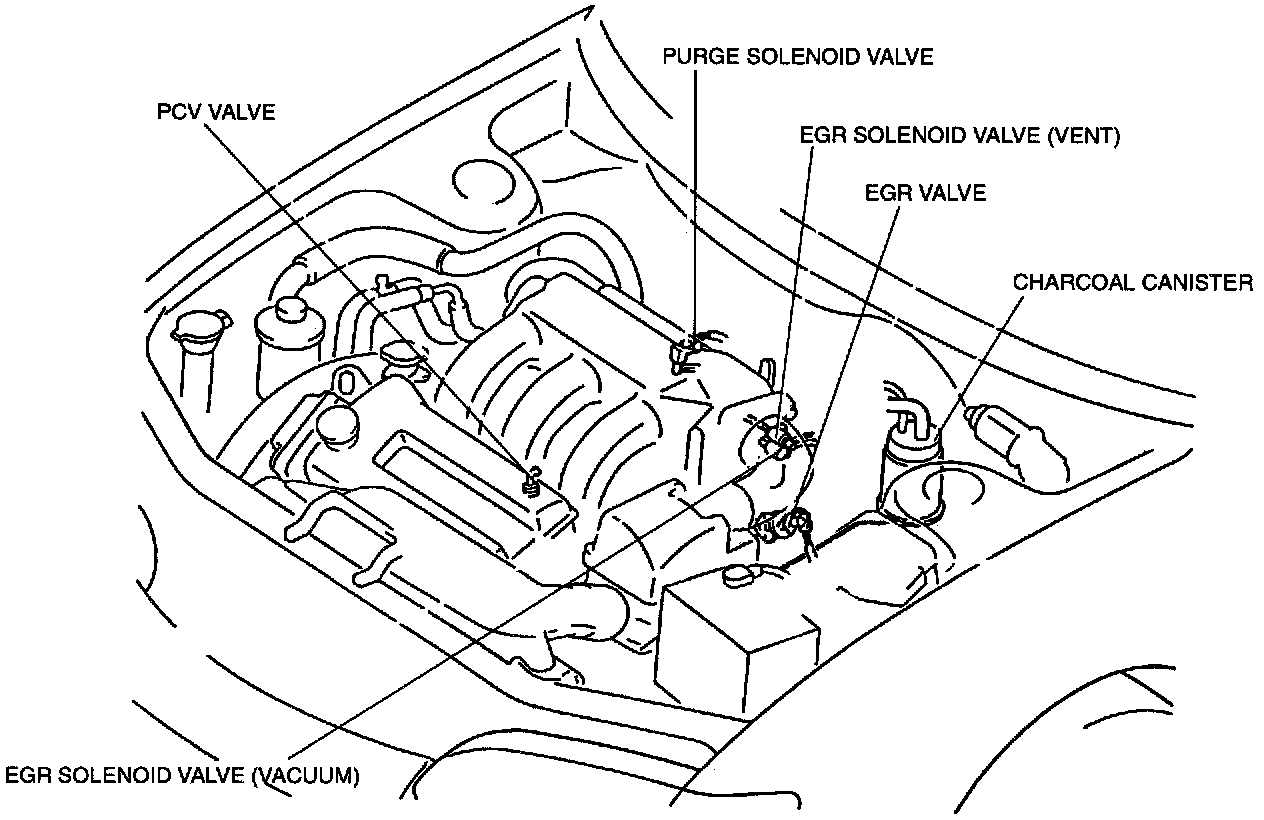

Emission Control Systems (Front):
