Mazda
>>
1997
>>
626 ES V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>

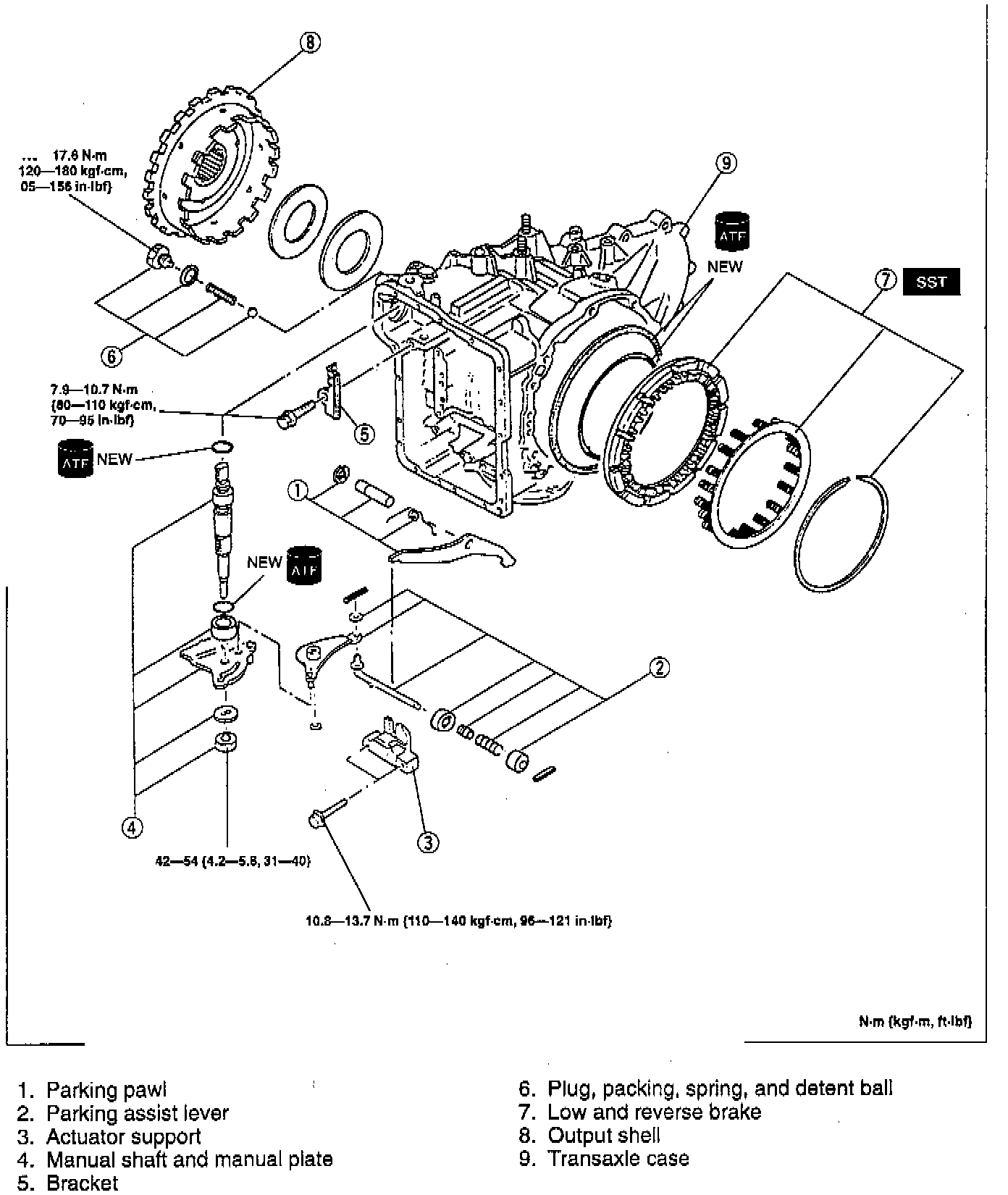

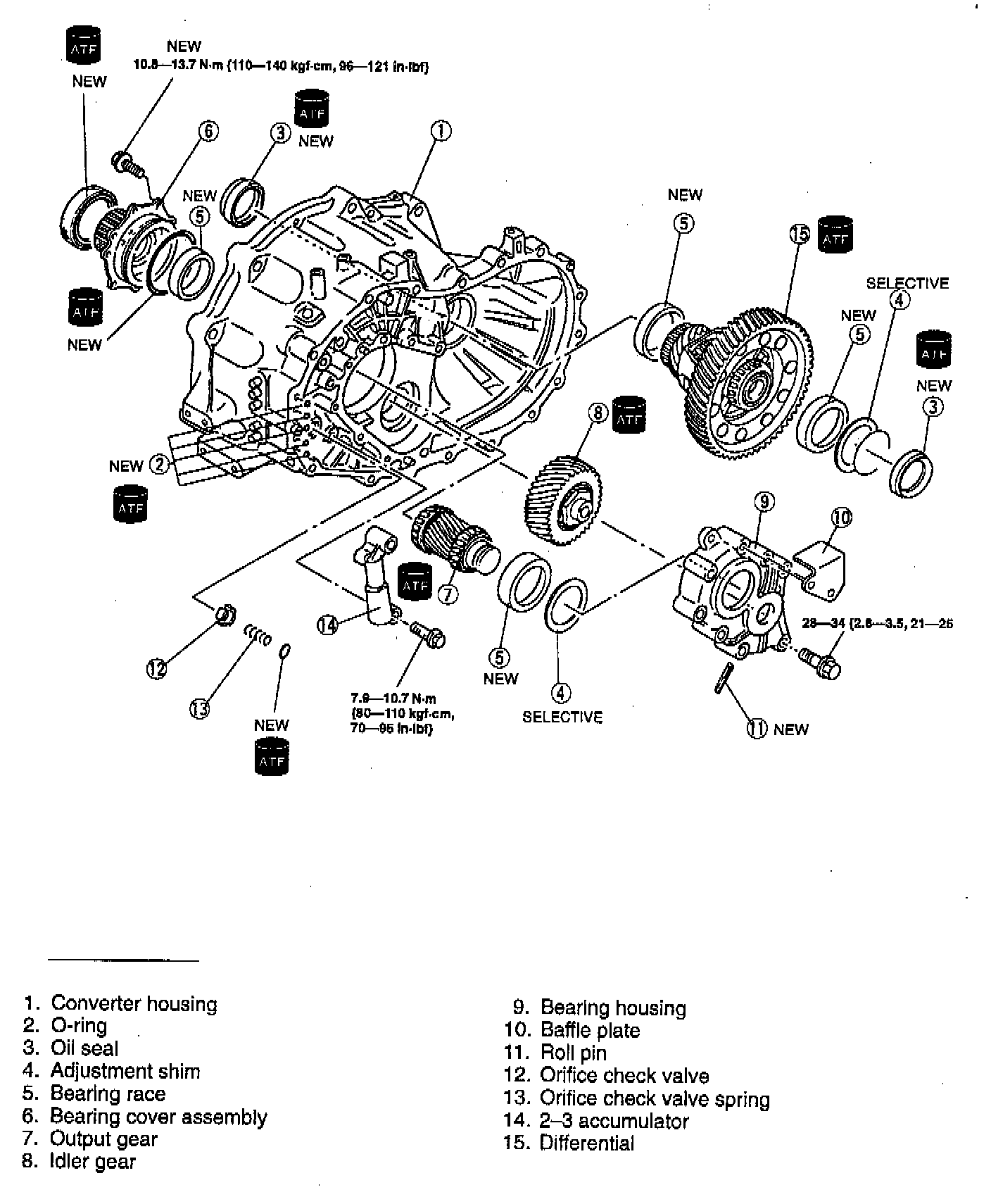

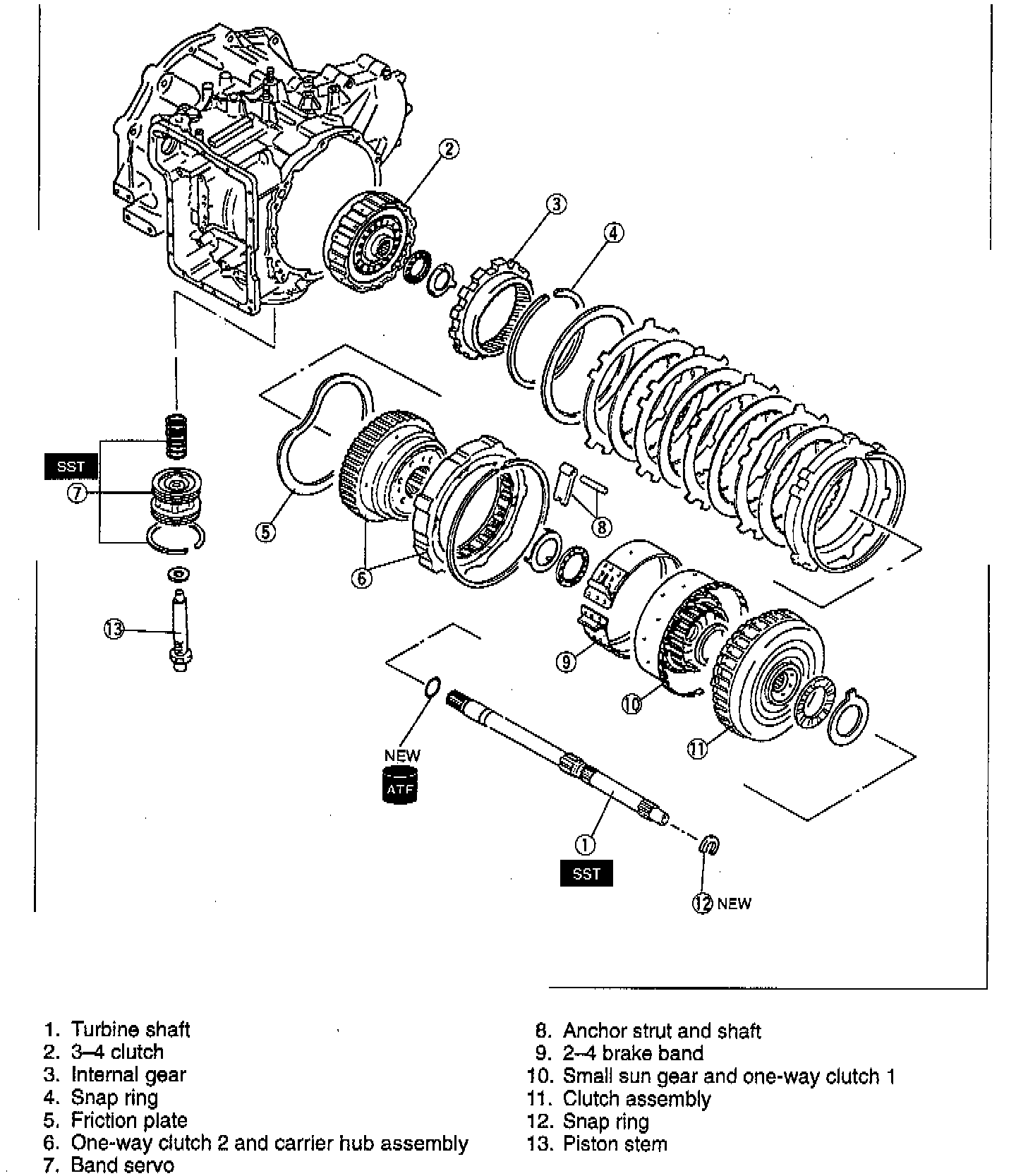

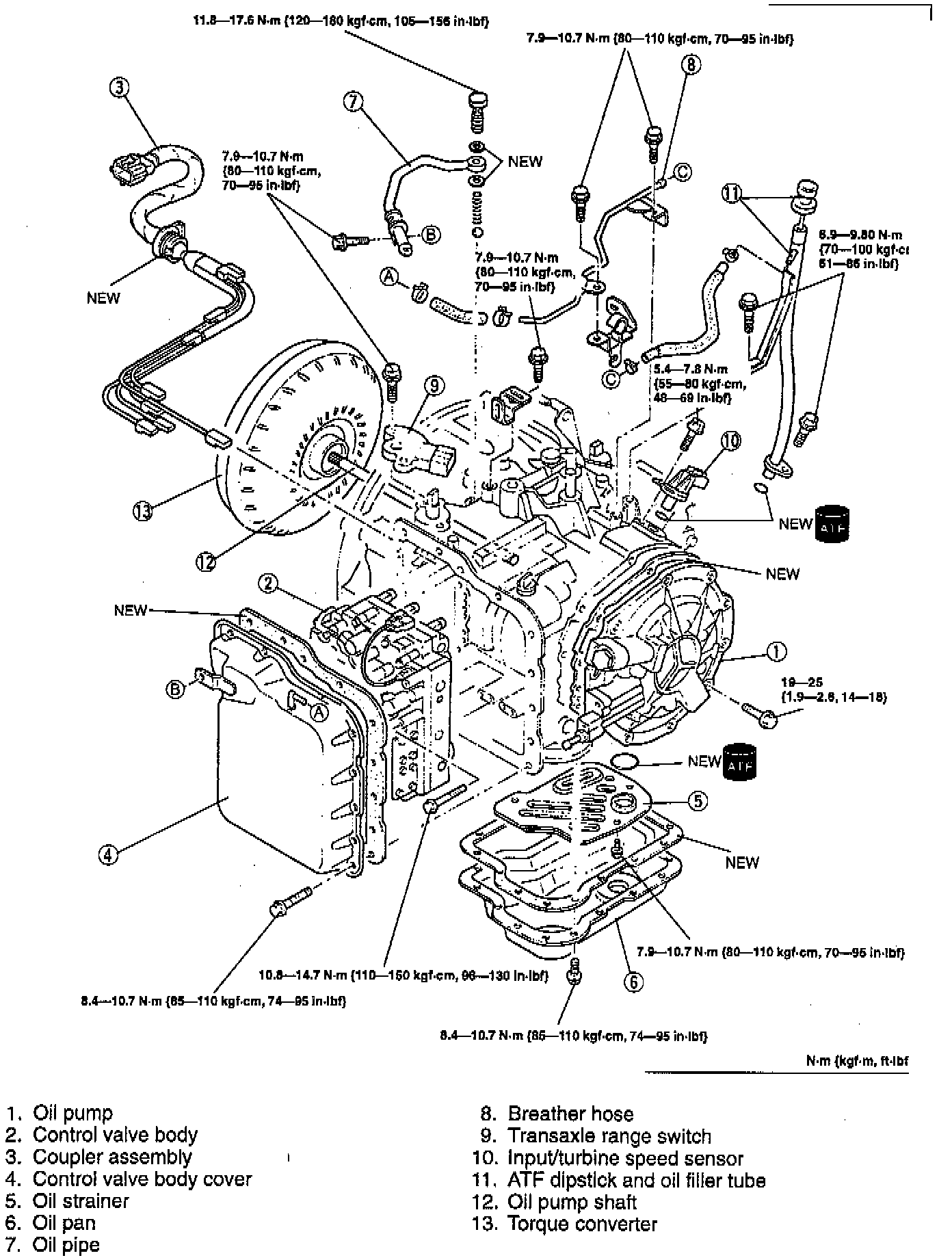

Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
