Home
>>
Mazda
>>
1997
>>
626 ES V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

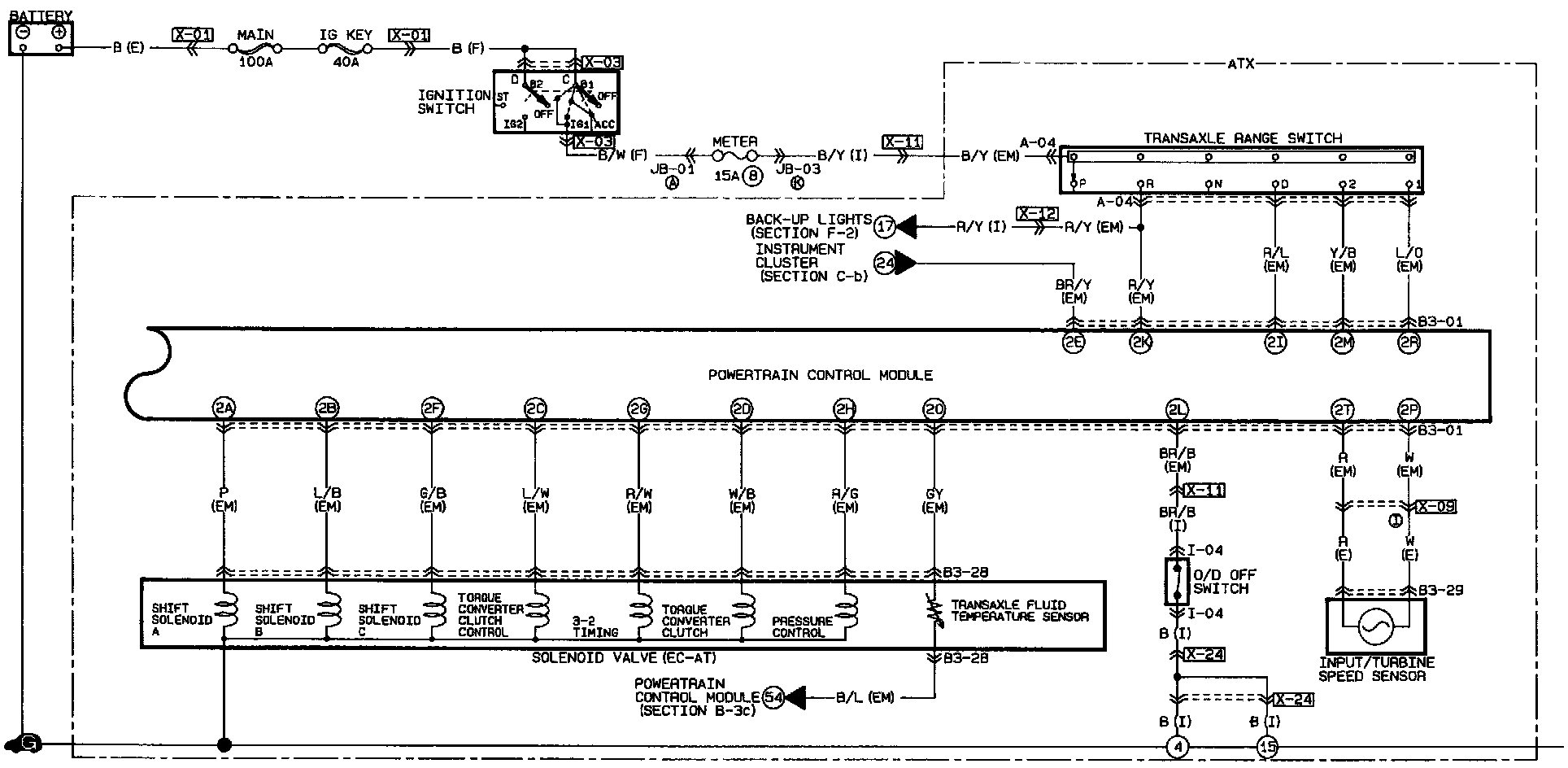

Engine Control System, EC-AT Control System
Engine Control System, EC-AT Control System
Engine Control System, EC-AT Control System:
