Control Module: Testing and Inspection

INSPECTION

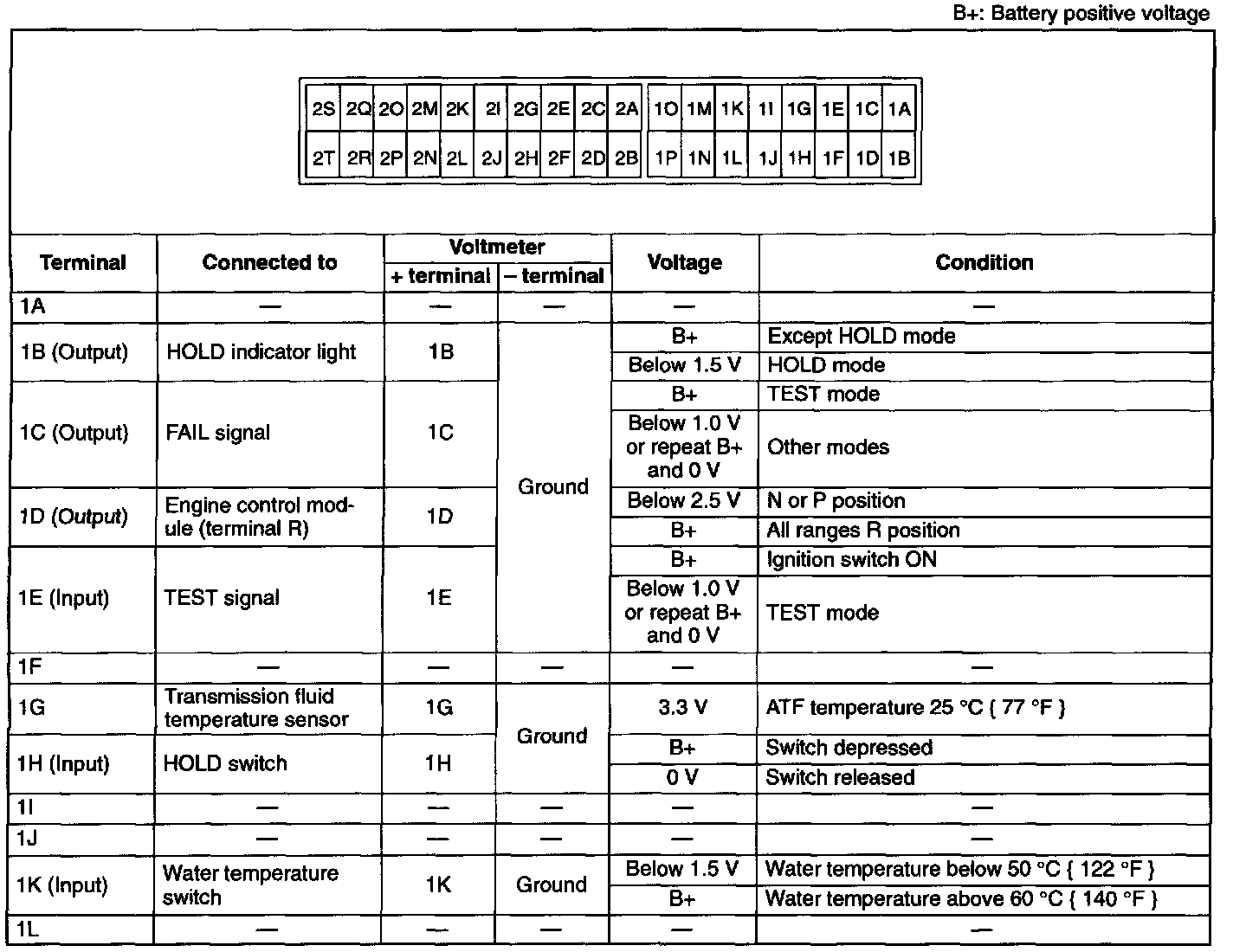

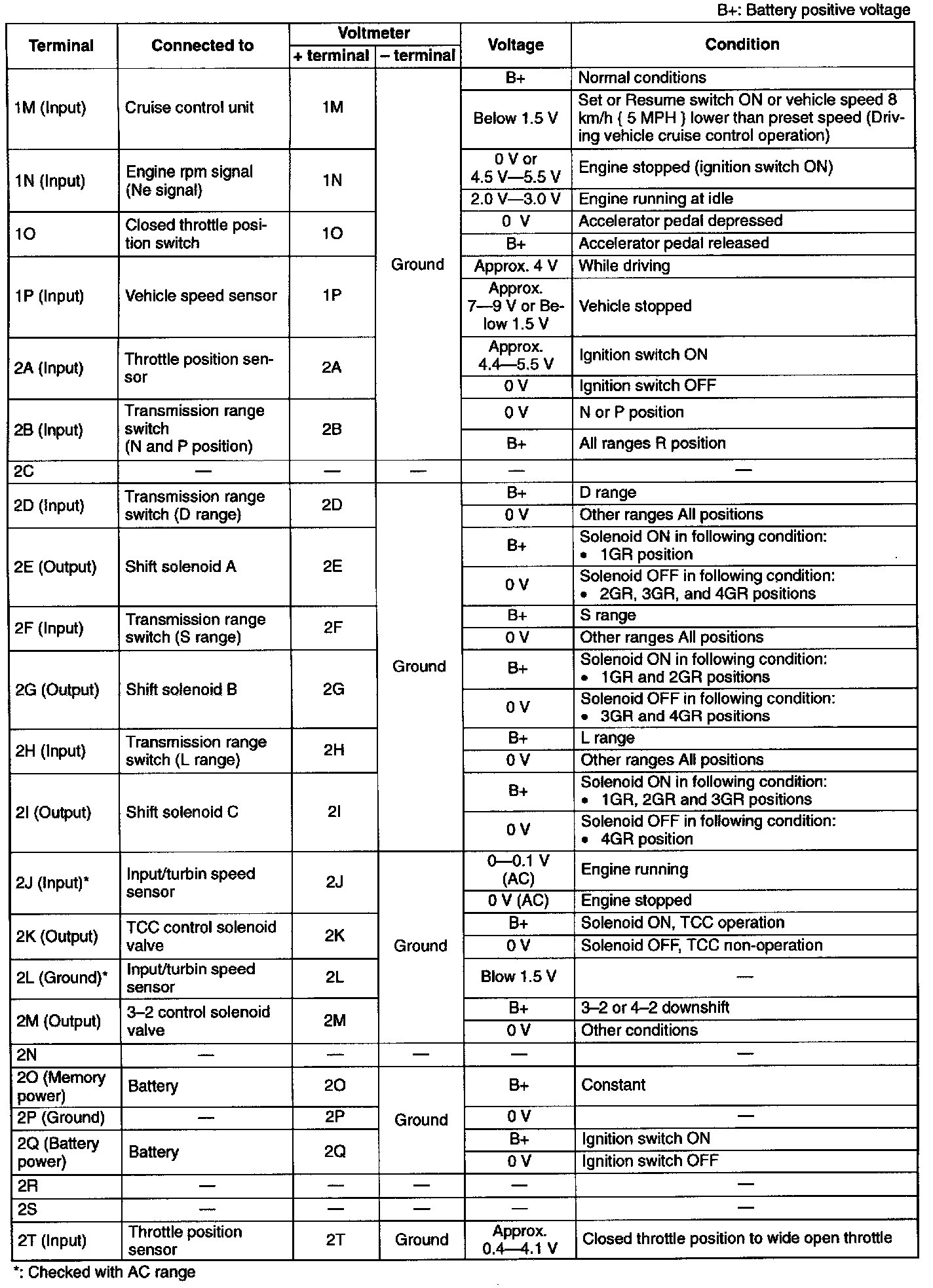

Terminal Voltage Chart (Reference Data)
NOTE: Use the ground of terminal 2P of the transmission control module when measuring terminal voltage, as an error may occur when connecting the negative (-) circuit tester to ground.
