Power Steering Pressure Switch: Service and Repair




REPLACEMENT

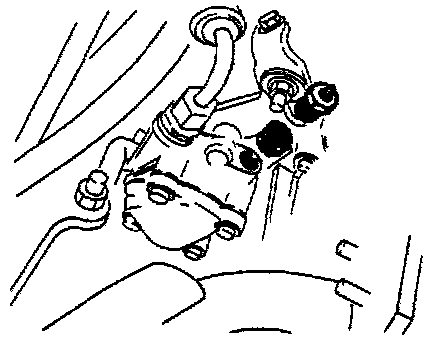

Replace the power steering pressure switch as shown in the figure.

Tightening torque: 25 - 29 Nm (19 - 21 ft. lbs.)
