Clutch Switch: Service and Repair

INSPECTION
- Disconnect the clutch switch connector.

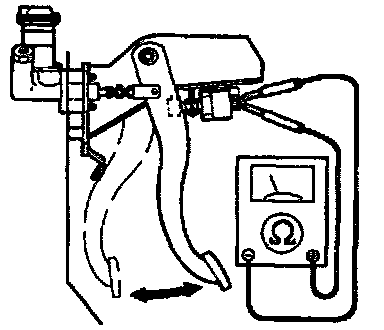

- Connect an ohmmeter to the switch.

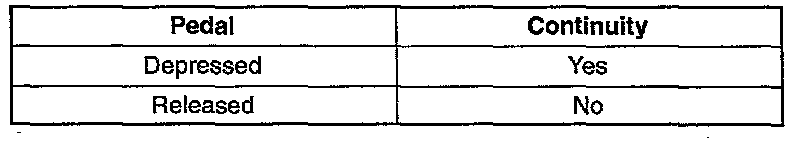

- Check continuity of the switch.
- If not as specified, adjust the pedal height and reinspection.

REPLACEMENT
- Disconnect the clutch switch connector.

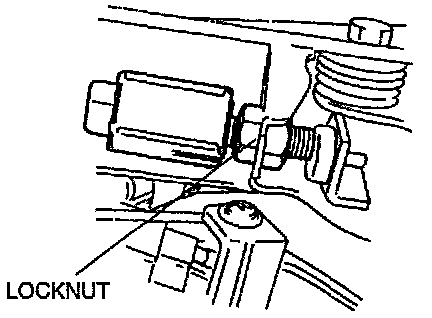

- Loosen the locknut.
- Remove the clutch switch.
- Install in the reverse order of removal.
- Adjust the pedal height.
