Exhaust System

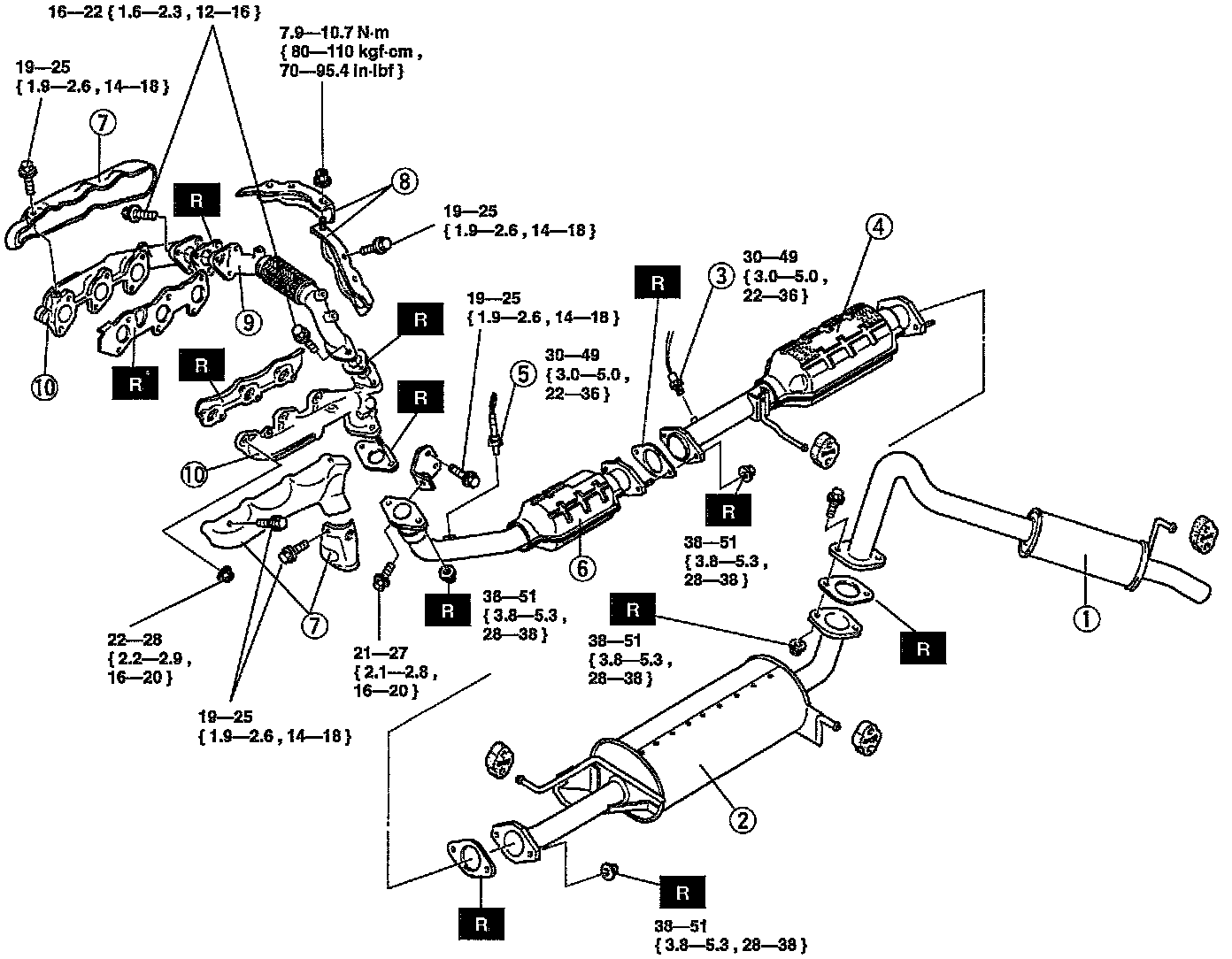

EXHAUST SYSTEM
1. After-silencer
2. Main silencer
3. Heated oxygen sensor (rear)
4. Three way catalytic converter (Main)
5. Heated oxygen sensor (front)
6. Three way catalytic converter (pre)
7. Exhaust manifold insulator
8. Insulator
9. Center exhaust pipe
10. Exhaust manifold
