Home >> Mazda >> 1996 >> MPV 2WD V6-3.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Central Control Module >> Locations

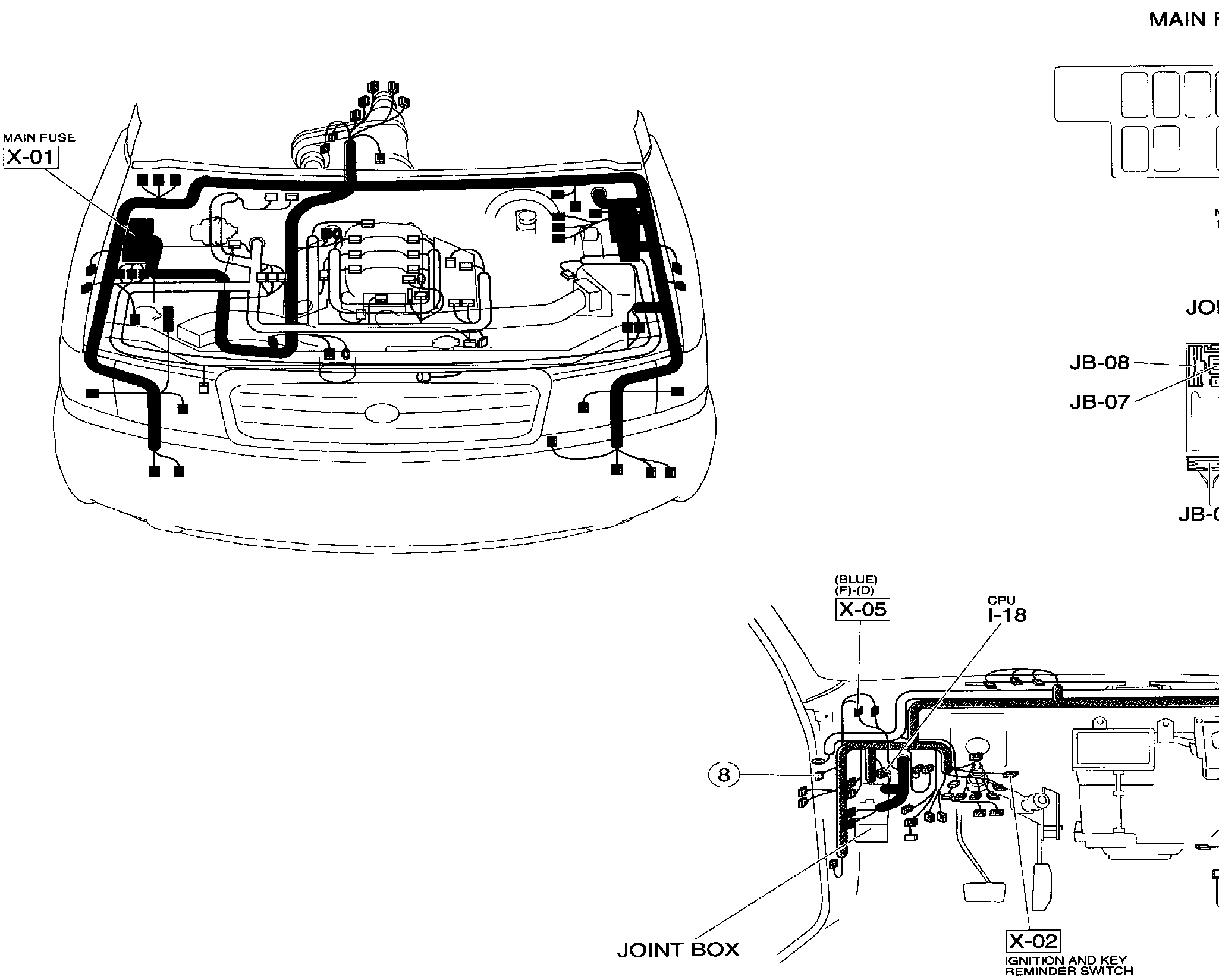

Central Control Module: Locations

��yConnector Locations:
