Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Powertrain Management >> Engine Control Module >> A/T

A/T

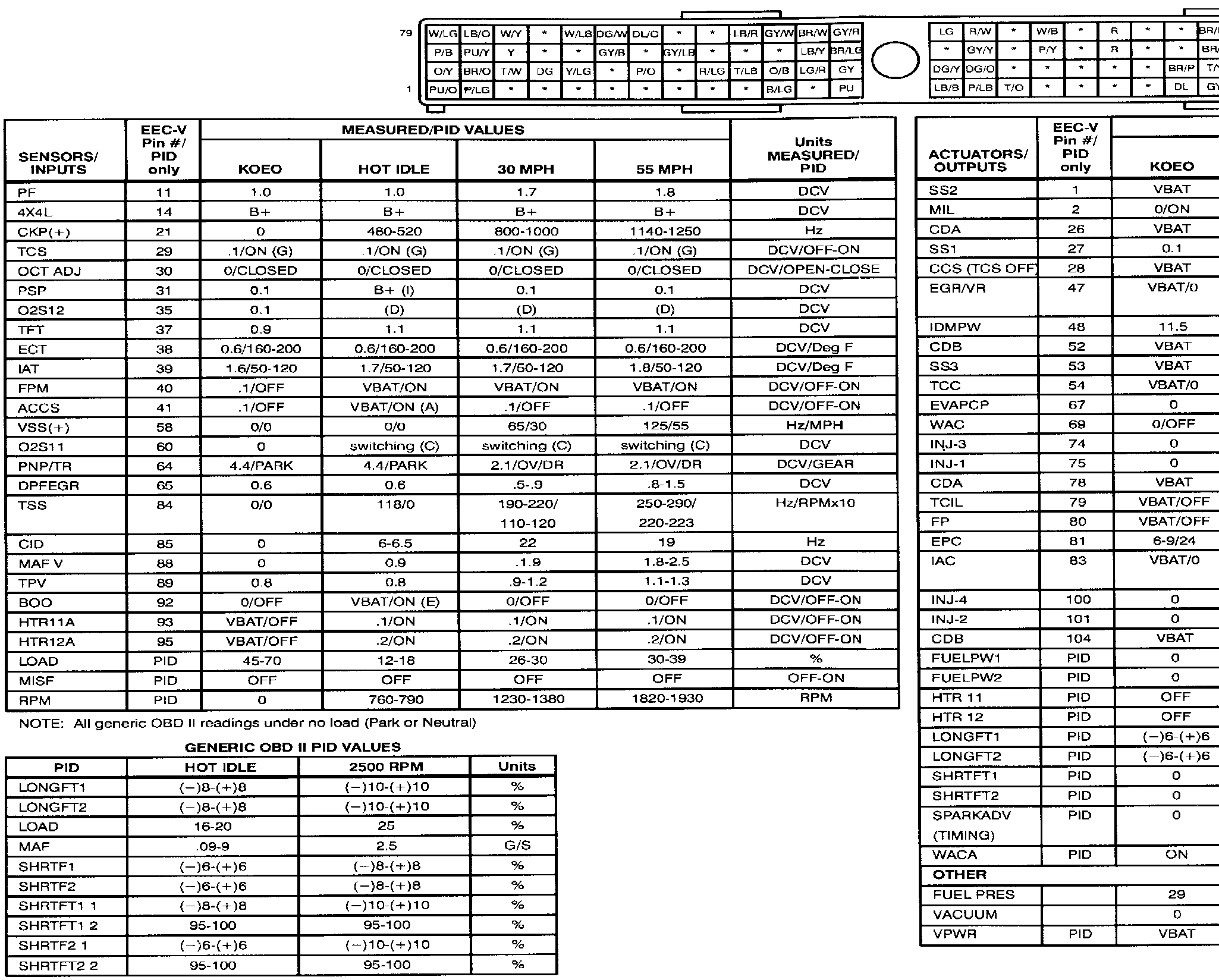

!K�Powertrain Control Module Terminal (Unit Side):
