Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Panel Illumination Control Module >> Locations

Panel Illumination Control Module: Locations

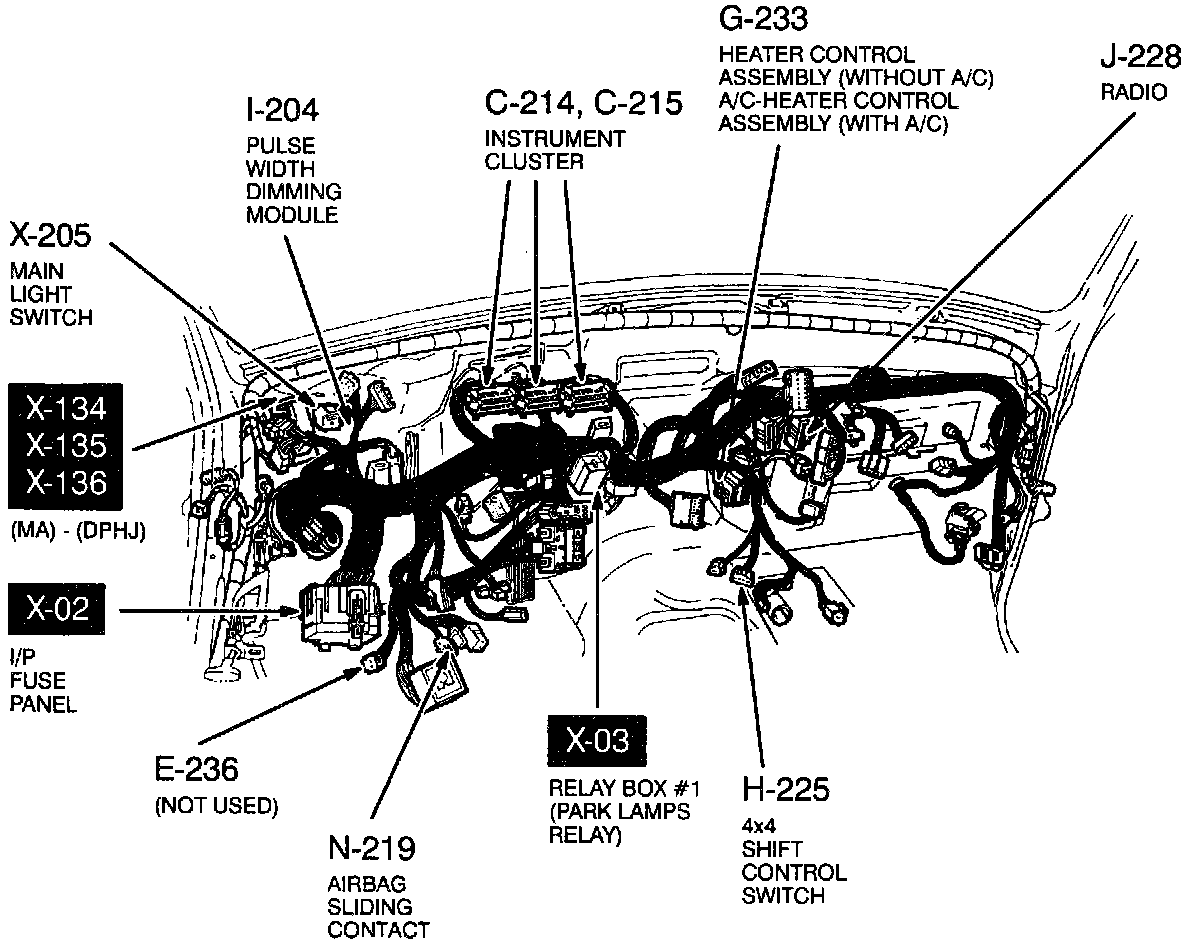

Connector Locations-Instrument Panel:
