Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Lighting and Horns >> Interior Lighting Module >> Locations

Interior Lighting Module: Locations

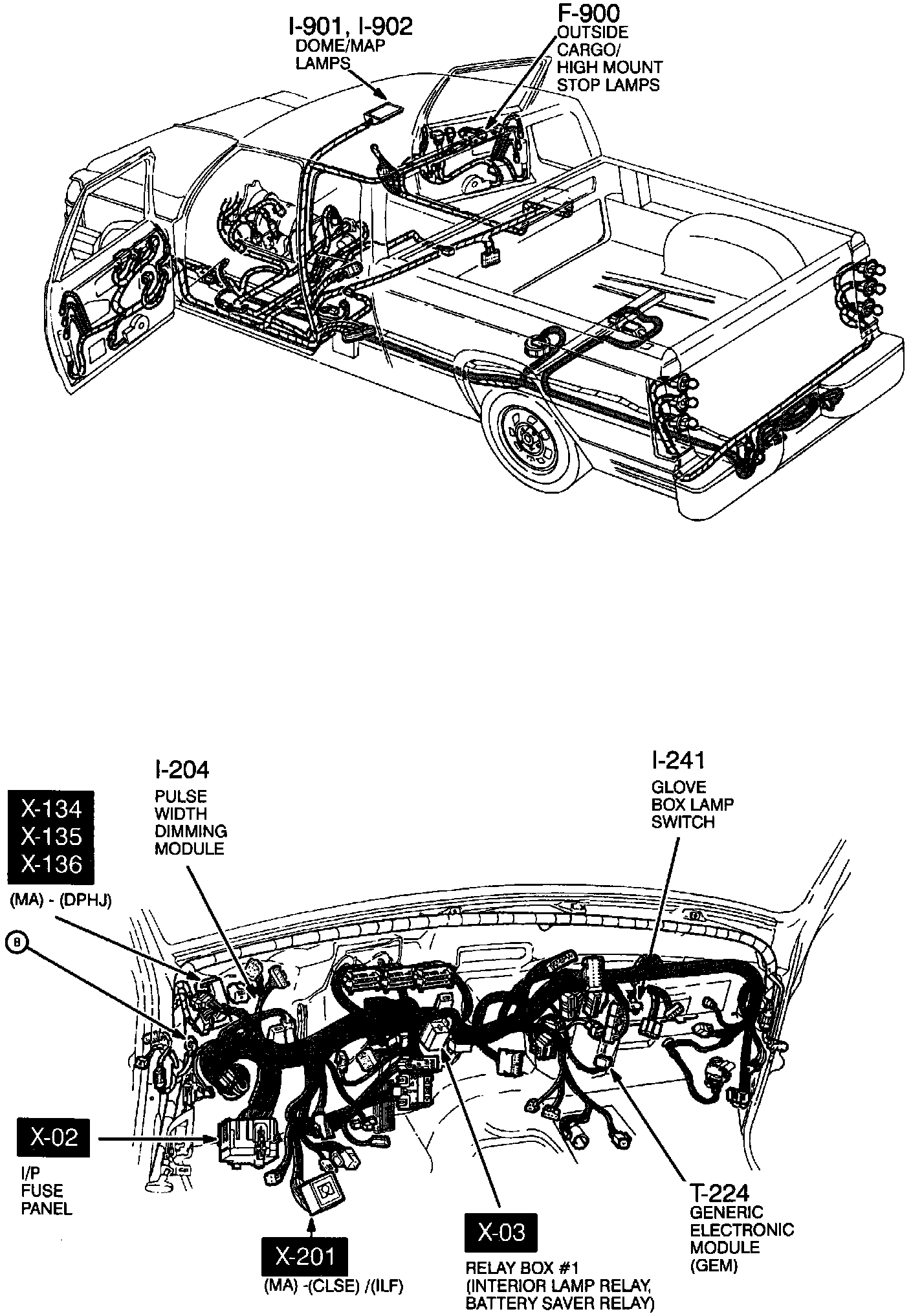

Connector Locations-Instrument Panel And Body:
