Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module

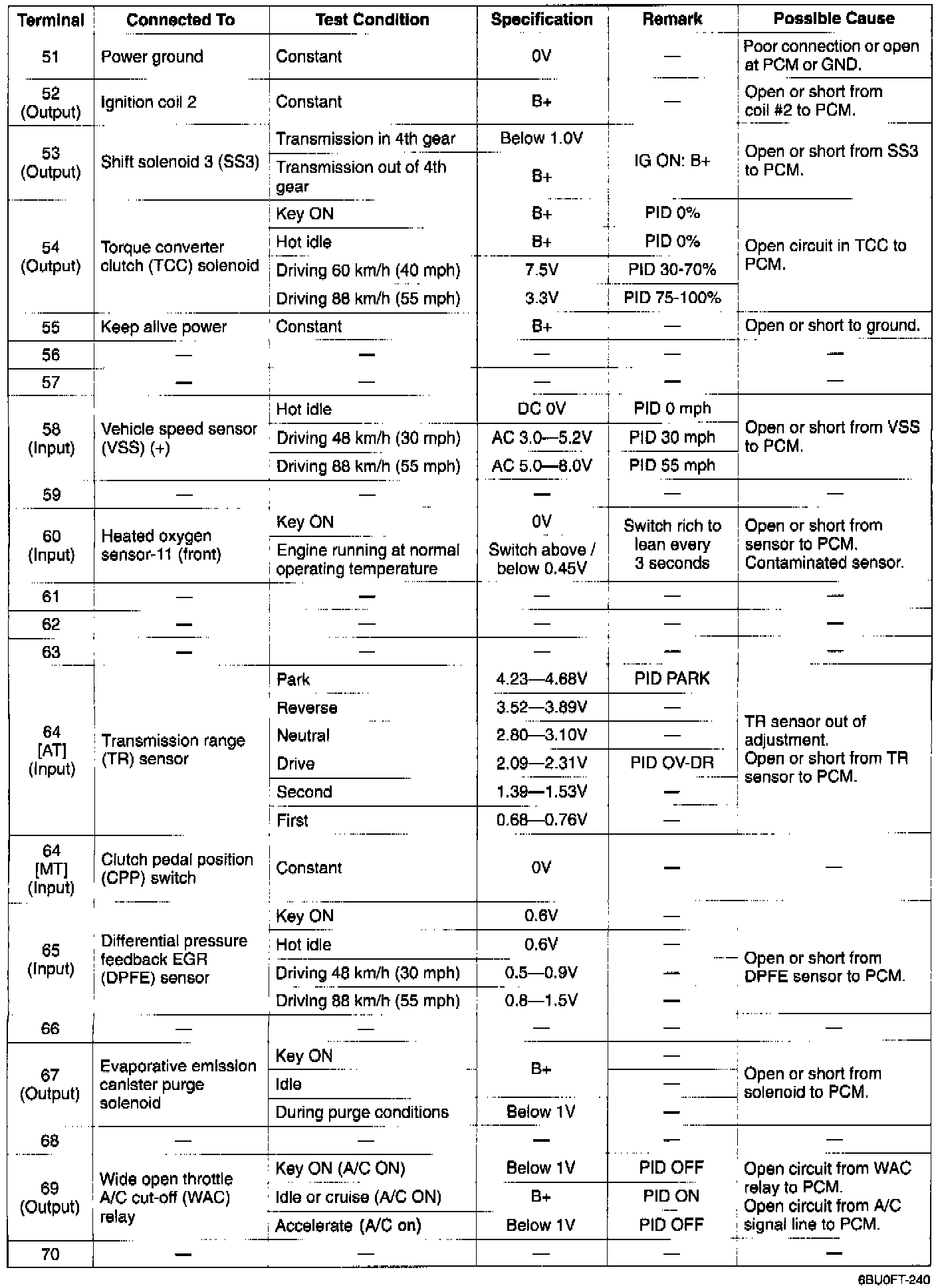

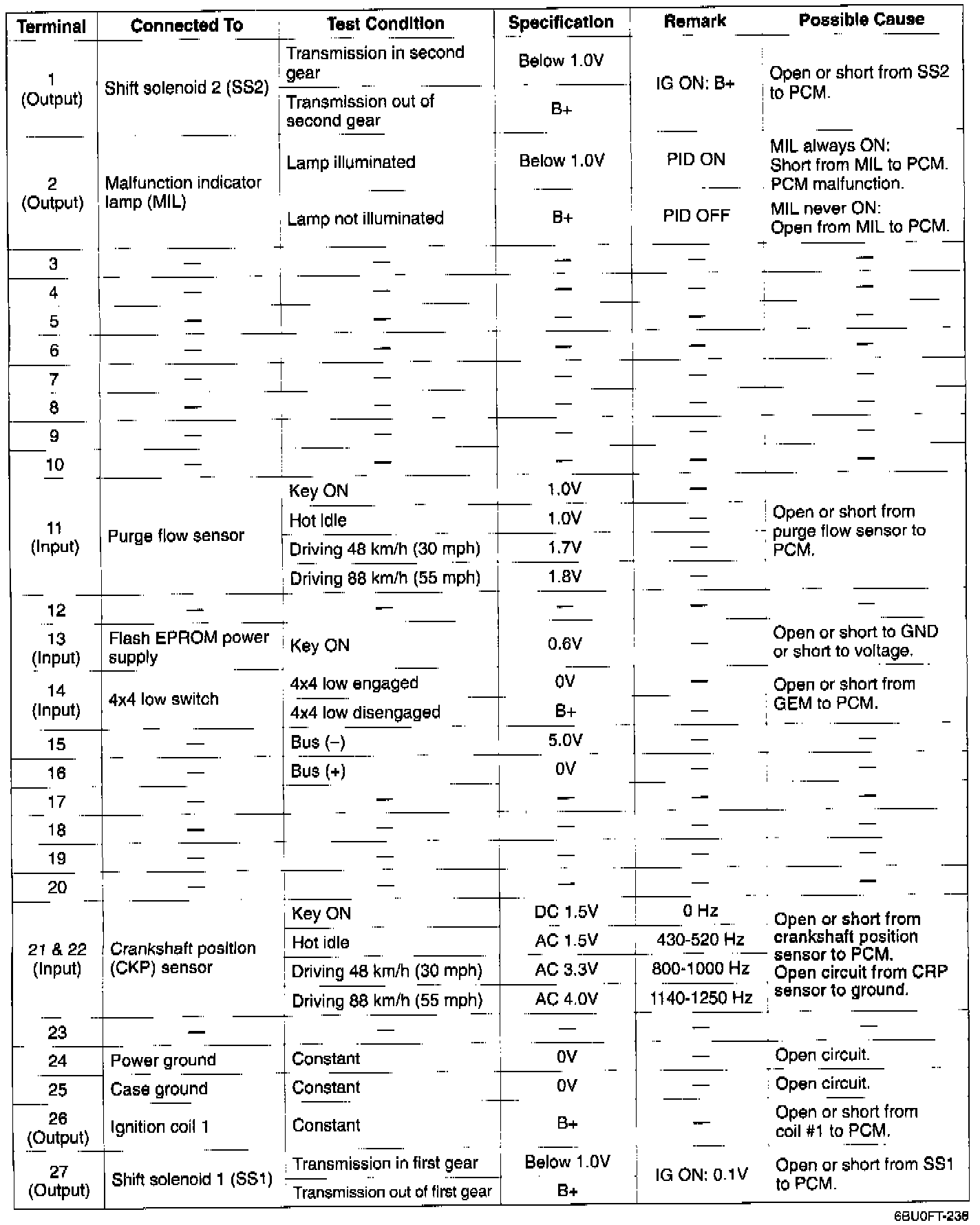

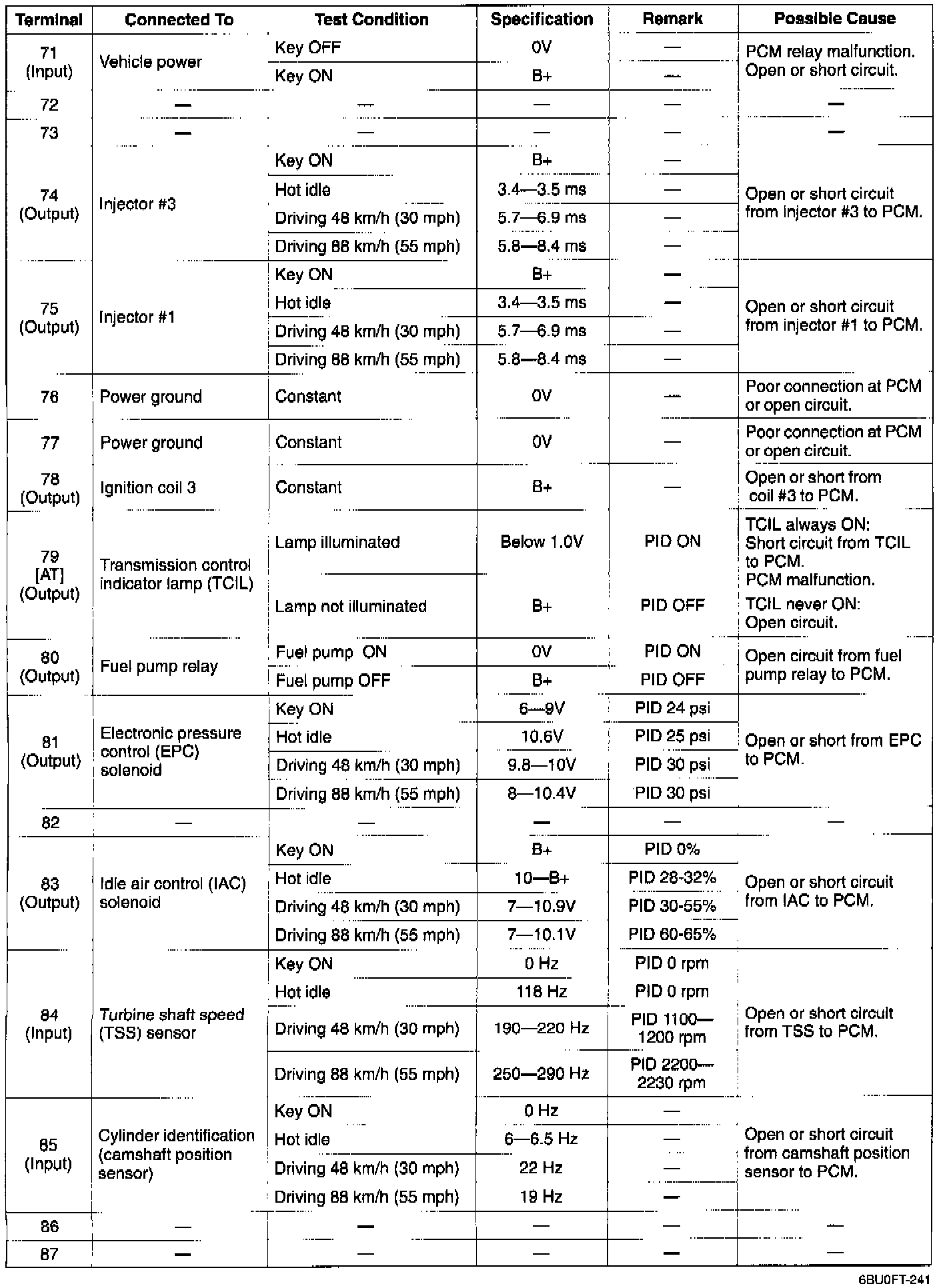

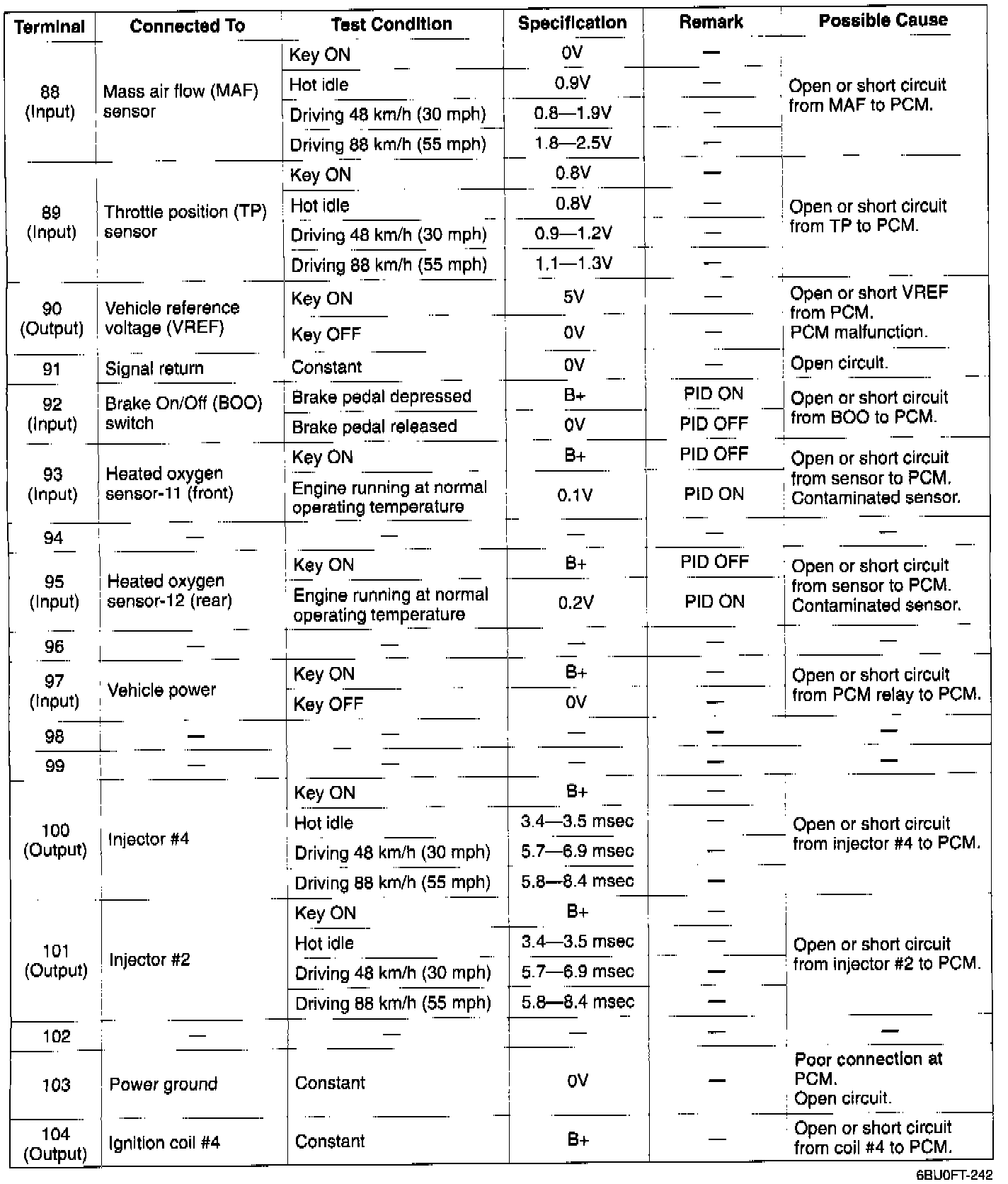

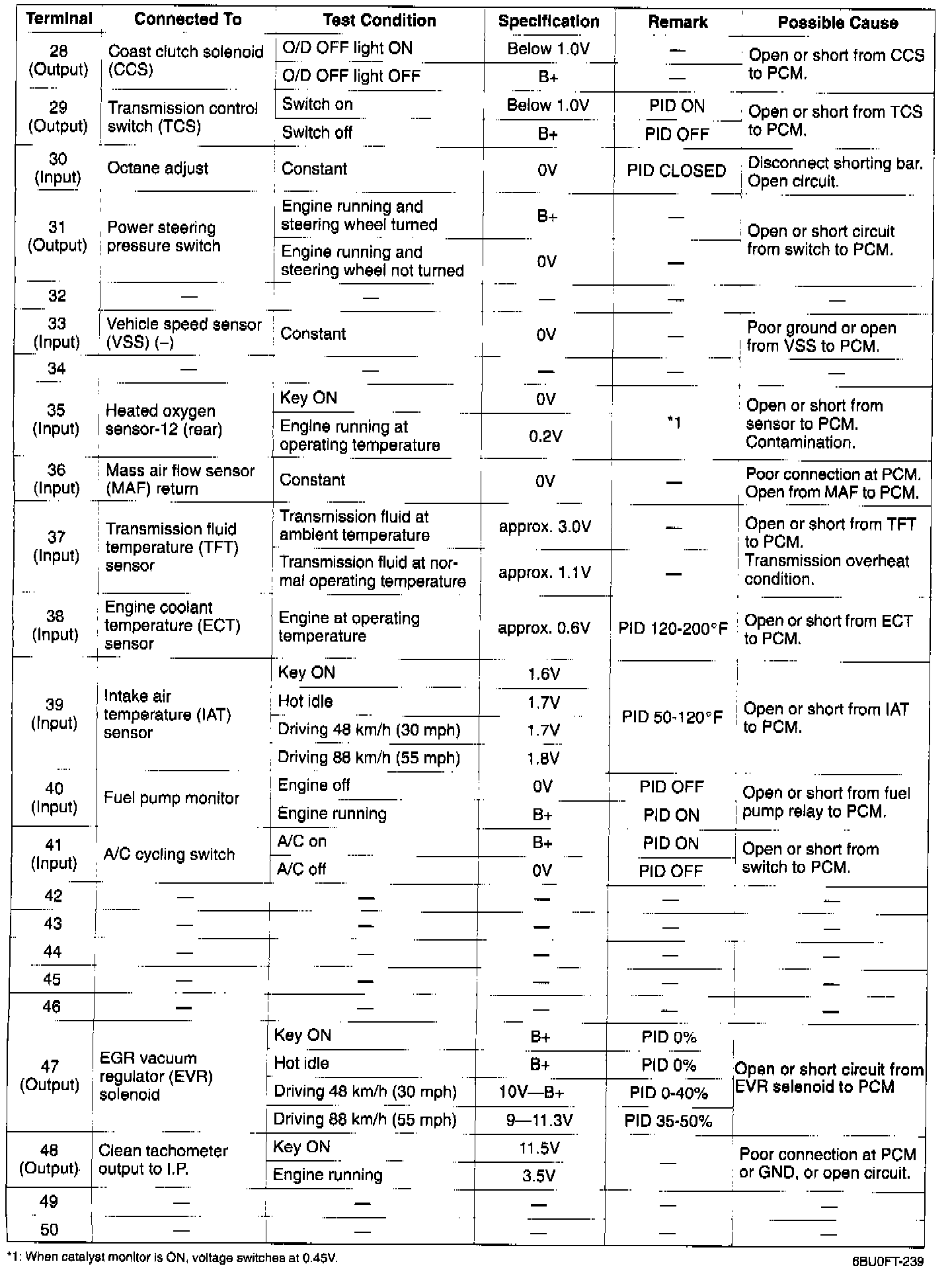

Engine Control Module
































NOTE: All values shown may vary ± 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.
