Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> T-1A

T-1A

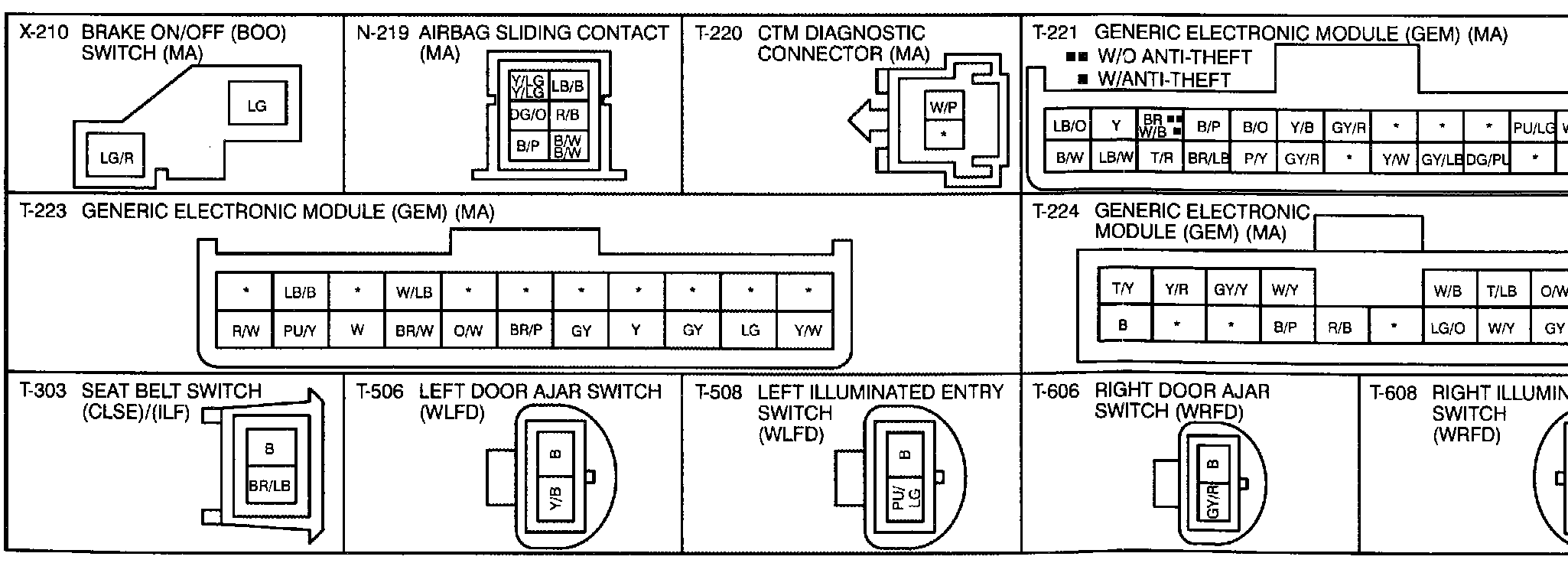

��MGeneric Electronic Module (GEM)-Connectors:
