Component Locations

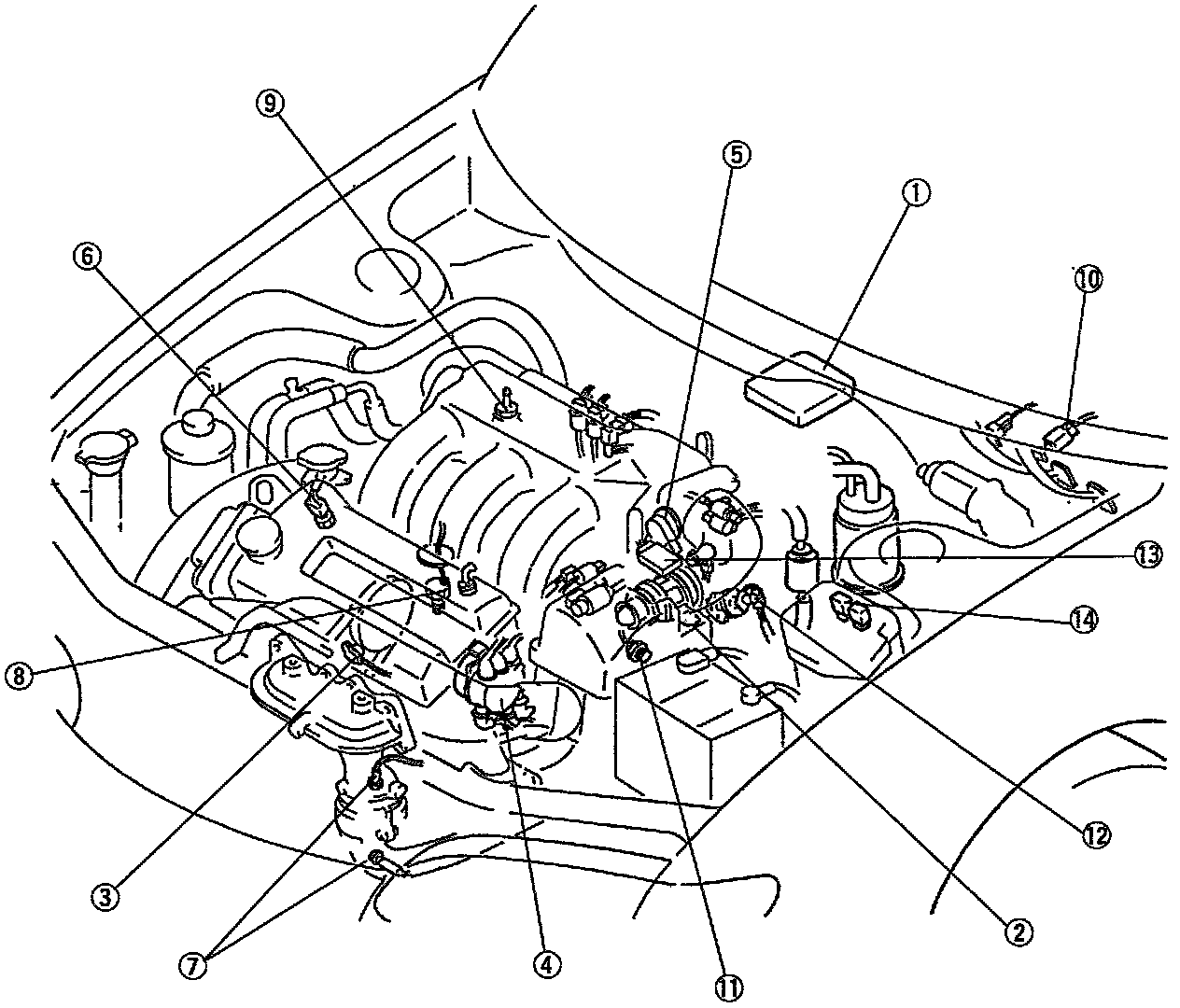

CONTROL SYSTEM COMPONENT LOCATIONS

Control System Component Locations:

1. Powertrain control module (PCM).
2. Volume air flow sensor.
3. Crankshaft position sensor.
4. Camshaft position sensor.
5. Throttle position sensor.
6. Engine coolant temperature sensor.
7. Heated oxygen sensor (front, rear).
8. Knock sensor.
9. P/S pressure switch.
10. Clutch switch.
11. Neutral switch.
12. EGR valve position sensor.
13. EGR boost sensor.
14. Main relay.
