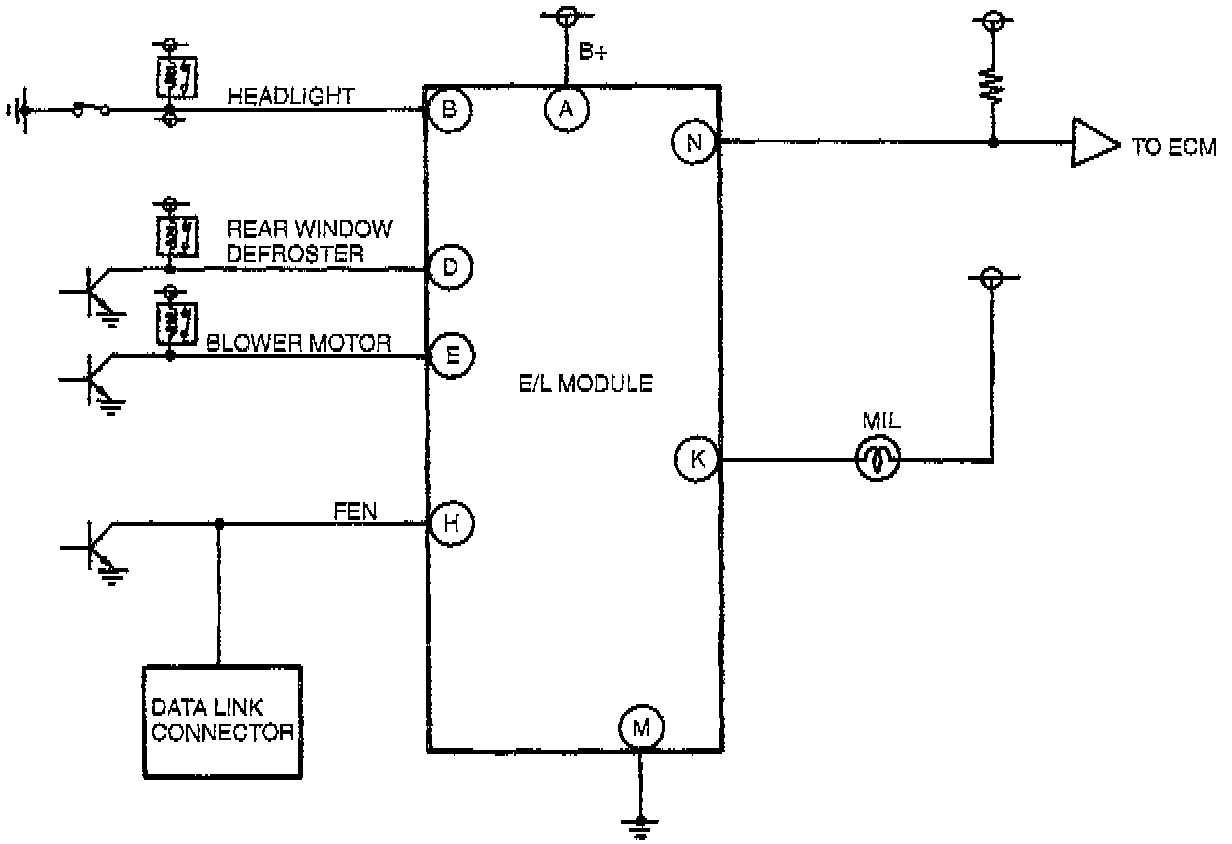

Electrical Load (E/L) Control System






The engine speed increases when any of the following switches are ON.
- Rear window defroster switch
- Headlight switch
- Blower switch 3rd or 4th position
