Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

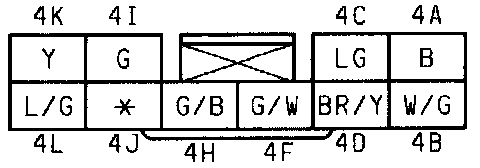

E2-01 Daytime Running Light (DRL) Control Module (In CPU No. 2) (F):
