Code 23: Fuel THERMOSENSOR

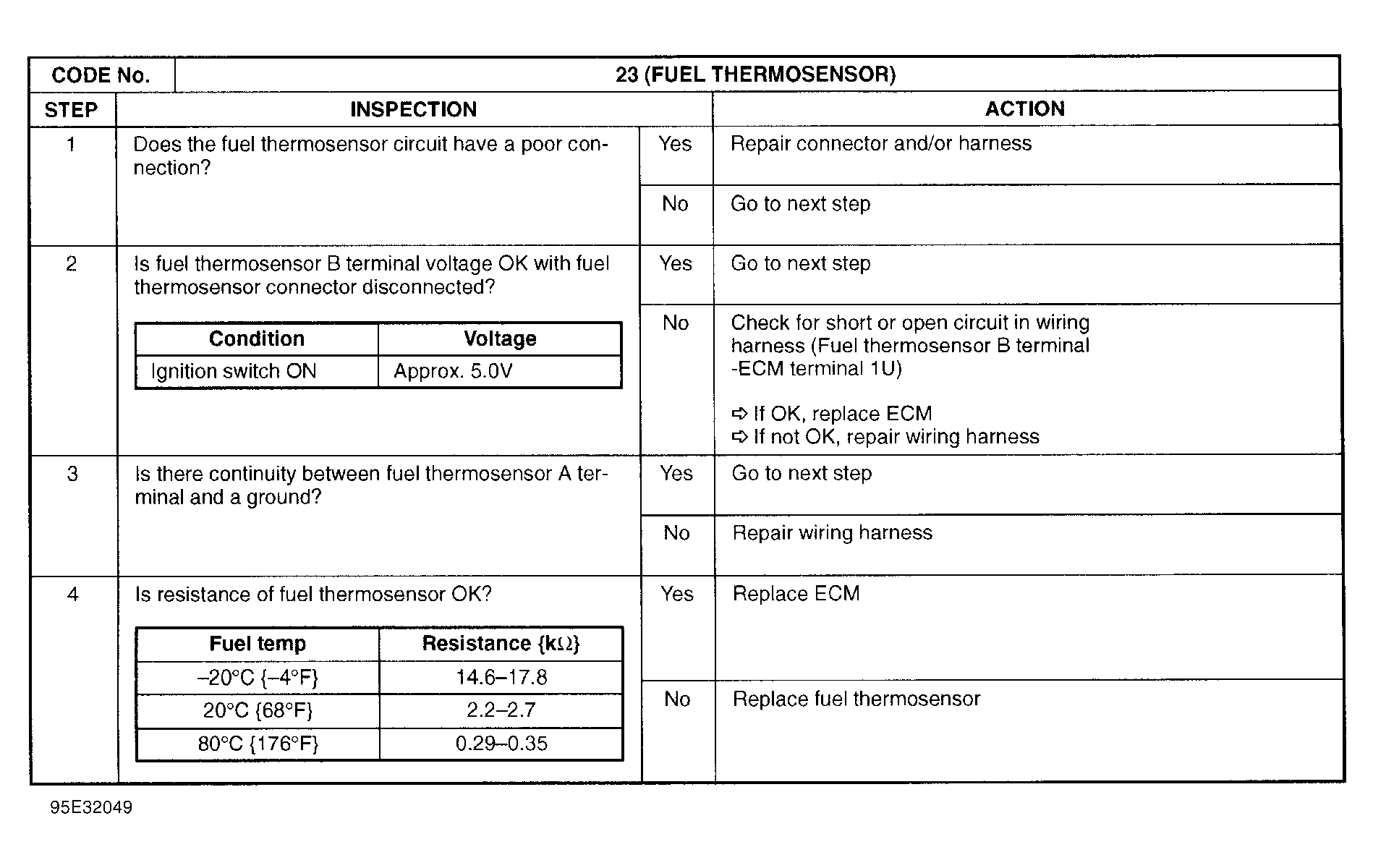

Fig 1: Trouble Code No. 23 Fuel Thermosensor

G95E32049

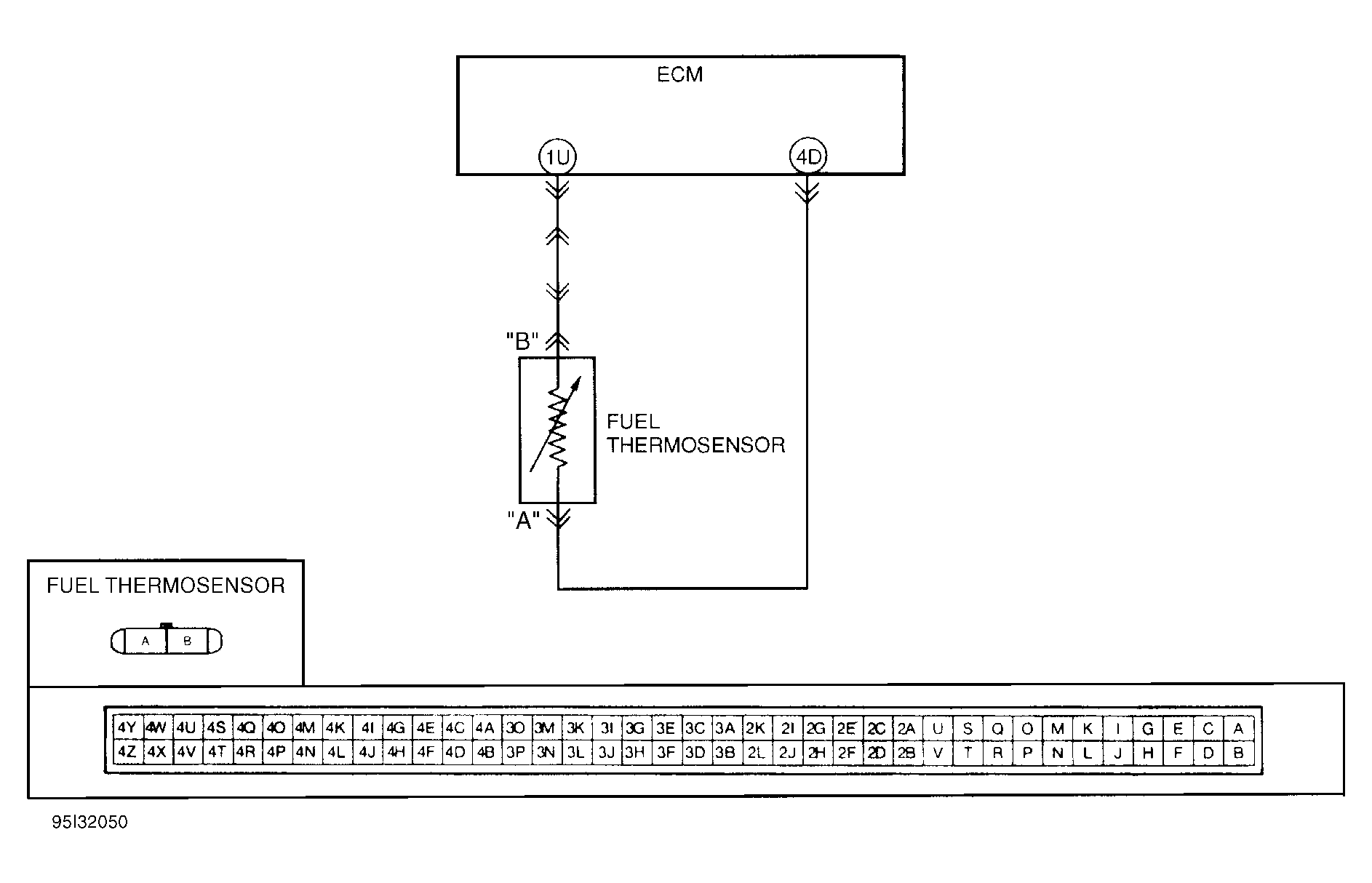

Fig 2: Trouble Code No. 23 Fuel Thermosensor Circuit Diagram

G95I32050
