Code 73: Fuel Injector - Rear Secondary

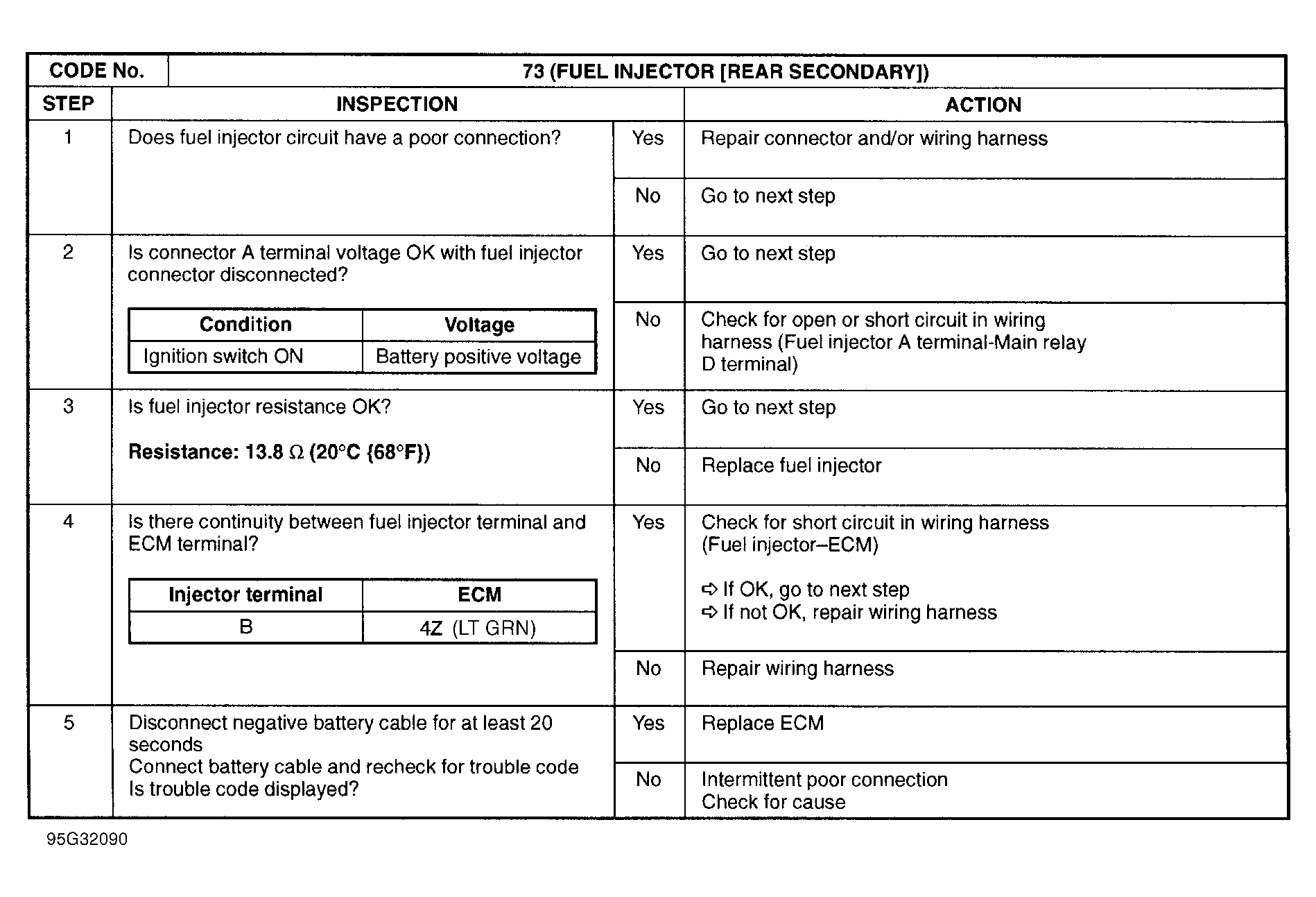

Fig 1: Trouble Code No. 73 Fuel Injector - Rear Secondary

G95G32090

Fig 2: Trouble Code No. 73 Fuel Injector Circuit Diagram

G95D32089
