Engine Control Module: Service and Repair

Removal/Installation
1. Disconnect the negative battery cable.
2. Remove the rear console, front console and undercover.

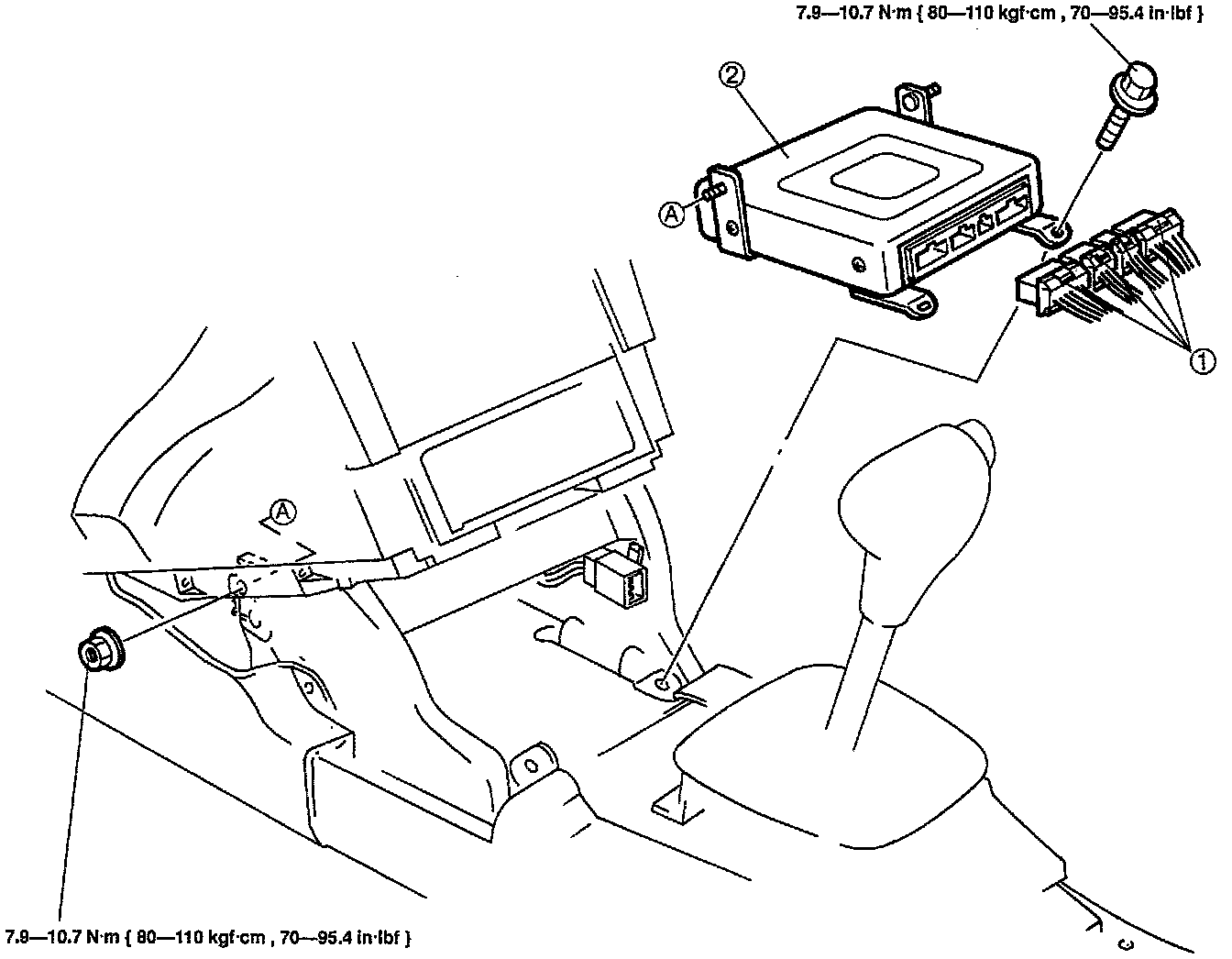

3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.




1. PCM connectors
2. Powertrain control module (PCM)
