Disassembly and Assembly

Disassembly/Assembly

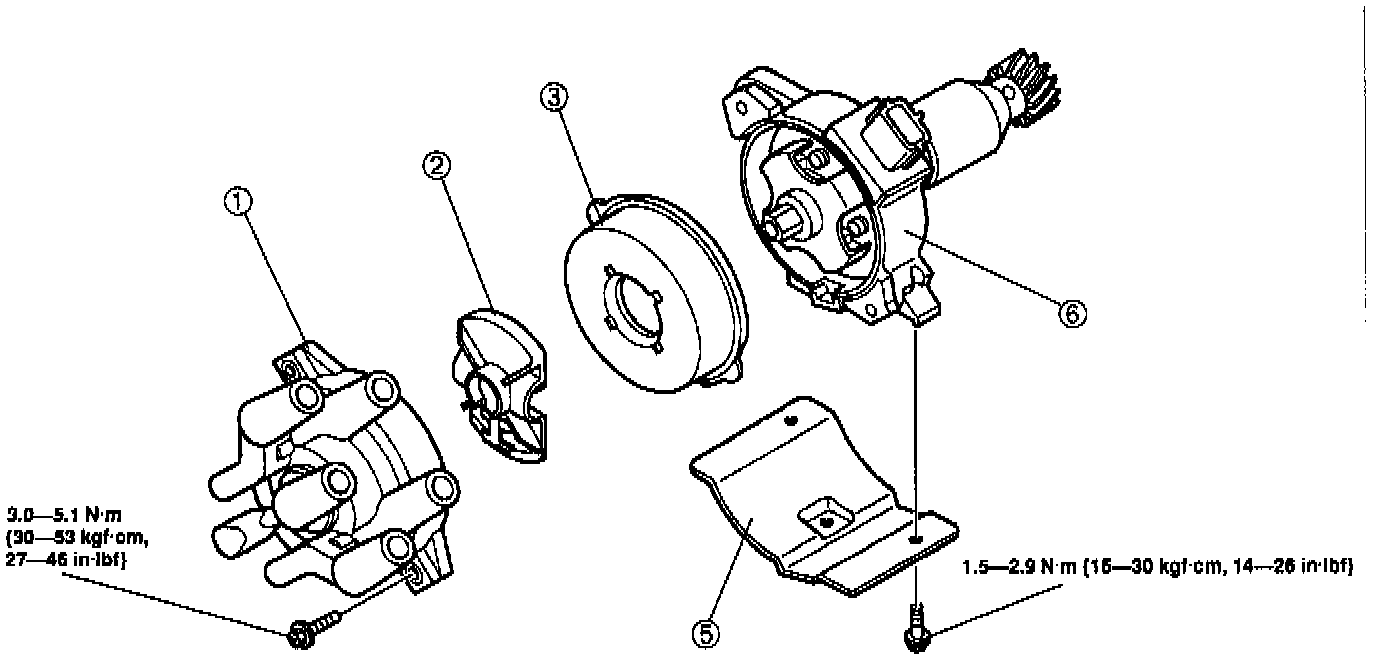

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.




1. Cap
2. Rotor
3. Cover
5. Insulator
6. Distributor
(Incorporates camshaft position sensor)
