Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Terminals 2D-2T
Terminals 2D-2T

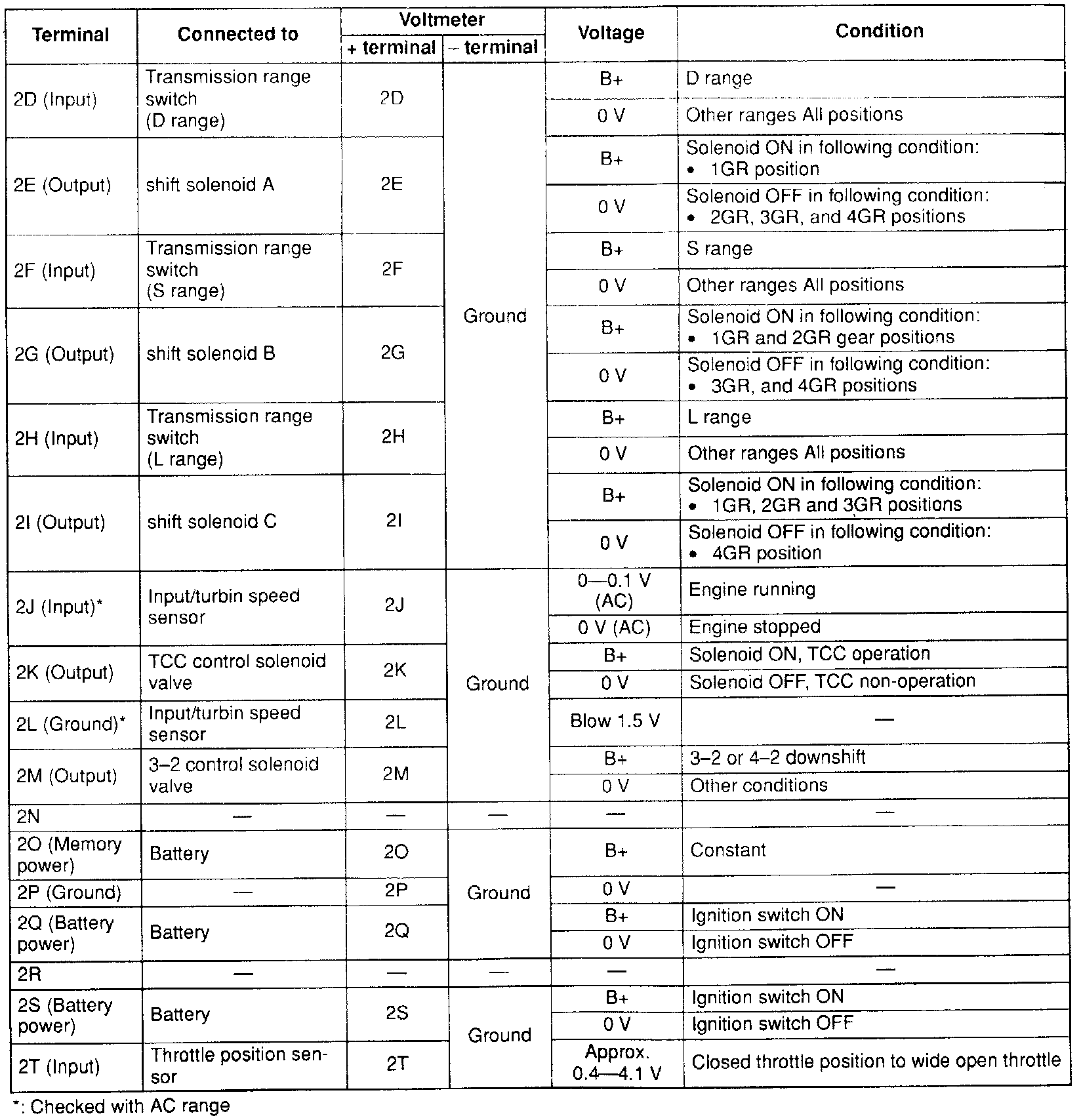

Terminal Voltage Chart:
