Air Flow Meter/Sensor: Locations

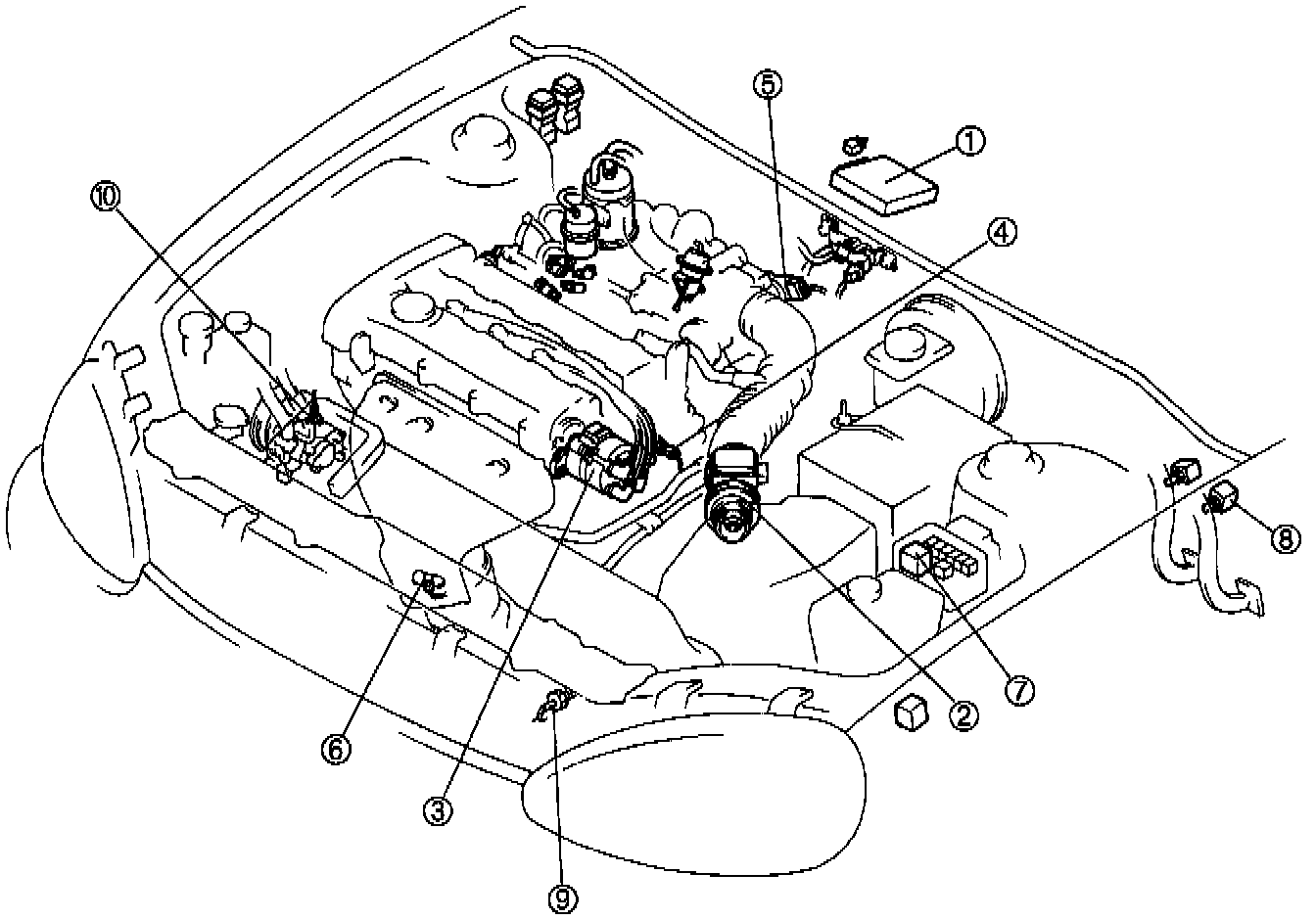

View: Under Hood Components:




Located on the left side of the engine compartment, mounted on the air cleaner housing. Refer to item No.2 in the image.
