Home >> Mazda >> 1995 >> MPV 4WD V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, Transfer Case

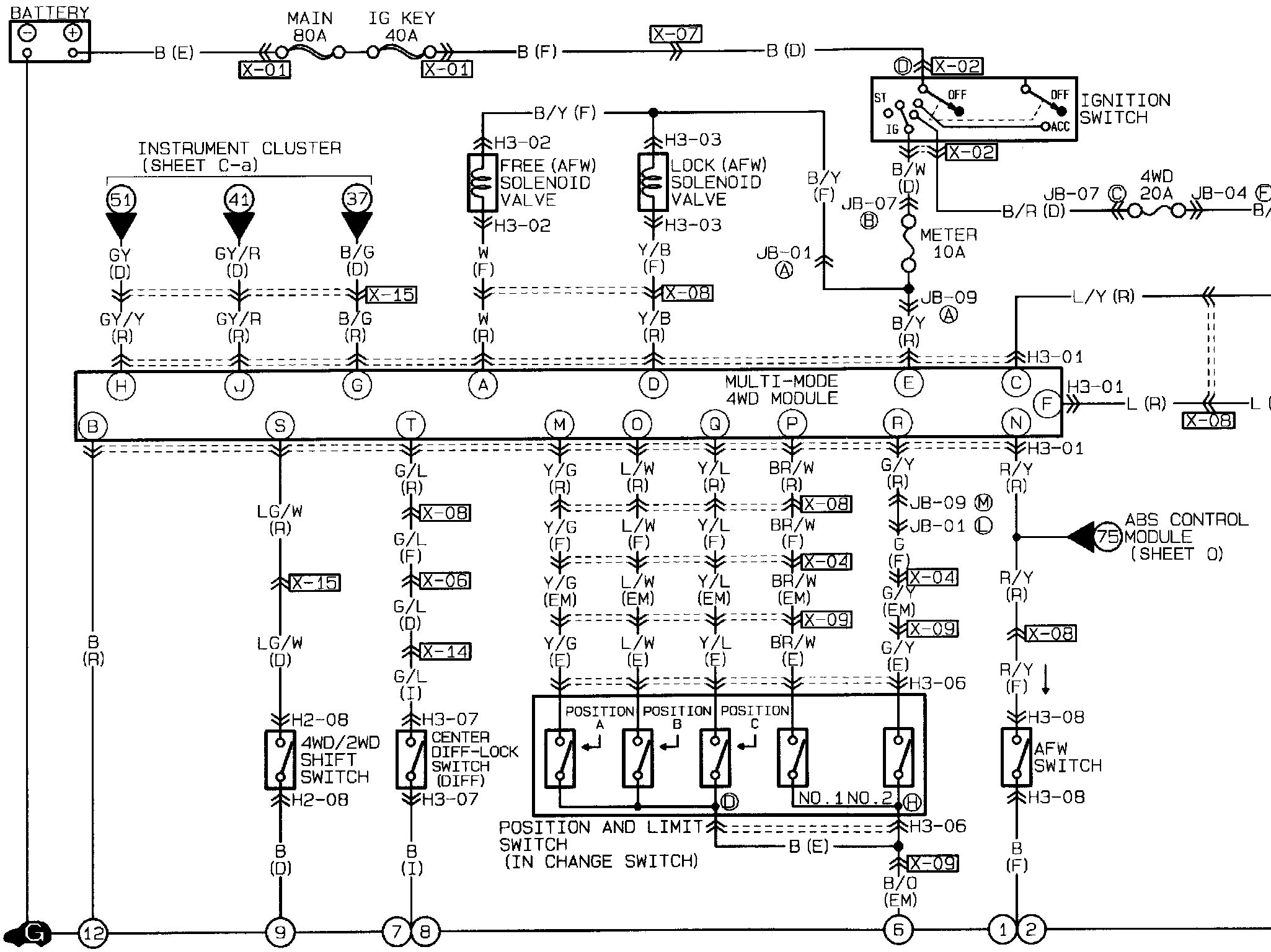

Control Module, Transfer Case

��C!Multi-Mode System:
