Home >> Mazda >> 1995 >> MPV 2WD V6-3.0L SOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> H-1

H-1

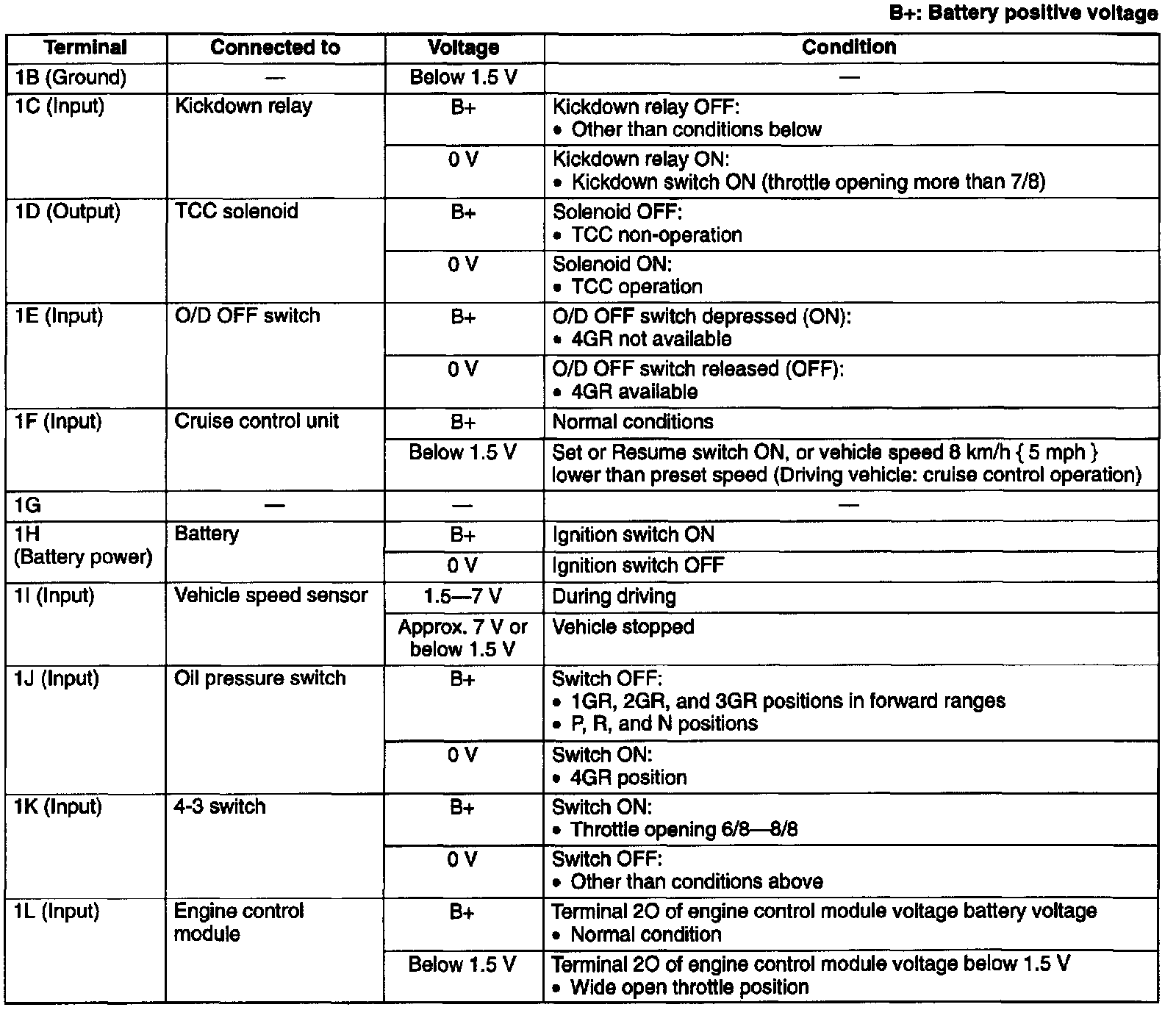

Terminal Voltage Chart:
