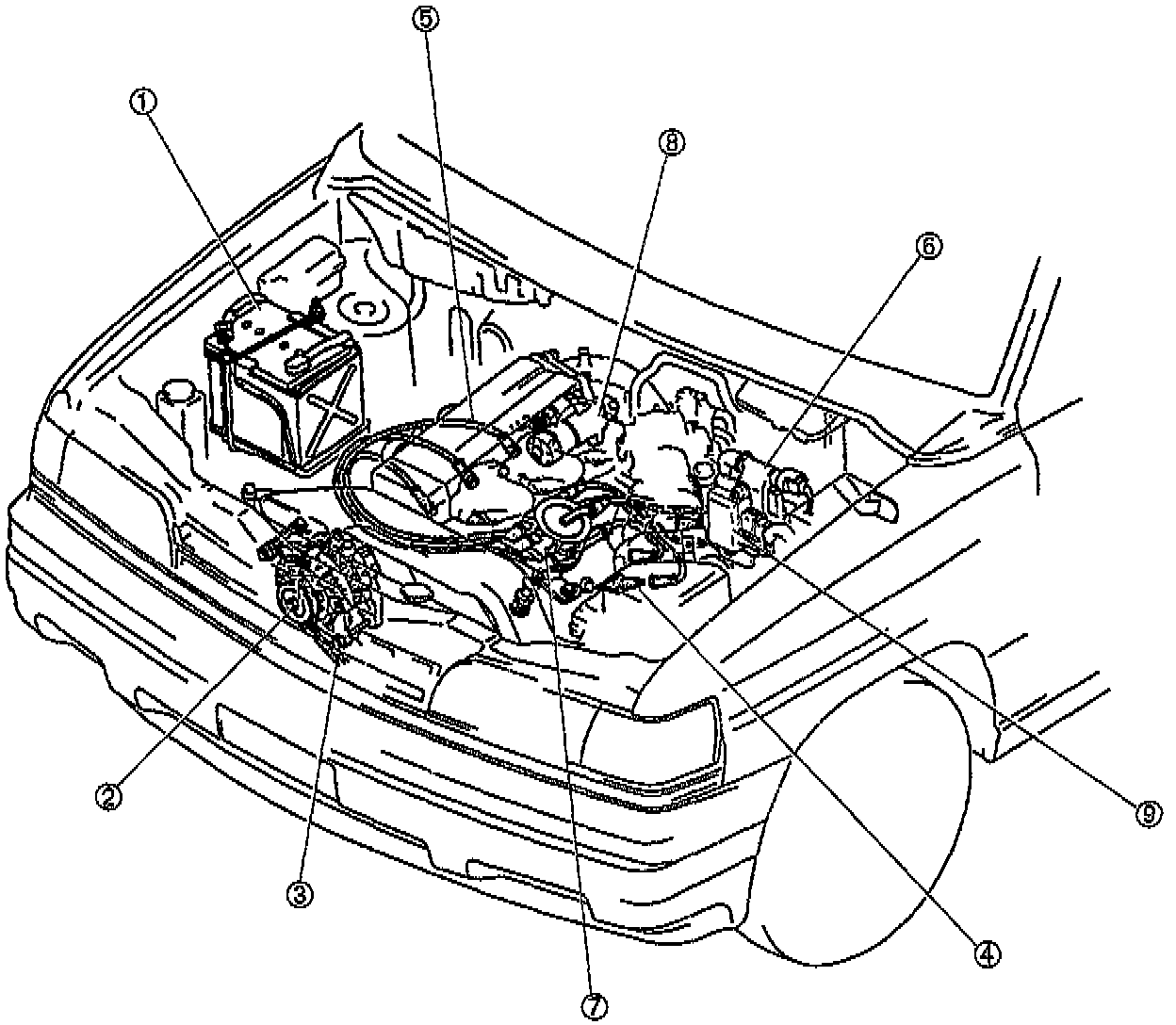

Ignition System: Locations

1. Battery
2. Generator
3. Drive belt
4. Spark plug
5. High-tension lead
6. Ignition coil
7. Distributor
8. Starter
9. Ignition control module
