LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
1995
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Description and Operation
>>
Control System Component Overview
Control System Component Overview

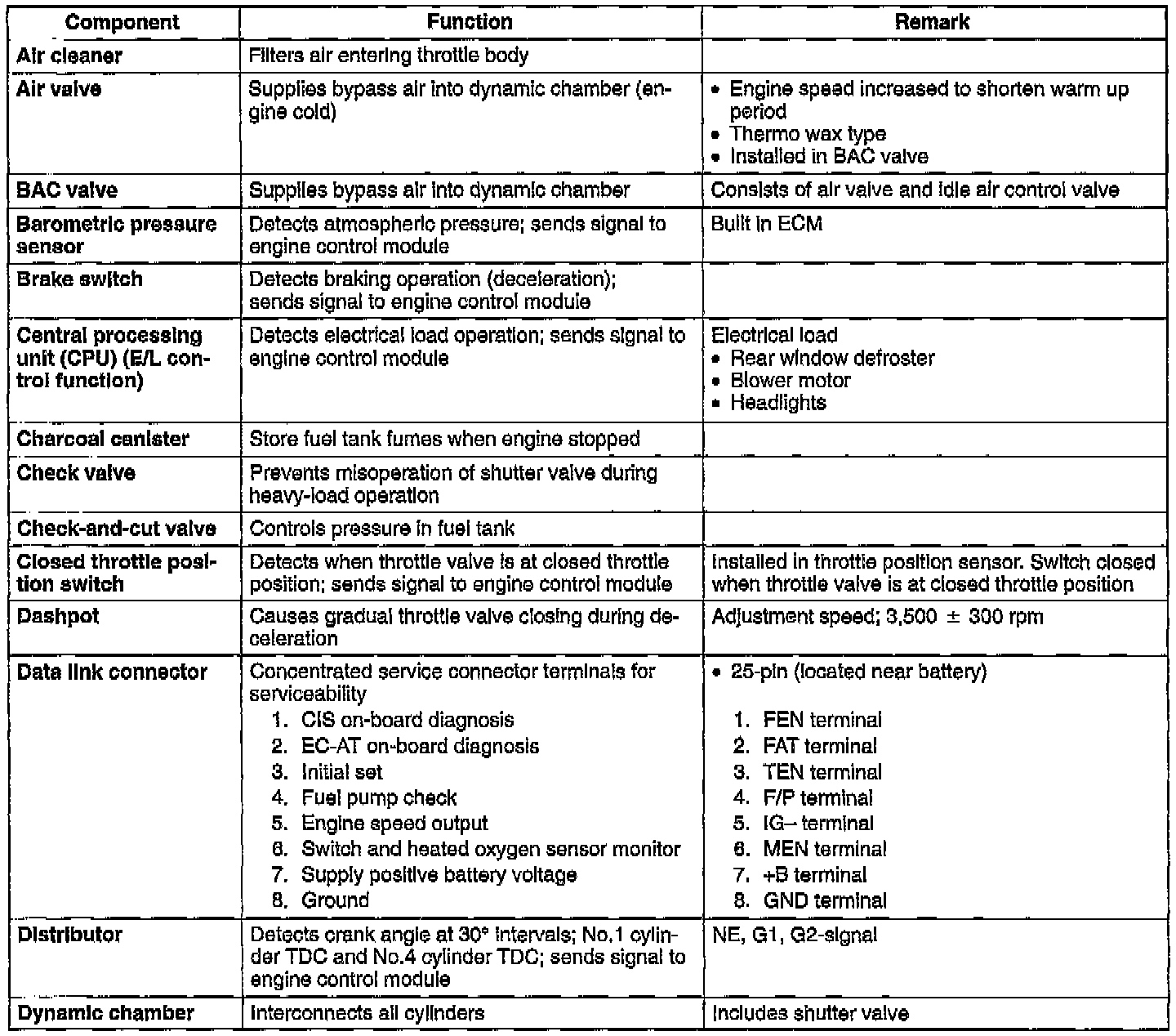

Air Cleaner Through Dynamic Chamber:

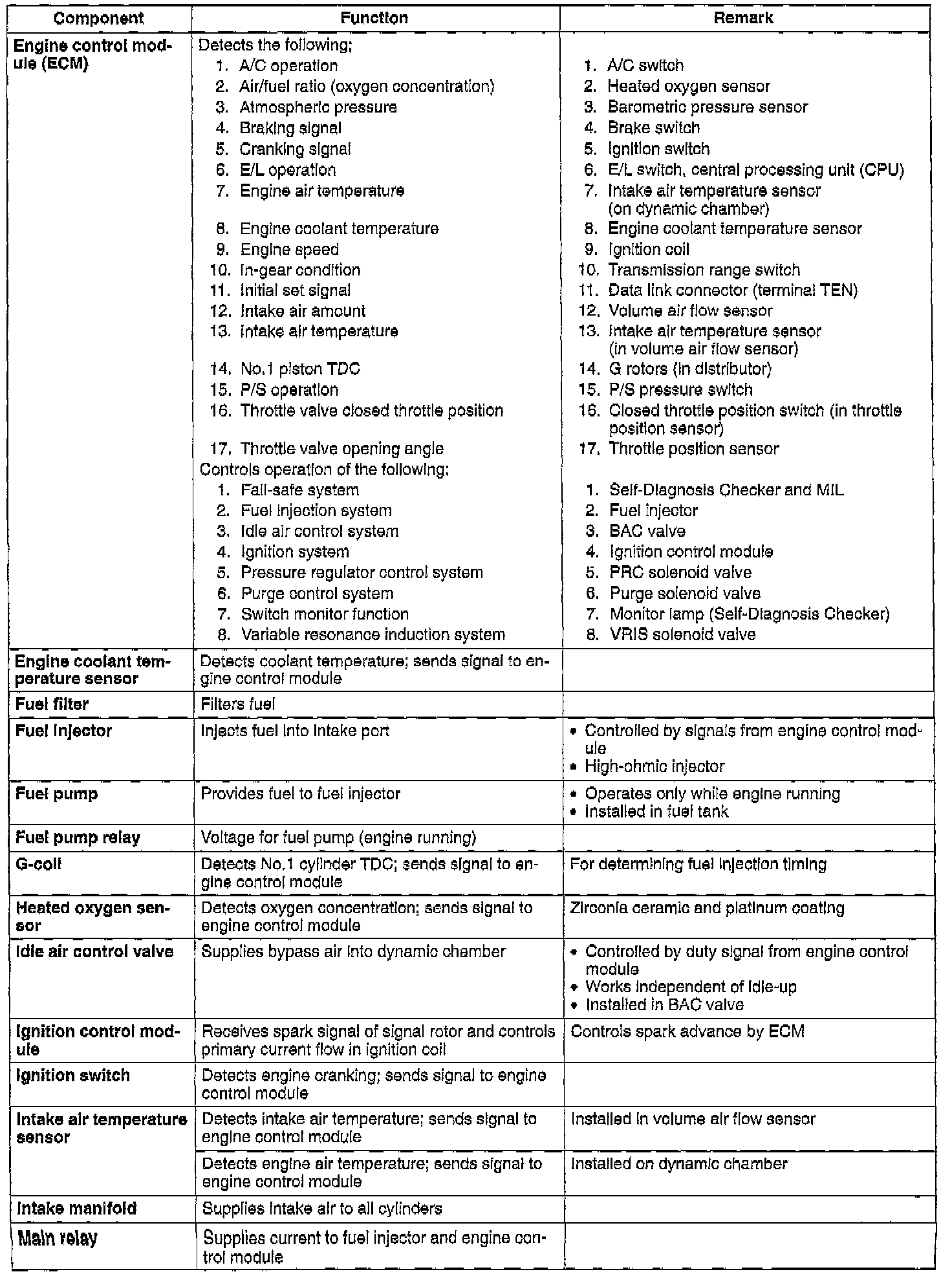

ECM Through Main Relay:

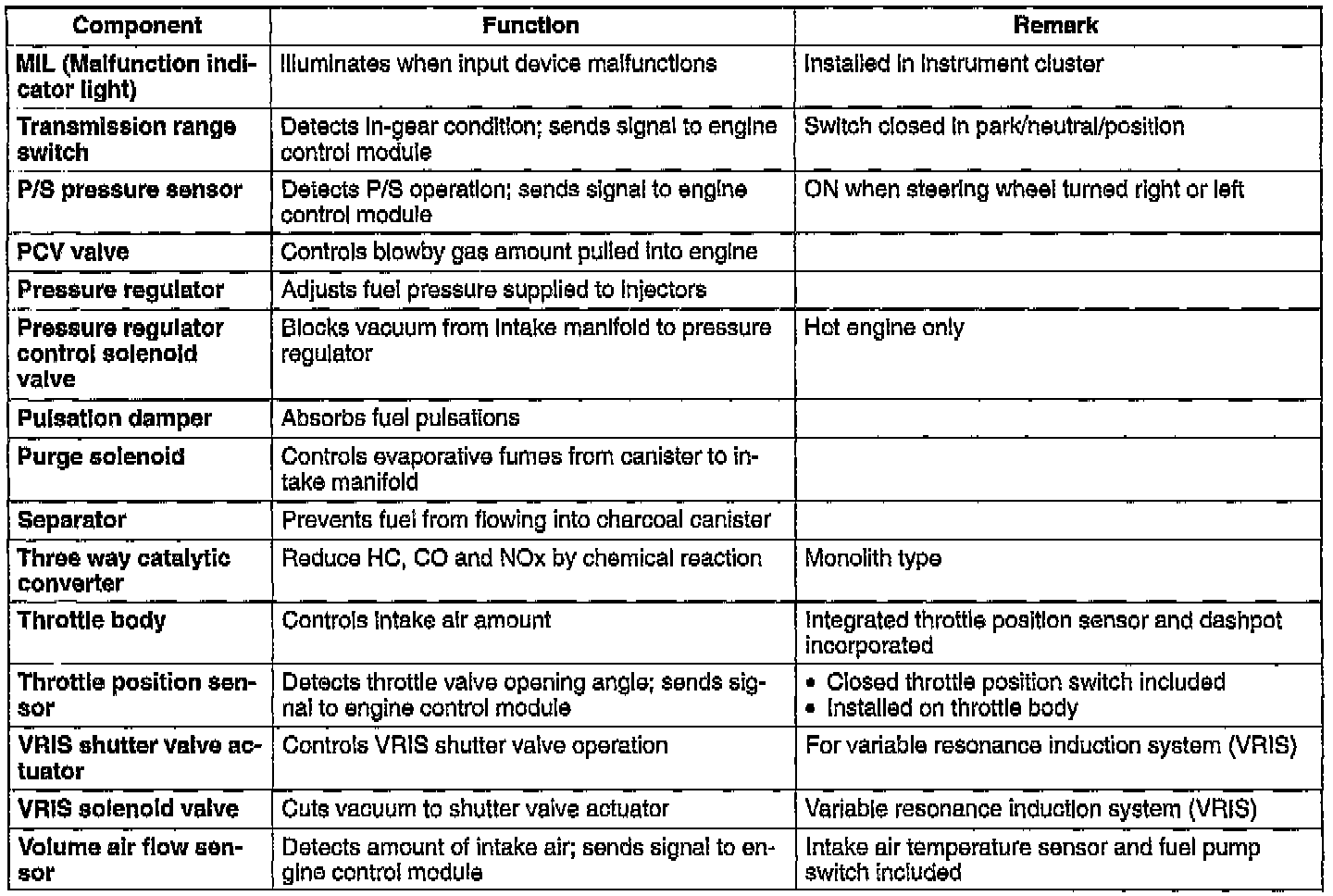

MIL Through Volume Air Flow Sensor:
