Code 36 & 37: Right/Left Oxygen Sensor Heater

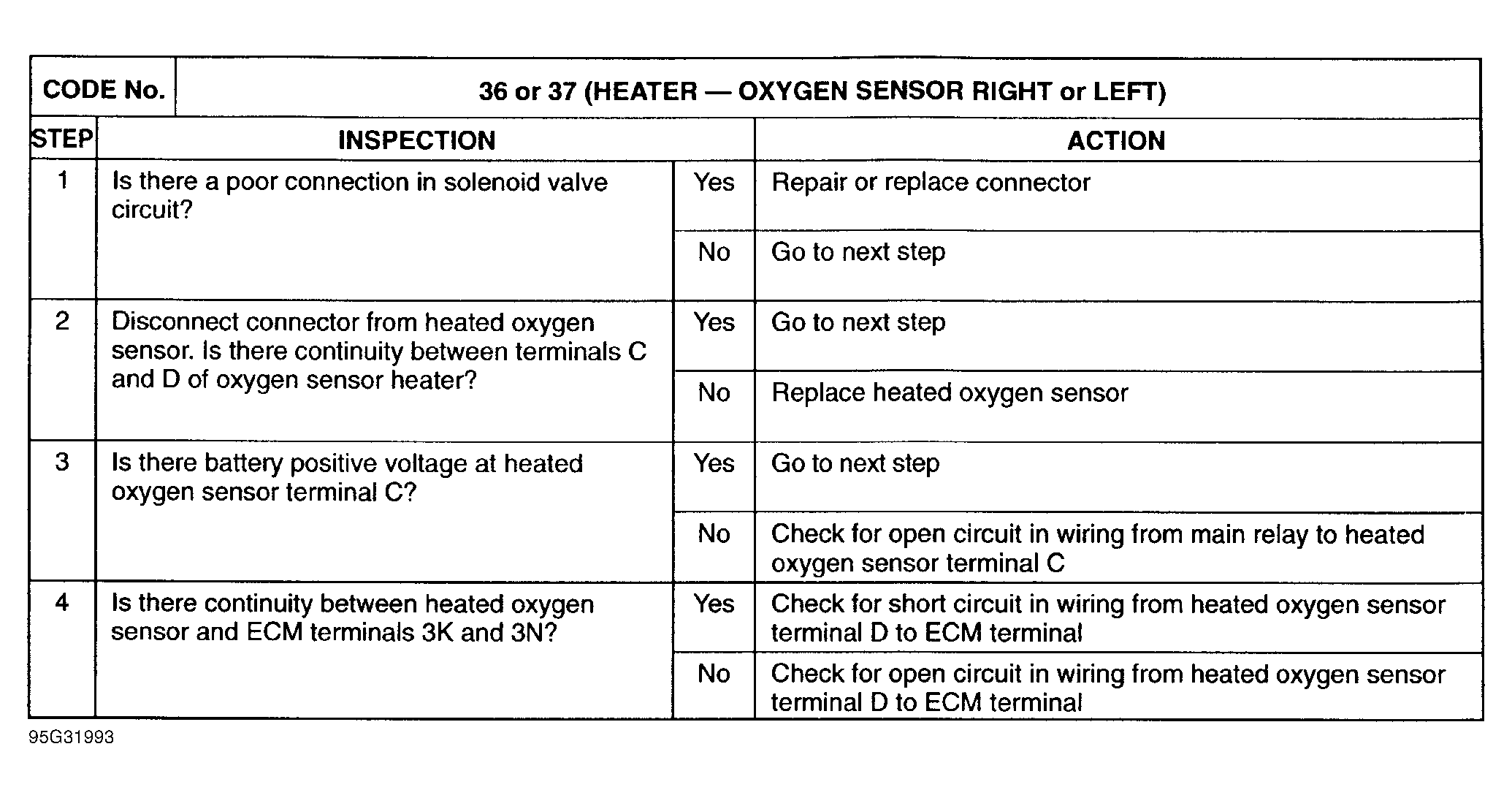

Fig 1: Trouble Code No. 36/37 Right/Left Oxygen Sensor Heater

G95G31993

Fig 2: Trouble Code No. 36/37 Heated Oxygen Sensor Circuit Diagram

G95I31979
