Code 29: EGR Vent Solenoid Valve

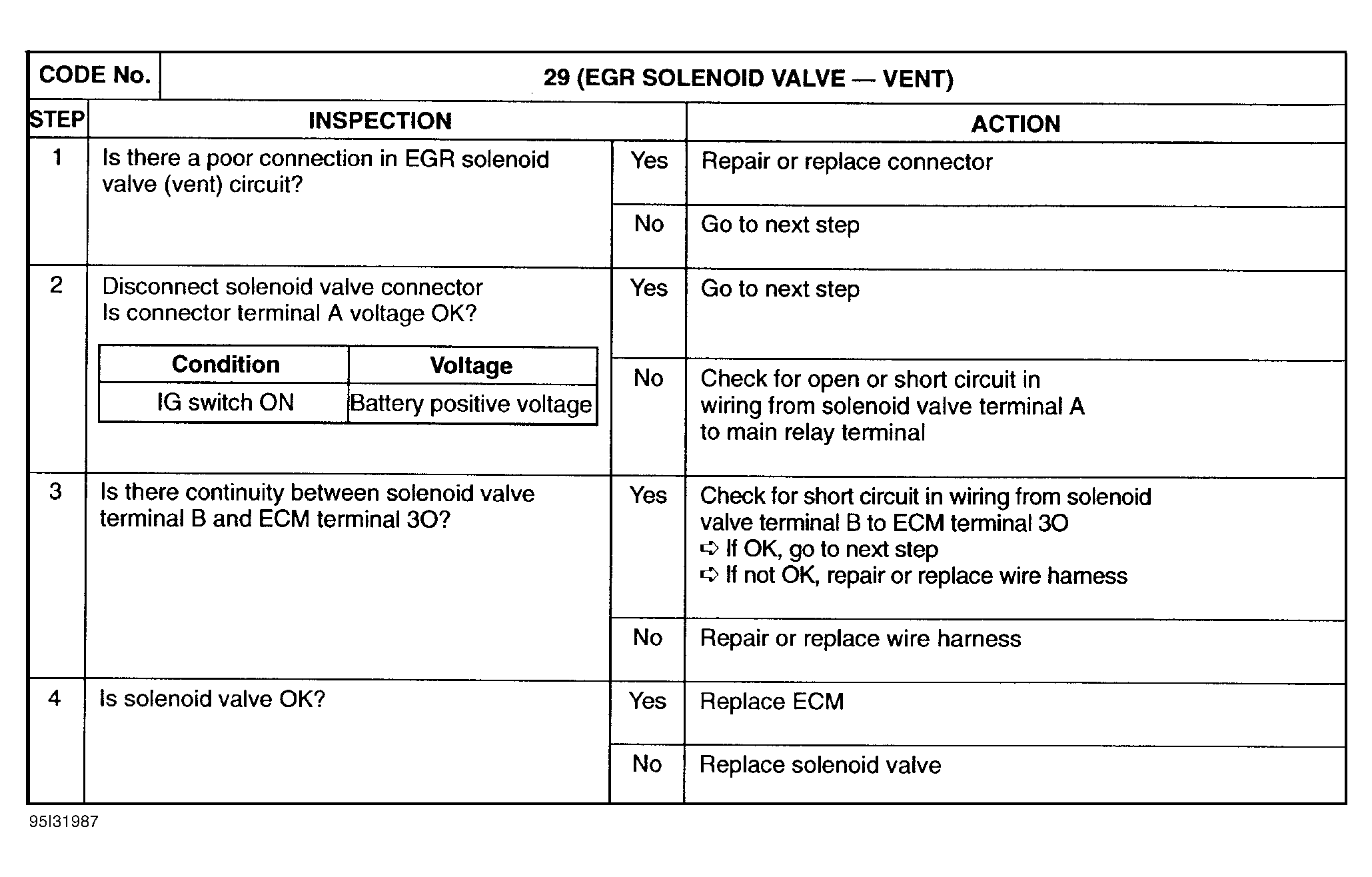

Fig 1: Trouble Code No. 29 EGR Vent Solenoid Valve

G95I31987

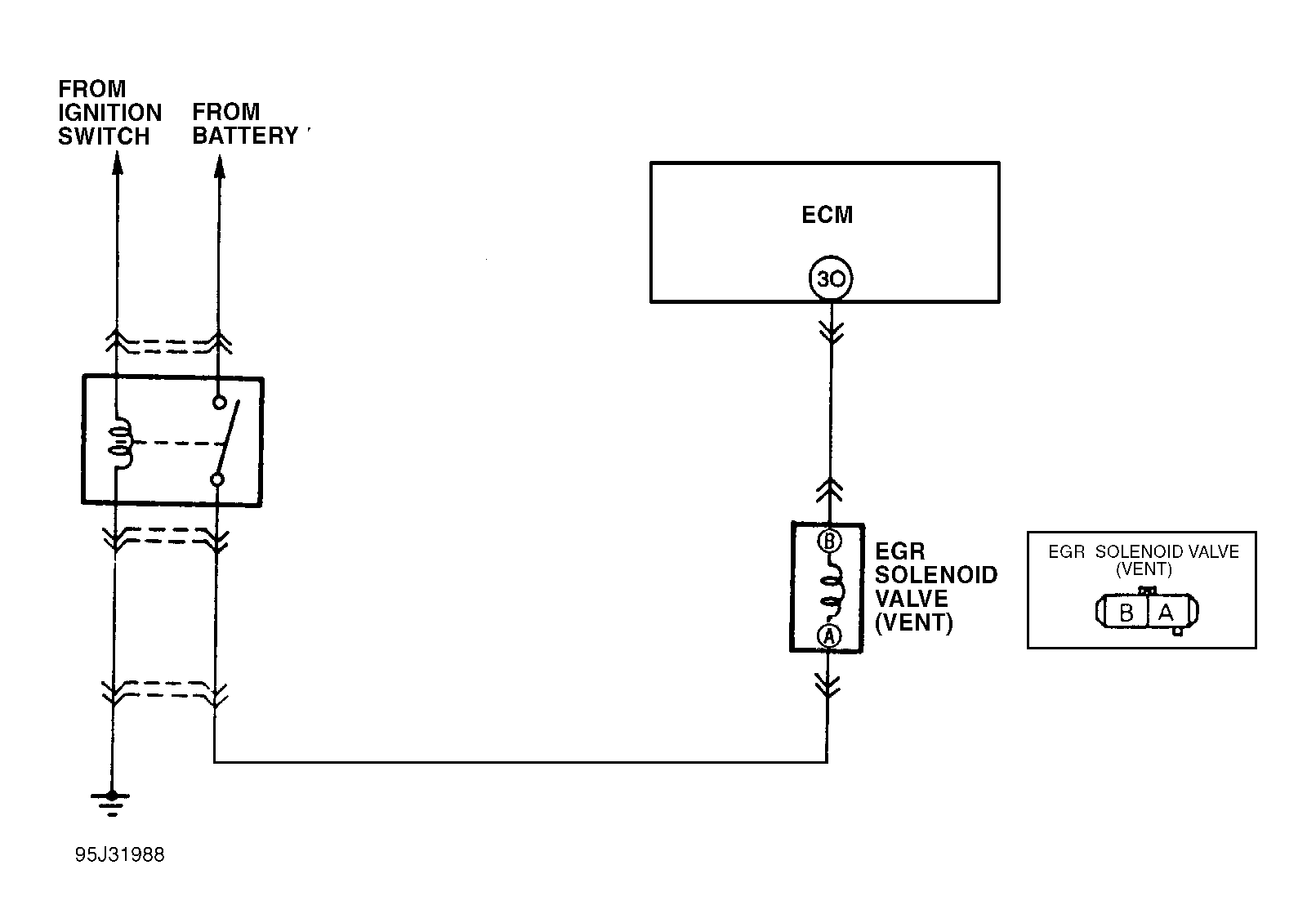

Fig 2: Trouble Code No. 29 EGR Solenoid Valve Circuit Diagram

G95J31988
