Code 28: EGR Vacuum Solenoid Valve

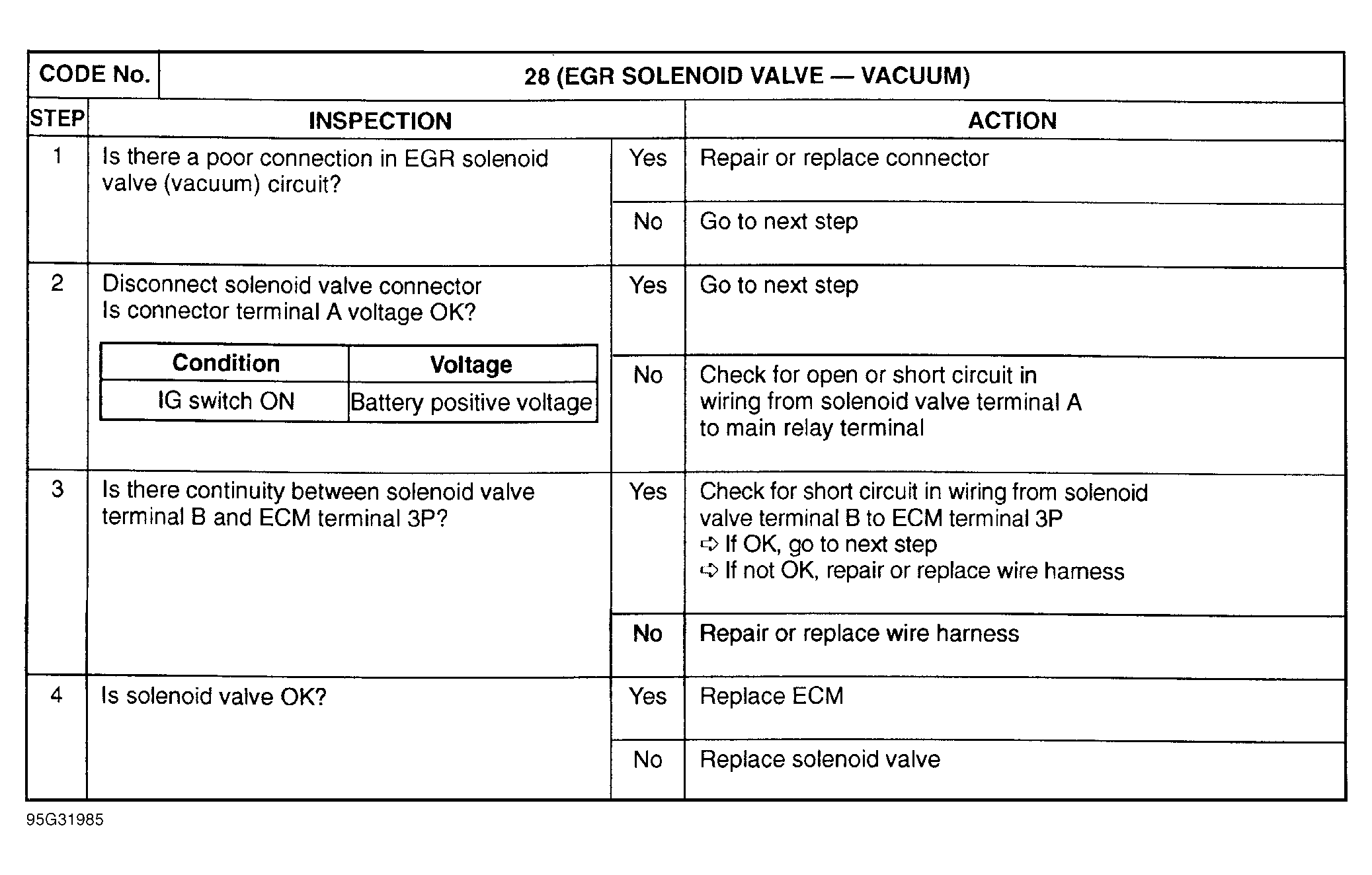

Fig 1: Trouble Code No. 28 EGR Vacuum Solenoid Valve

G95G31985

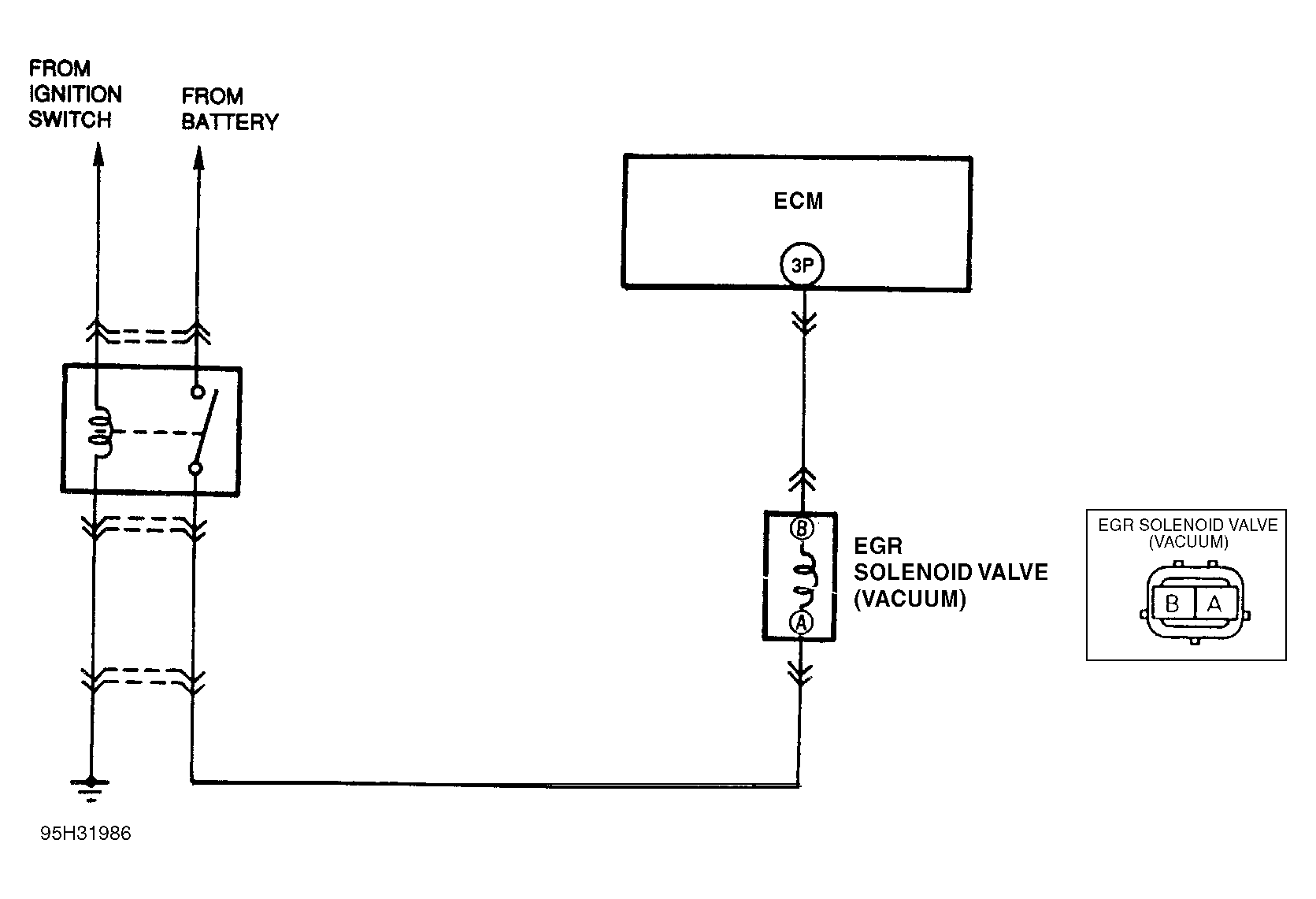

Fig 2: Trouble Code No. 28 EGR Solenoid Valve Circuit Diagram

G95H31986
