Home >> Mazda >> 1995 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> EGR Valve Position Sensor >> Testing and Inspection

EGR Valve Position Sensor: Testing and Inspection

Code 16:

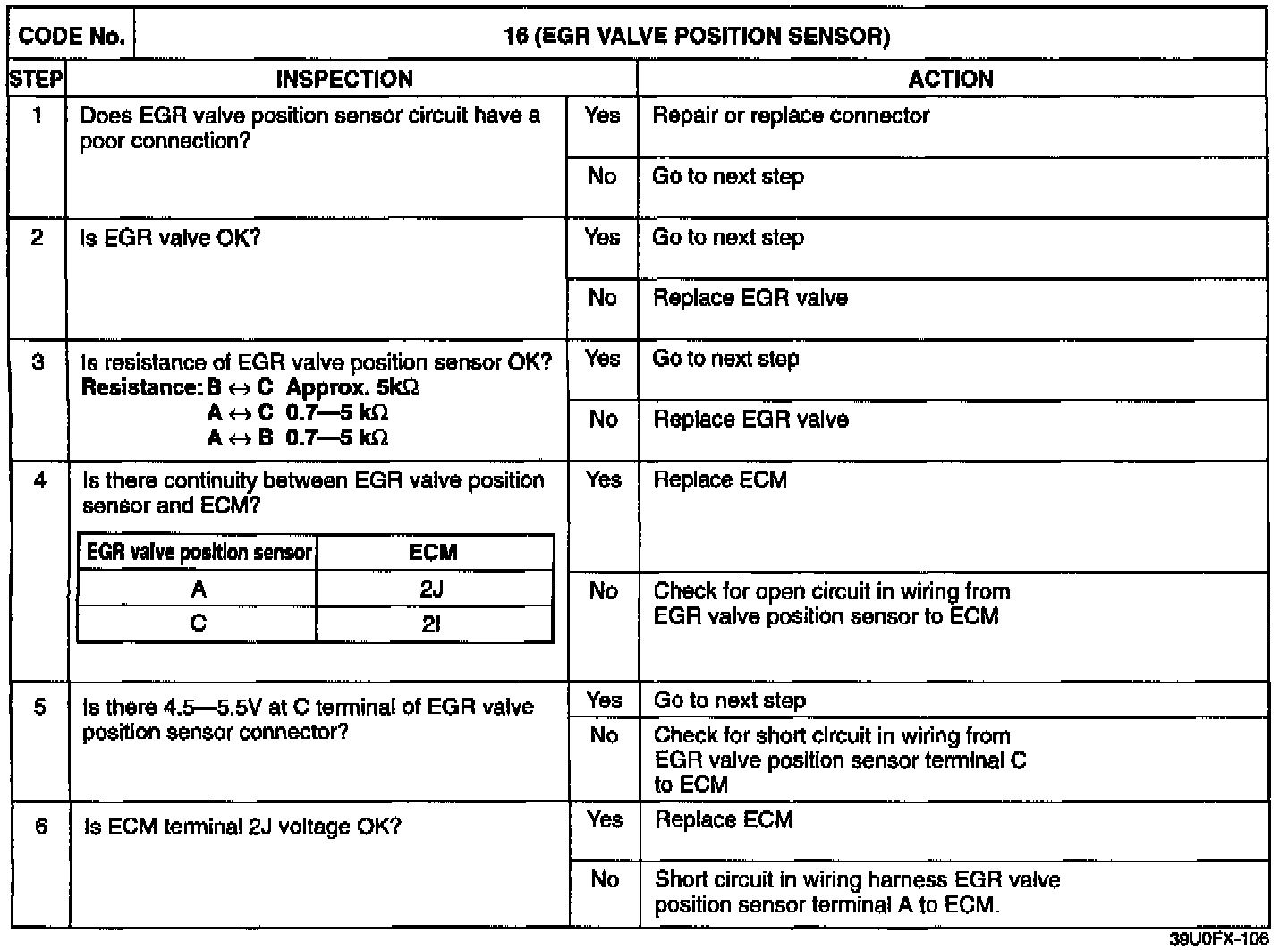

Diagnostic Chart




Circuit Diagram
