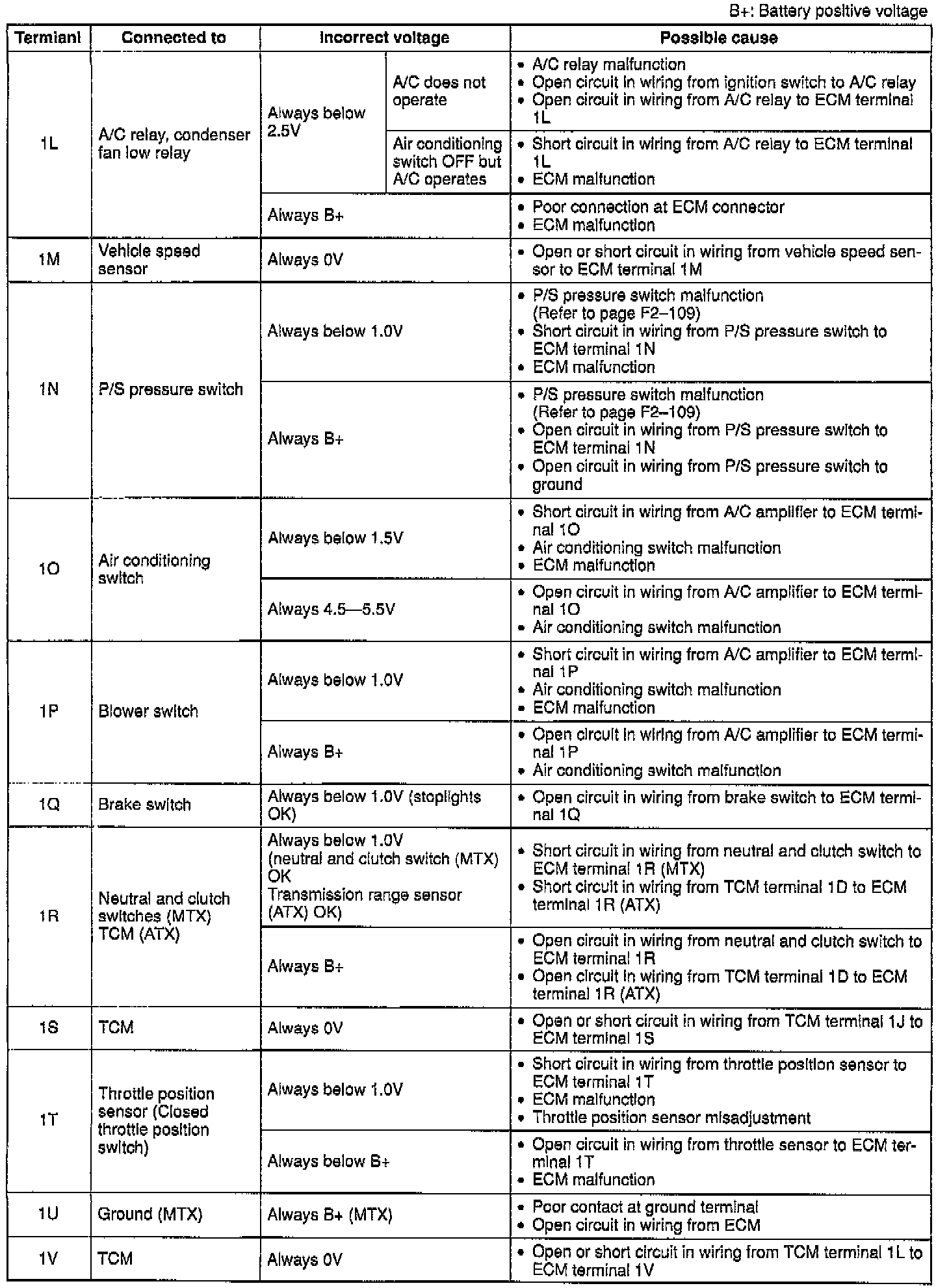

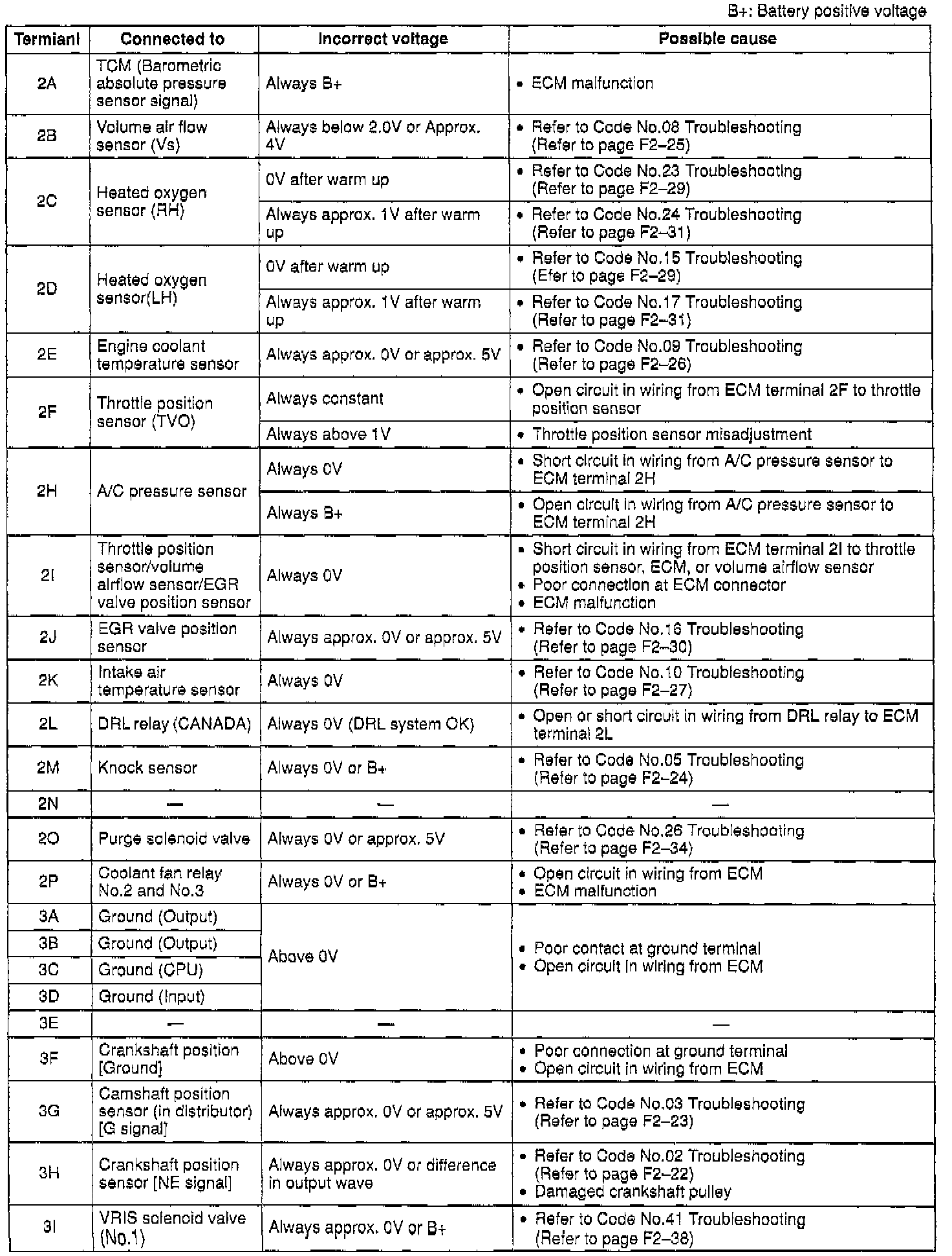

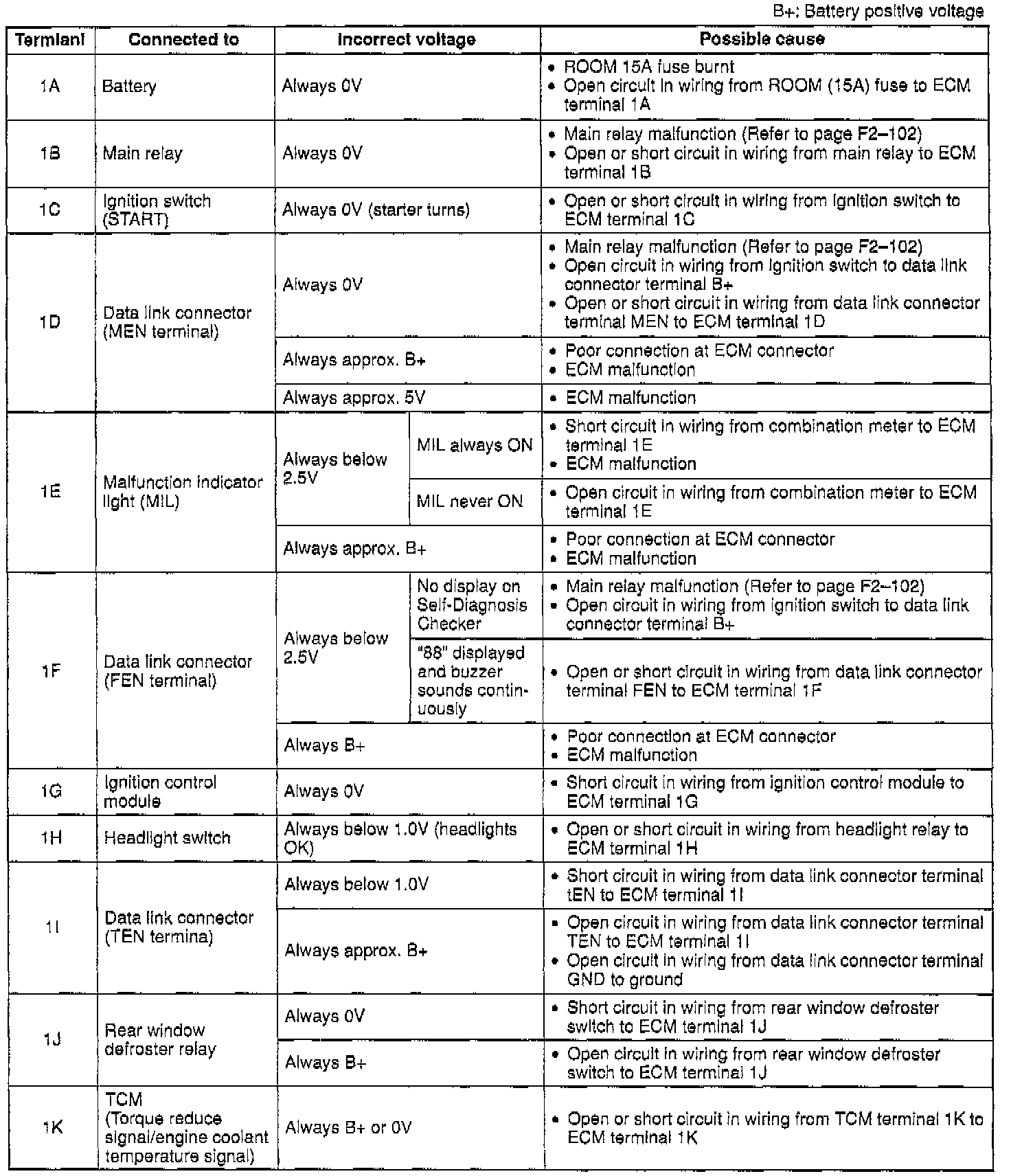

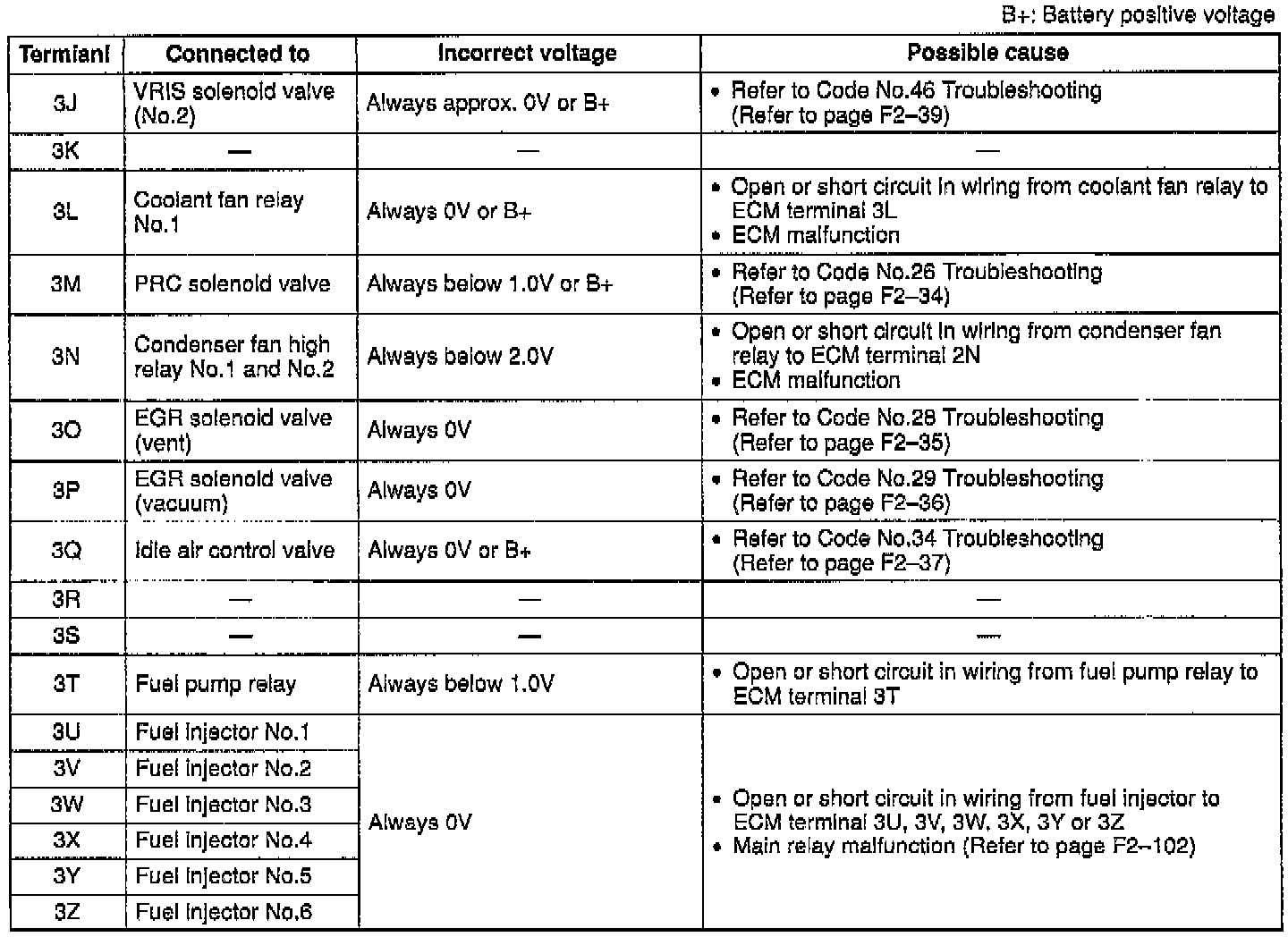

Home >> Mazda >> 1995 >> 626 V6-2496cc 2.5L DOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams
