Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Antitheft and Alarm Systems
>>
Terminals 4A-4L
Terminals 4A-4L

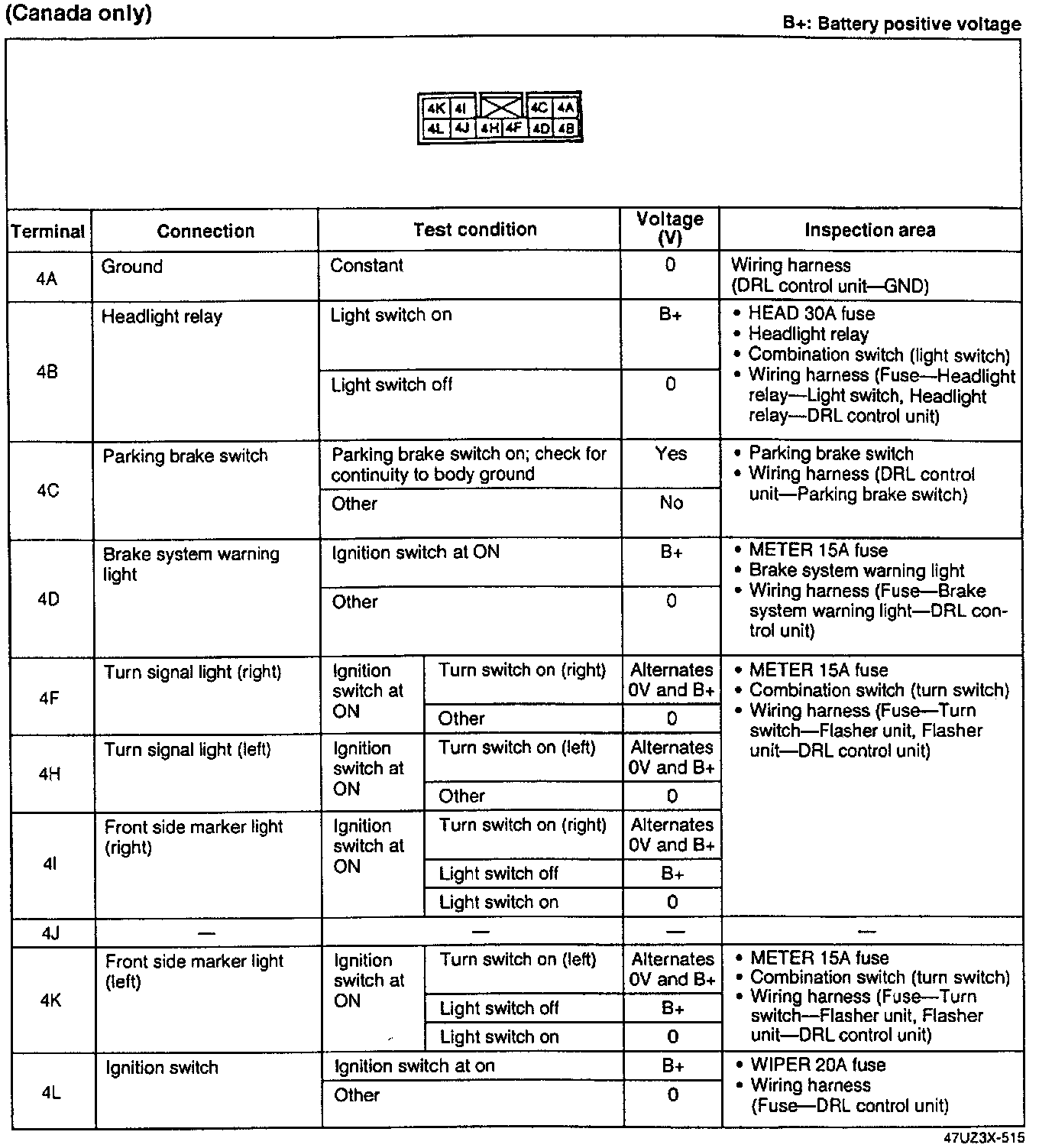

Terminal Voltage Charts (Canada Only):
