Mazda
>>
1994
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Antitheft and Alarm Systems
>>
Terminals 3A-3H
Terminals 3A-3H

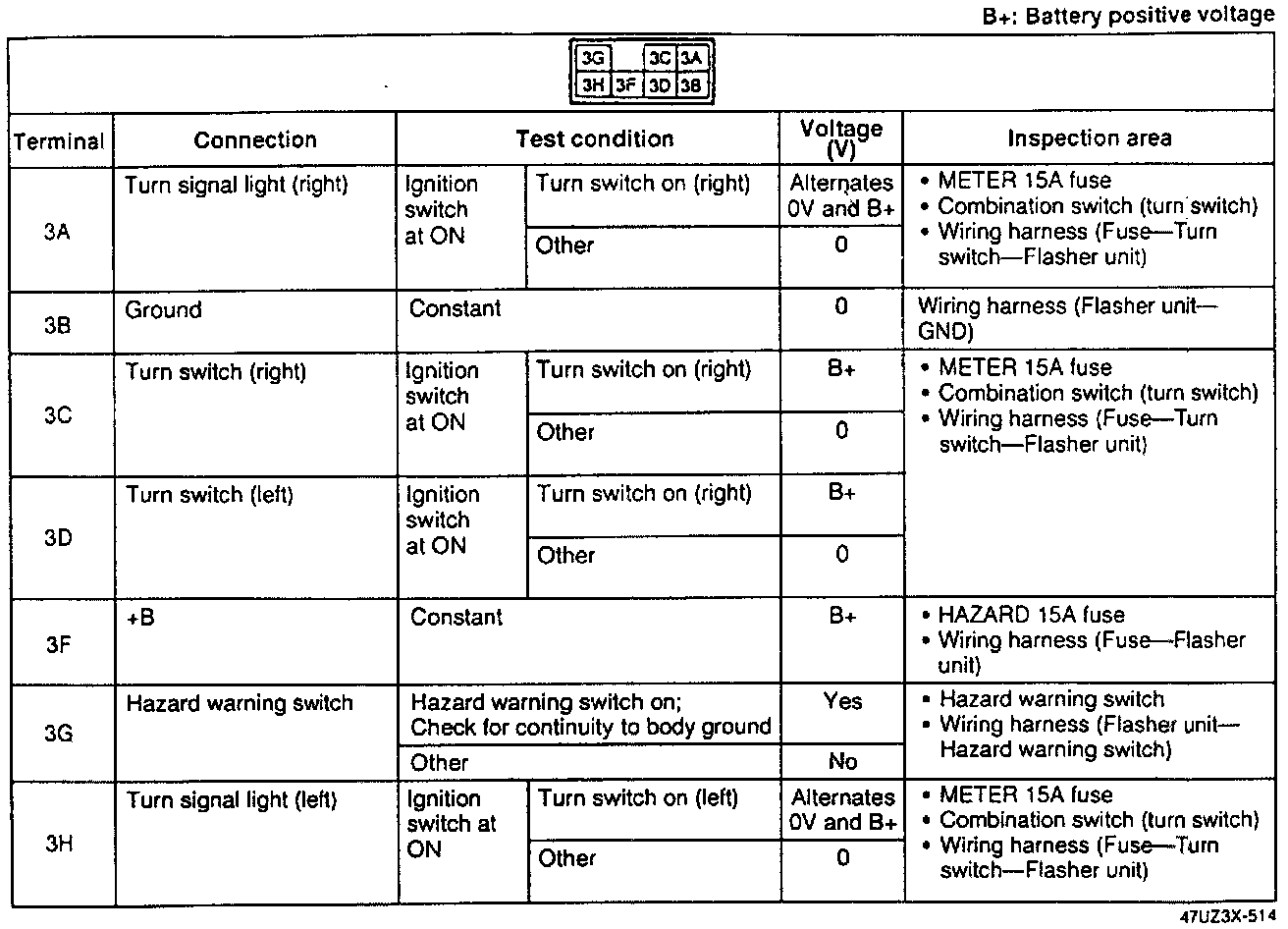

Terminal Voltage Charts:
