RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Antitheft and Alarm Systems
>>
Terminals 2A-2J
Terminals 2A-2J

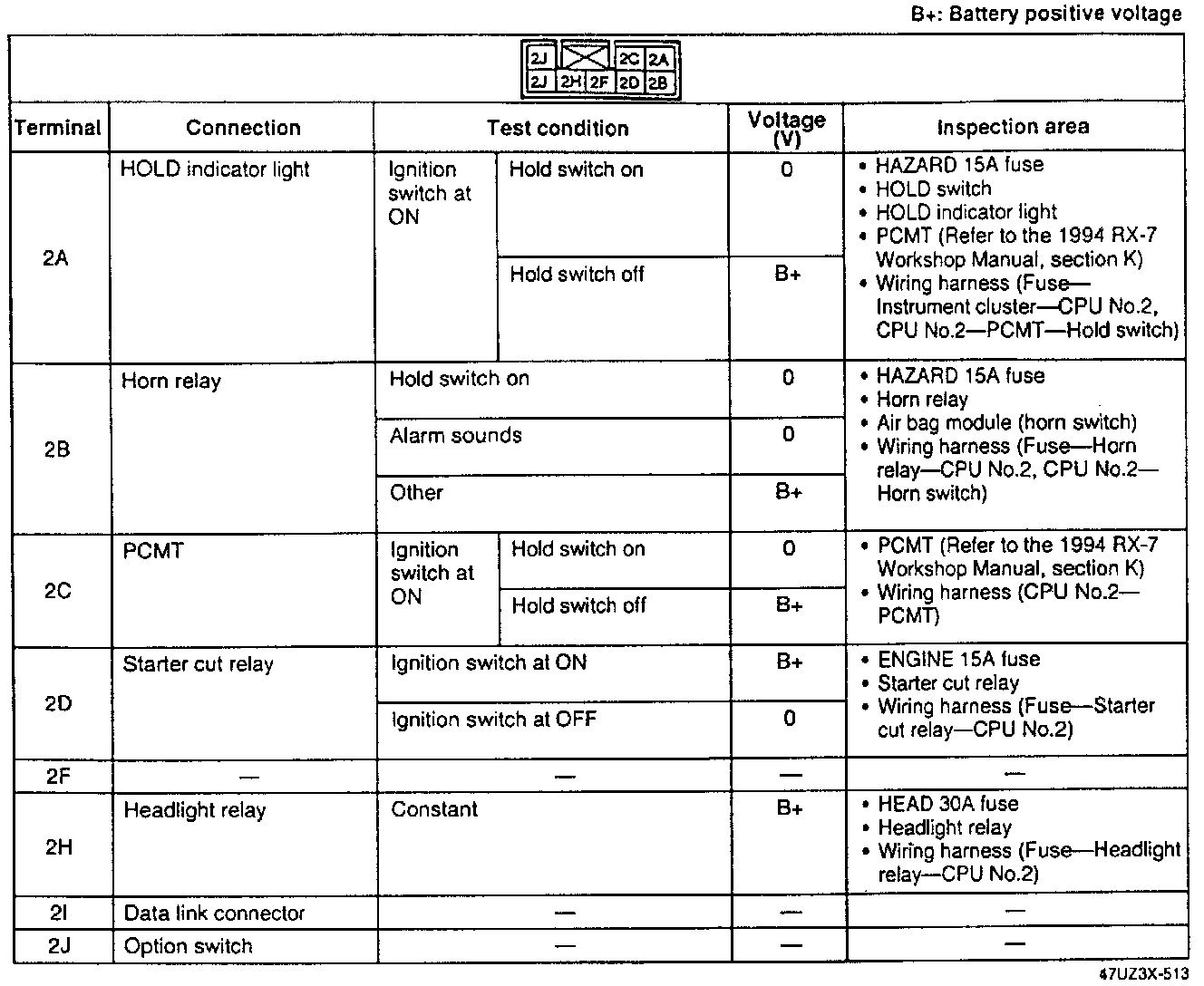

Terminal Voltage Charts:
