Mazda
>>
1994
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Antitheft and Alarm Systems
>>
Terminals 1O-2D
Terminals 1O-2D

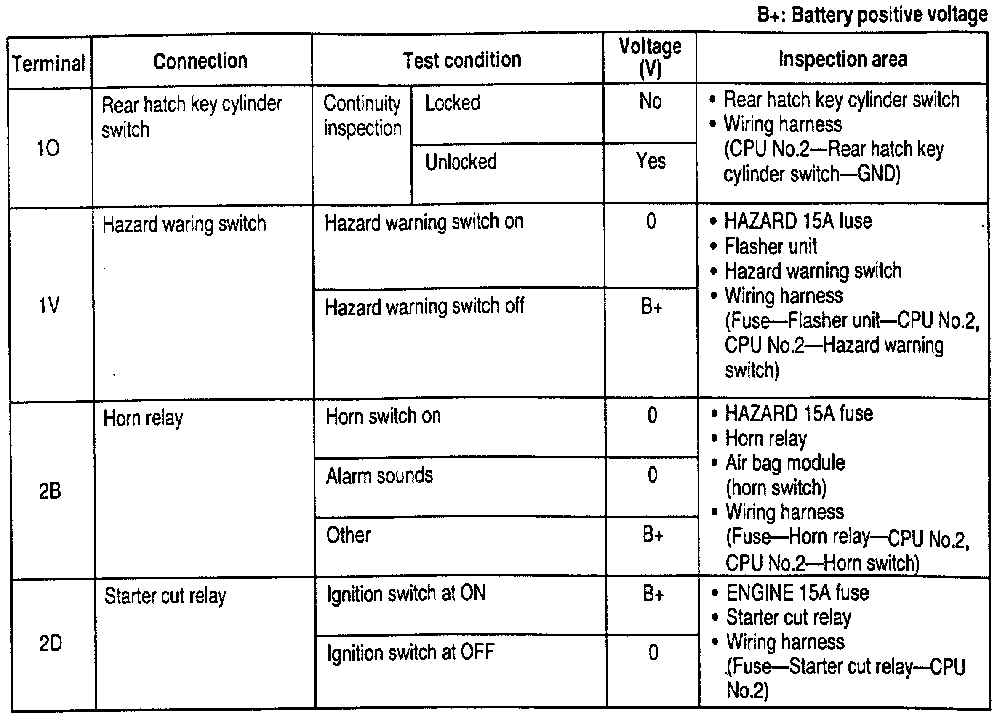

Terminal Voltage Charts:
