Ignition Coil: Testing and Inspection

INSPECTION

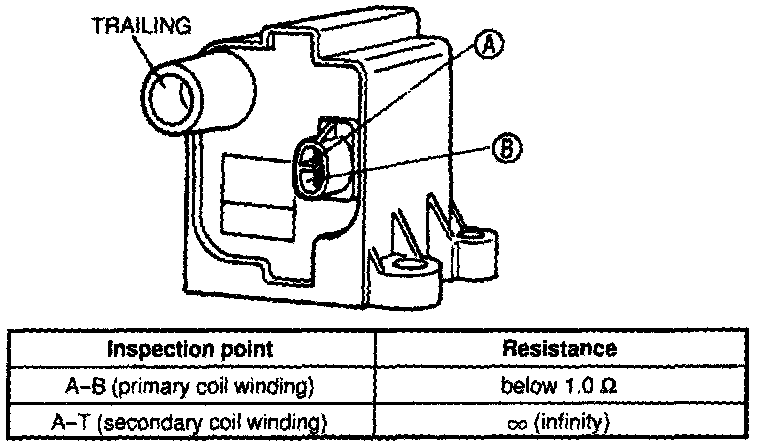

T (Trailing) Side
1. Measure resistance of the coil.
2. If not within specification, replace the ignition coil.

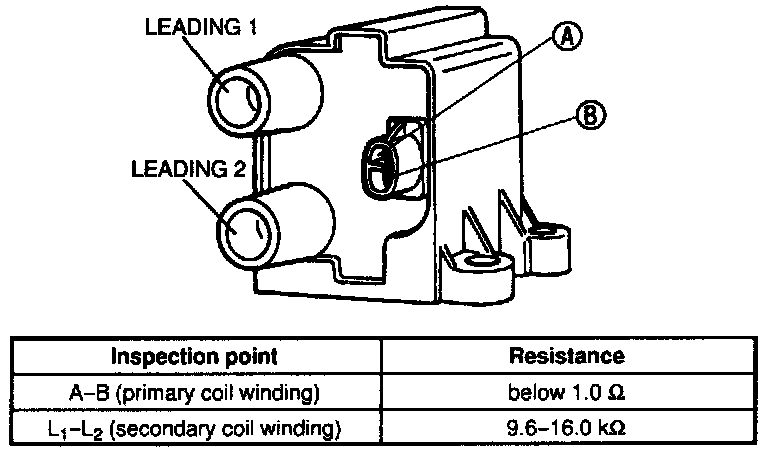

L (Leading) Side
1. Measure resistance of the coil.
2. If not within specification, replace the ignition coil.
